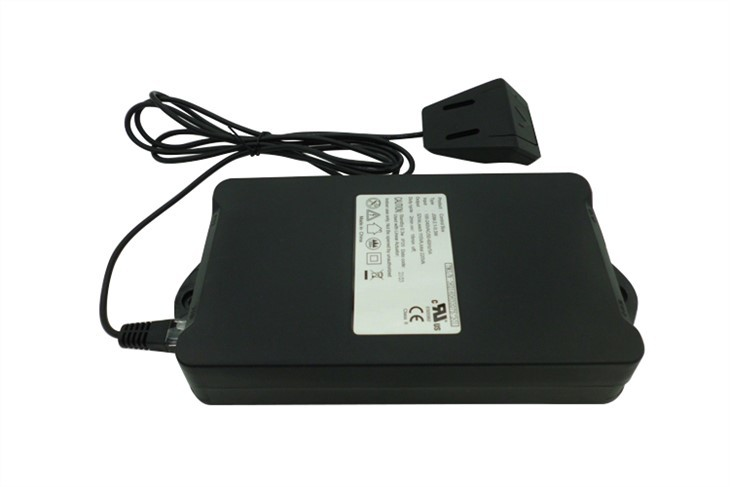

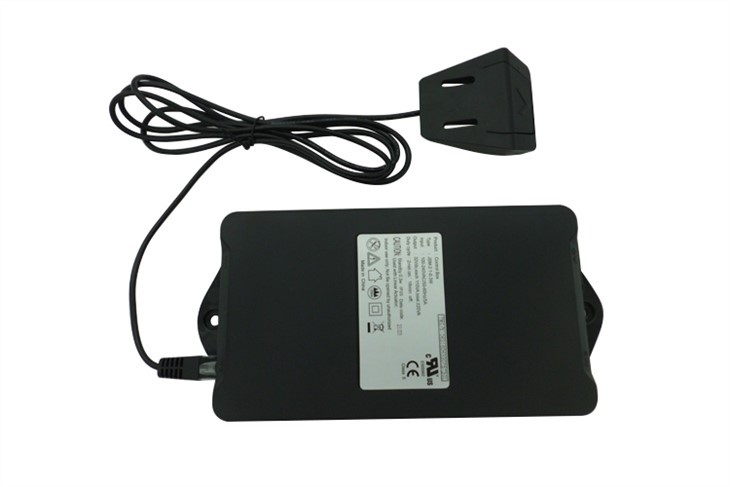

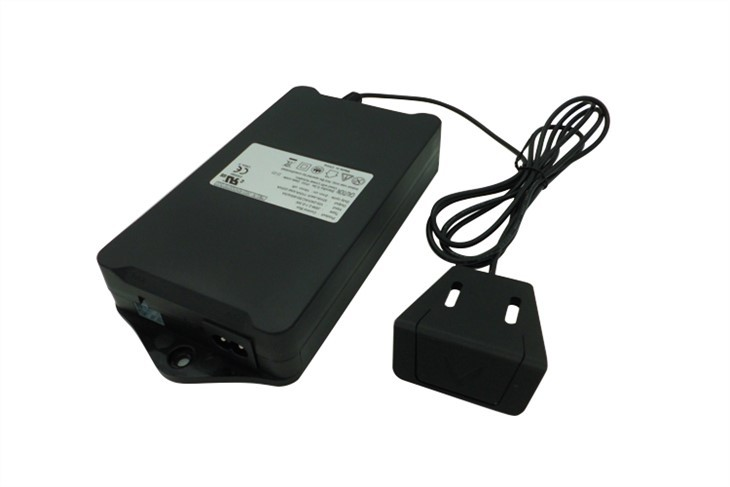

Basic property of Lift Up Desk Control Box
Type: JSM-2.1-0.3W
Input: 100-240V 50/60Hz, 5A
Output: 32Vdc, each 110VA, total 220VA
Maximum power: 350W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 400KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
10. Lift Up Desk Control Box can realize 100% simultaneity, 10,000 operations, 0 error on 2 columns
There are two buttons on this handset: one is downward button in the front; the other is upward button that is right on the opposite side of downward button.
Types of standing desk control box we produce:
Quality management concept
1. Quality embodies the value of companies and win respect of clients. It’s vital for the survival and development of enterprises.
2. We examine all raw materials randomly. Whenever defects happen, the entire batch must be examined. If incidence of defects surpasses 0.2%, the materials will be returned to suppliers and correction is required.
3. All products can not be released before finishing 2-hour aging test. We definitely don’t allow any products that fail ageing test to enter the market.
4. We disassemble and analyze all the defective products once they are returned from markets. We definitely don’t allow any products that need repair to enter the market.
Product testing
Jingshi has developed the fully automatic test system independently, which can be used to do product testing. It can evaluate the power supply and control parts of the control board comprehensively. The following contents can be detected :
1. If the output of the power supply is standard.
2. If there is anything wrong with the main power supply, such as with load, overload, over temperature, and short circuit
3. If the hardware sensors of each part of the control board are standard.
4. The control board can initialize desk legs, adjusting the desk upward and downward, etc.The system can quickly alarm through the buzzer, upon it detects any anomaly in the process of the automatic test.
Applications of Lift Up Desk Control Box:
Photos of company:
