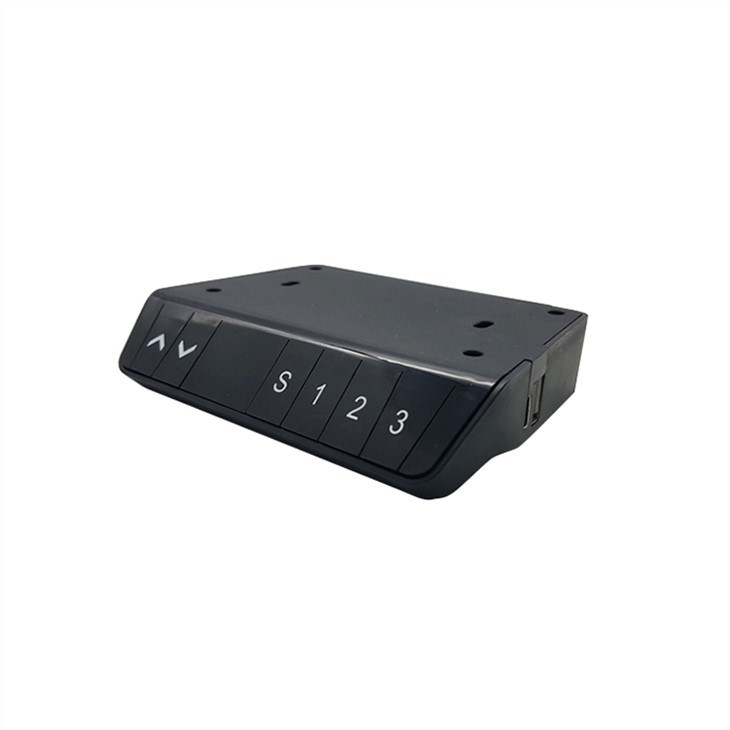

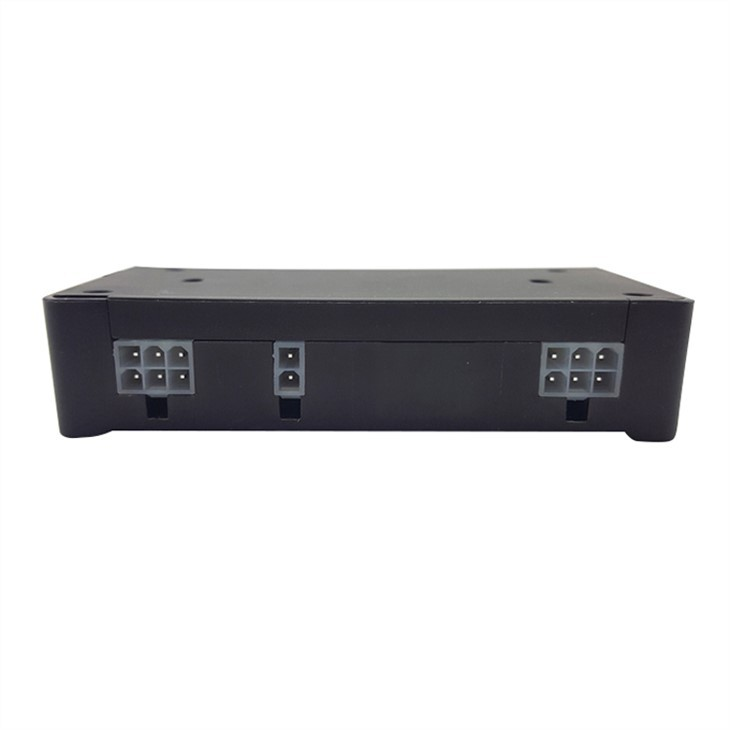

Sit Stand Desk Controller is the integration of lifting desk control box and hand control. In the front, there are 6 keys which make it can memorize 3 different heights, so it’s very easy to adjust the table to the height suitable for you. At the back, It can connect to motors just as common control boxes do. On the right, there are two ports allowing users to charge up cellphones or something.
Compared to other control boxes, obviously, it has an advantage of combining the functions both control boxes and hand control. This new product are creative and innovative.
protection functions of control boxes made by Jingshi Technology
protection functions automatically start when standing desk encounter cases of
motor open circuit, Hall fault,
motor short circuit, low voltage,
illegal power-off, illegal plugging and unplugging,
desktop tilt angle being too large,
top and bottom anti-pinch
Basic property
Input: 24-36V
Output: 12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Selling points
1. The chips we adopt are Infineon chips that are imported from Germany
2. The operating distance is precise to 1mm
3. 100% simultaneity, 10 thousand times of operations without any errors
4. Our products adopt the latest MOS conductor plan
5. The controller box can support the speed of 60mm per second
6. Noise of Sit Stand Desk Controller is minimum
Types of standing desk control box we produce:
Applications:
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.
