With self-developed technology of intelligent motion control, Jingshi company provides systematic solutions for a large number of intelligent terminal products that need drive, and provides businesses with cost-effective products and services. The linear drive control box we produced is widely used in the fields of brush motors and brushless motors, such as lifting desks, garden tools, medical beds and massage chairs. According to ergonomics and customers’ needs, customized software is available here, which enables users to manage the entire system through software programs, achieving the expected various movements.

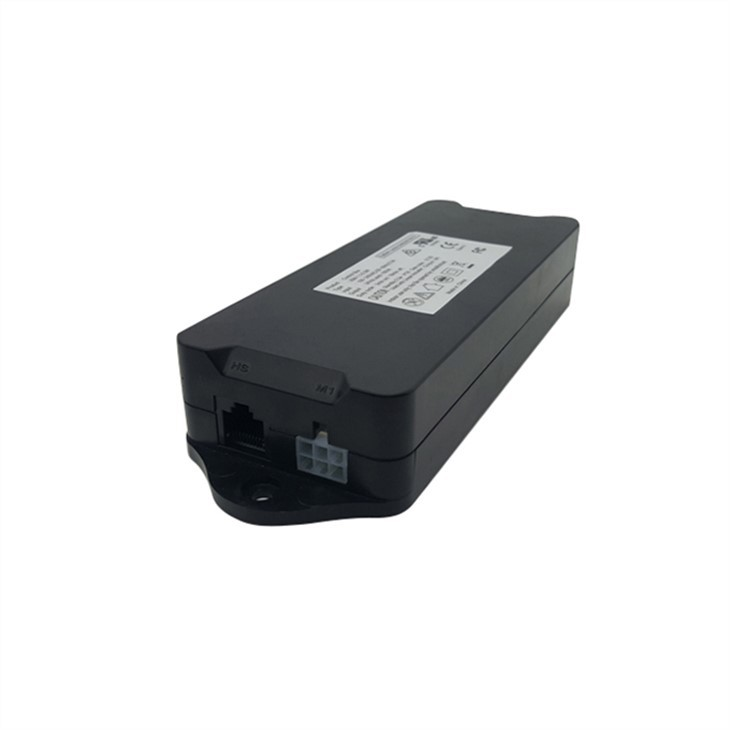

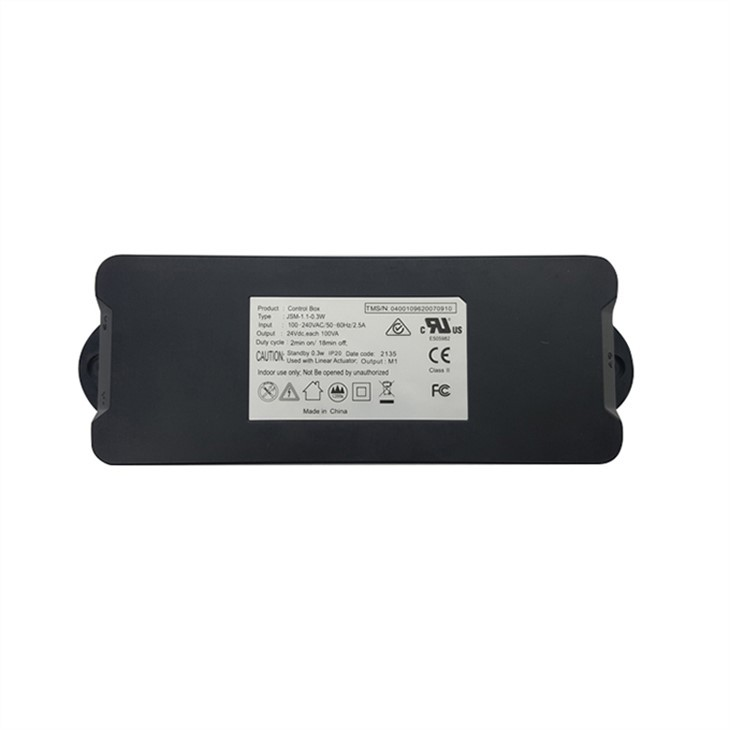

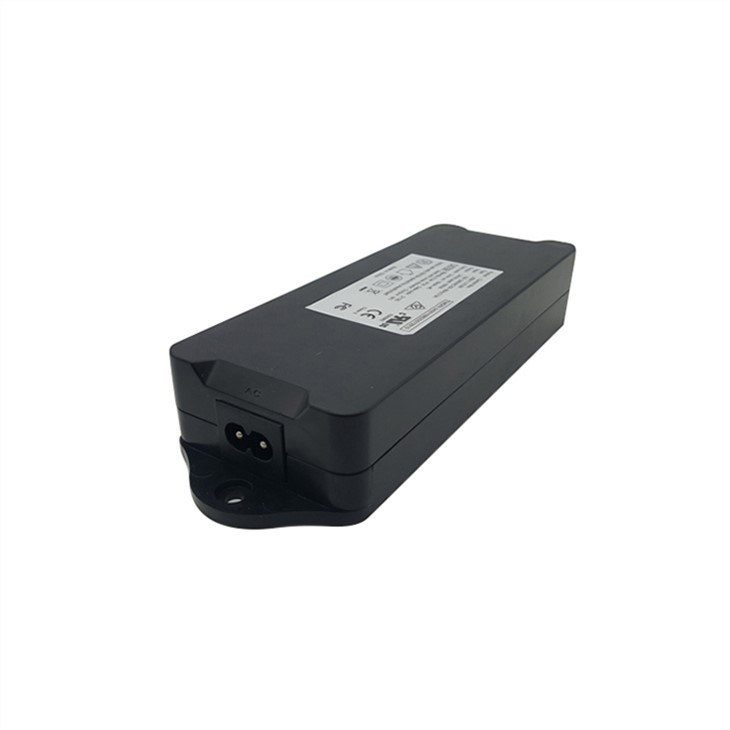

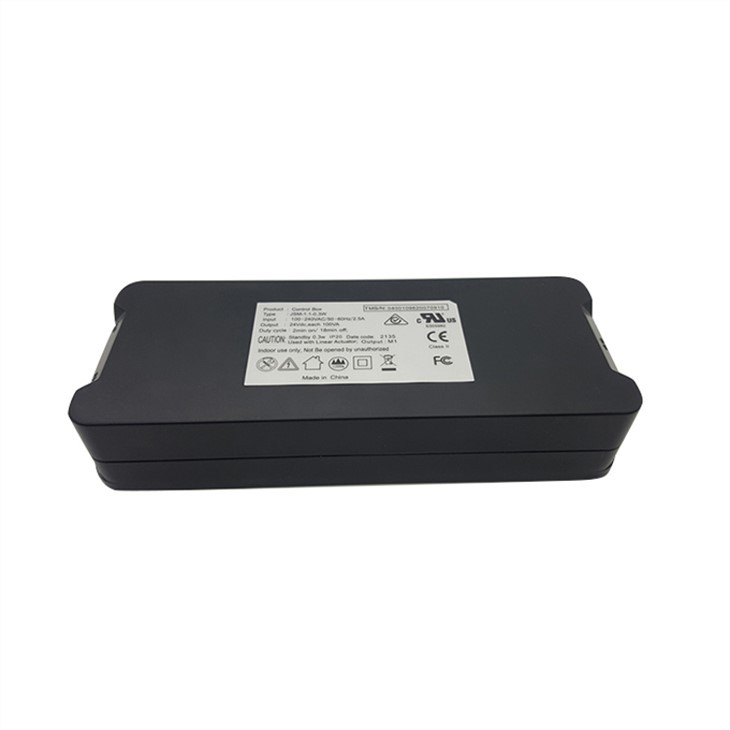

Basic property of Adjustable Desk Controller

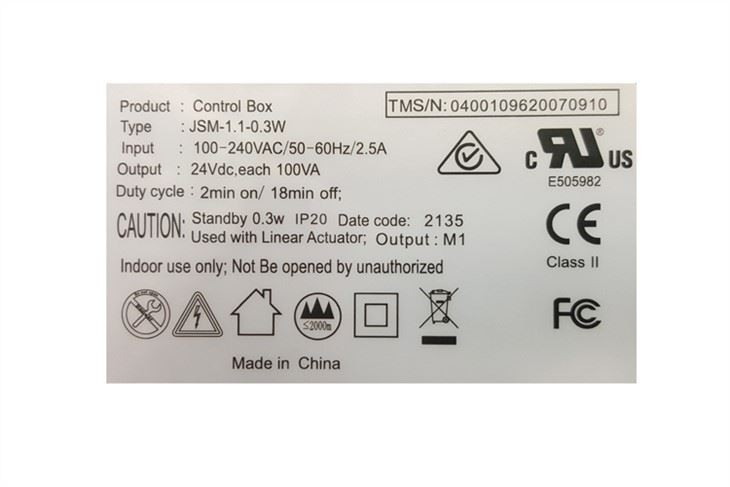

Maximum power: 150W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions of Adjustable Desk Controller
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 200KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
Types of standing desk control box we produce:
Applications of Adjustable Desk Controller:
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.
Unknown application areas:
The linear drive system can be customized and developed according to customer requirements.
