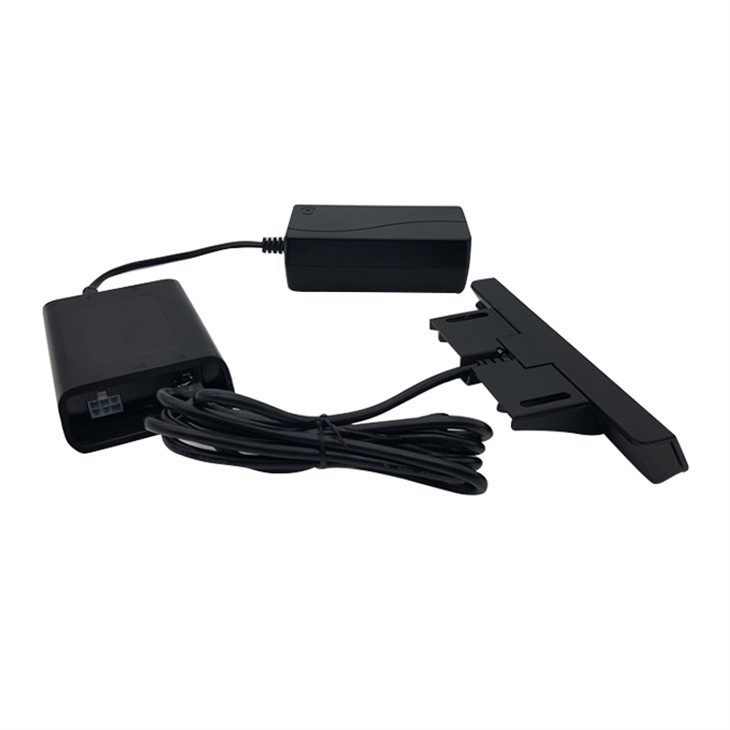

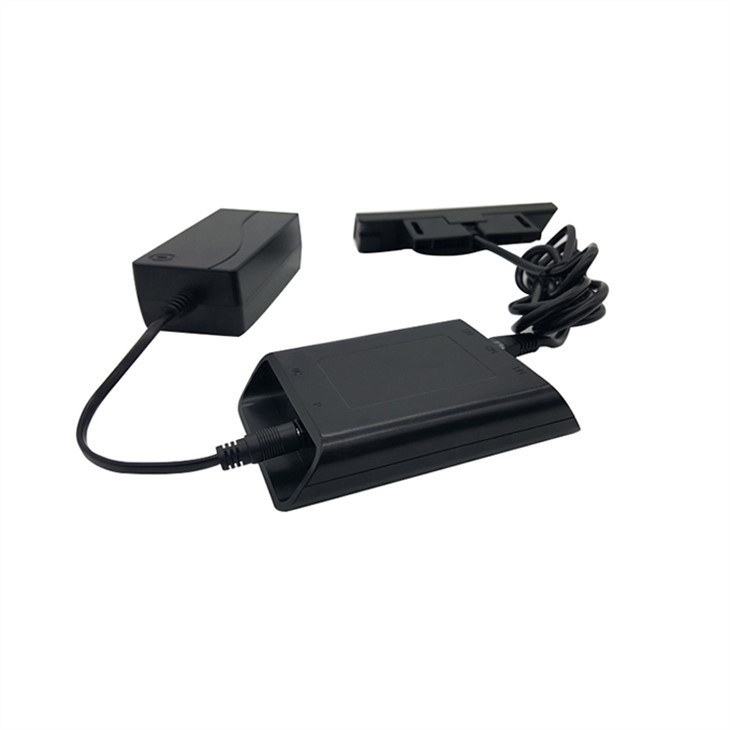

Basic property of Smart Adjustable Desk Controller
Input: 24-36V
Output:12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Functions
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 200KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it's not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
Description of Smart Adjustable Desk Controller Adapter:
1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Product size: 10.5*5.5*3.5cm
OEM: OEM customization

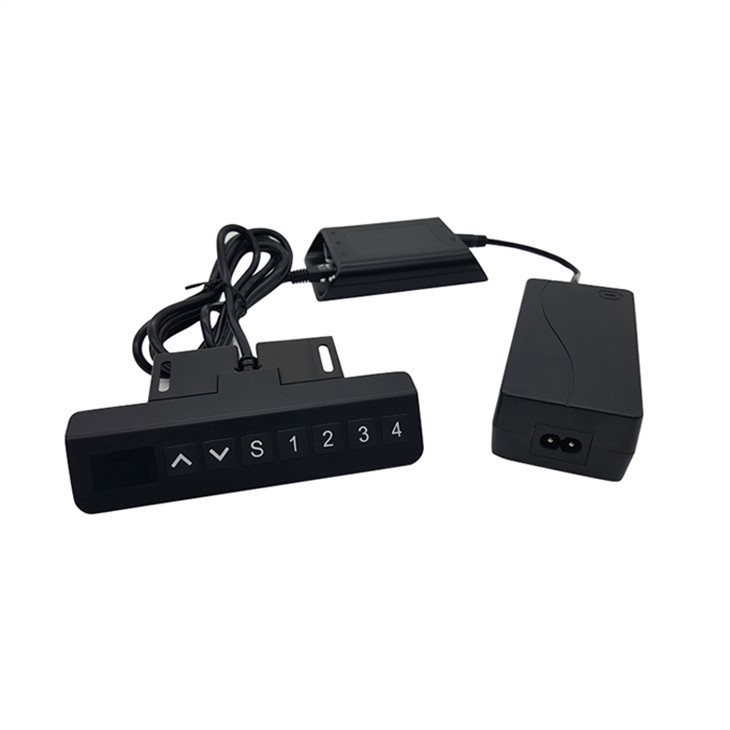

Button Type Standing Desk Hand Controller holds an advantage of 7 buttons, able to memorize 4 different heights. So it’s extremely convenient to adjust the desk to meet your various needs. There is a USB interface on the side enabling users to charge up.
Types of standing desk control box we produce:
Applications
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.
Unknown application areas:
The linear drive system can be customized and developed according to customer requirements.
Company related introduction:
In 2014, Jingshi Technology began to cater to customers and tailor the development of the lifting table control system, serving customers in a point-to-point manner.
In 2017, Hangzhou Jingshi Technology Co., Ltd. was founded.
In 2018, Changxing Jingshi Technology Co., Ltd. was founded.
Based on 6 years of technical experience accumulation, Jingshi Technology has developed generation1, 2, 3 control systems which feature small size, full voltage and high power. The product performance and stability have been consistently praised by customers. In the future, we will continue to invest a large amount of fund in the research and development of new products in the field of lifting tables.
Contact us for more information about Smart Adjustable Desk Controllers.
