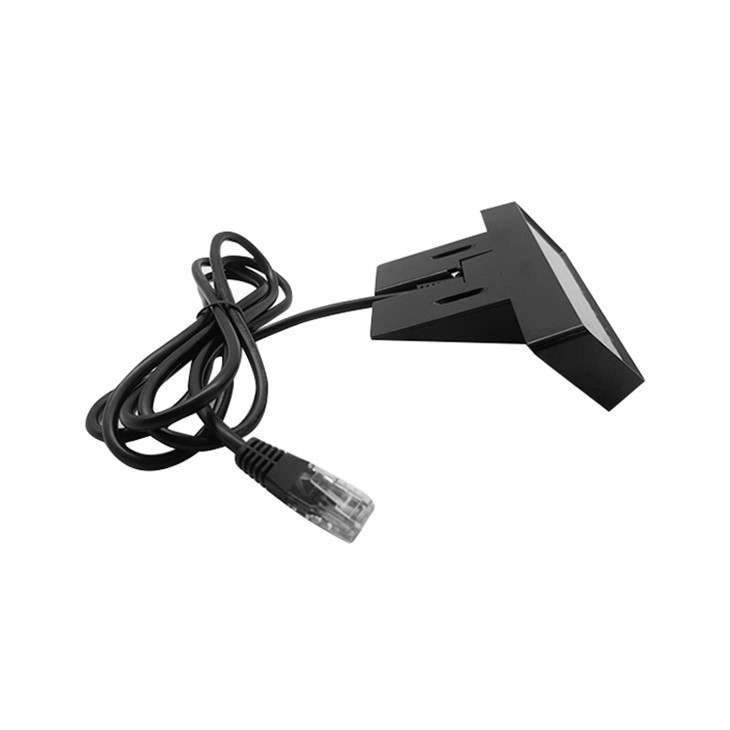

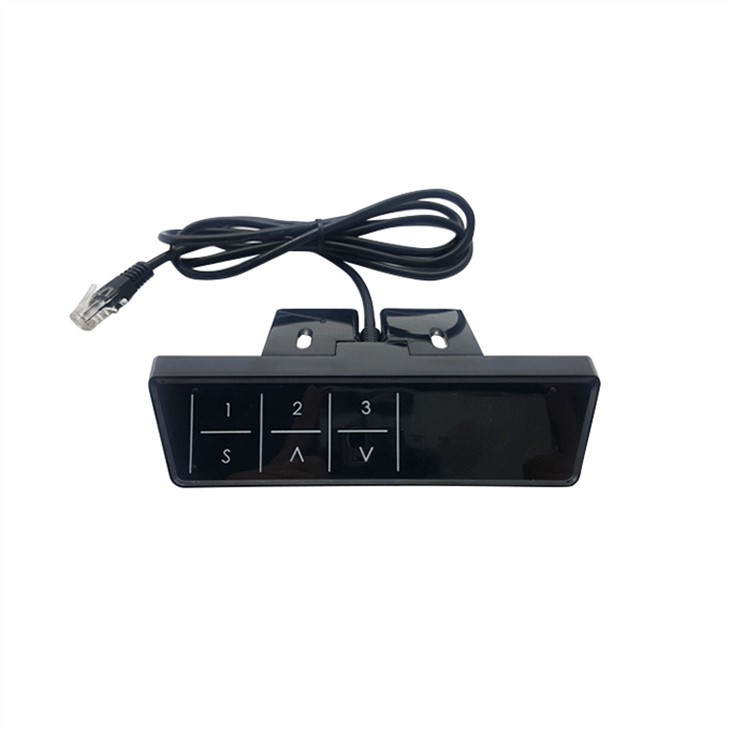

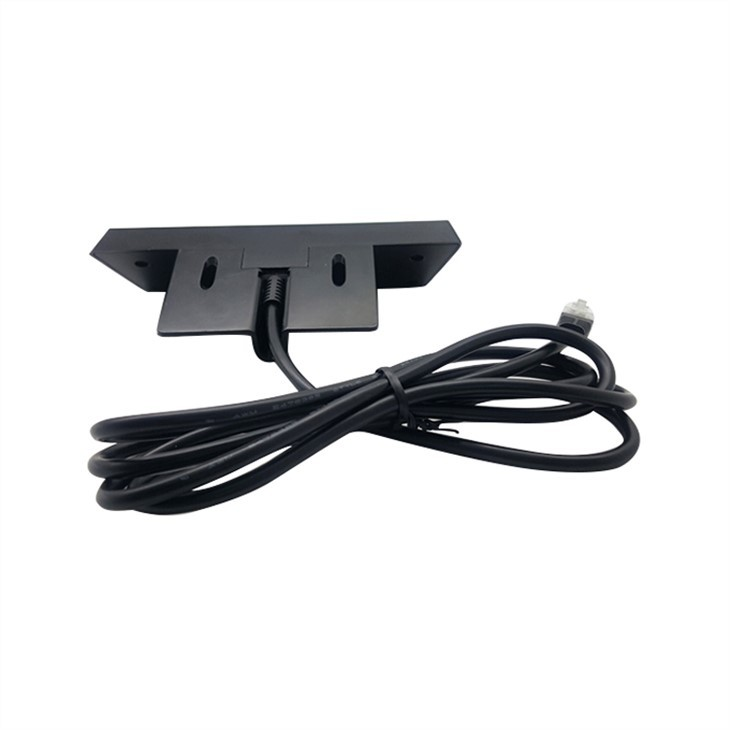

Advanced Digital Memory Keypad belongs to touch-screen hand control, holding an advantage of 6 buttons, able to memorize 3 different heights. So it’s convenient to adjust the desk to meet your various needs. Pressing upward or downward button, you can get your desk up or down at your will. Pressing button S then button No.1, button No.1 will memorize the present height, so pressing No.1, the desk will return to the height you saved. Buttons of No.2,3 are the same. Whenever pressing button S and a button marked number, the memory will be refreshed.
Our products have acquired many global certificates including CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
A switch panel mainly contains internal PCB and external shell. After all design work is done, our engineer will make a few samples first.
Our engineer solders resistors of different specification on the PCB according design drawing. Resistors are very tiny, so she uses tweezers to pick each resistor from the box. The box in the third picture is flat and is divided into many small grids. Each grid has a cover, so when you use a kind of resistor, just open its cover leaving other resistors concealed.
After she completes soldering resisters, she needs to solder springs and digital tubes as well as USB port.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Applications of Advanced Digital Memory Keypad:
Our company:
Company related introduction:
Jingshi Technology owns two firms, Hangzhou Jingshi Technology and Changxing Jingshi Technology. The former was founded in 2017, and the later was founded in 2018. While Hangzhou Jingshi Technology is mainly responsible for product advancement and innovation, Changxing Jingshi Technology takes the responsibility of purchasing raw material, manufacturing products and delivering goods.
