| Quantity: | |
|---|---|
JSM-2.1-0.3W
JS
8537109090

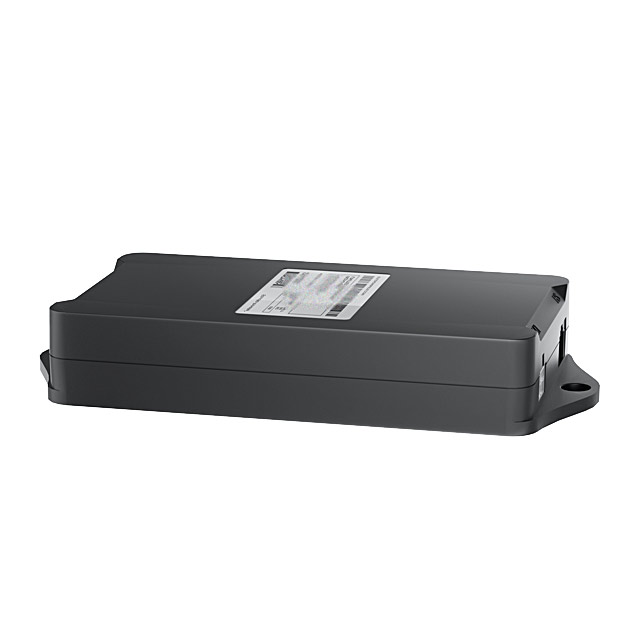

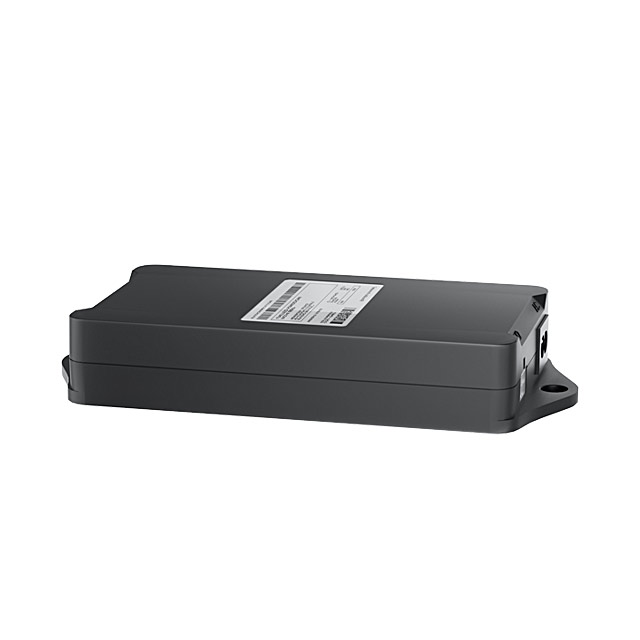

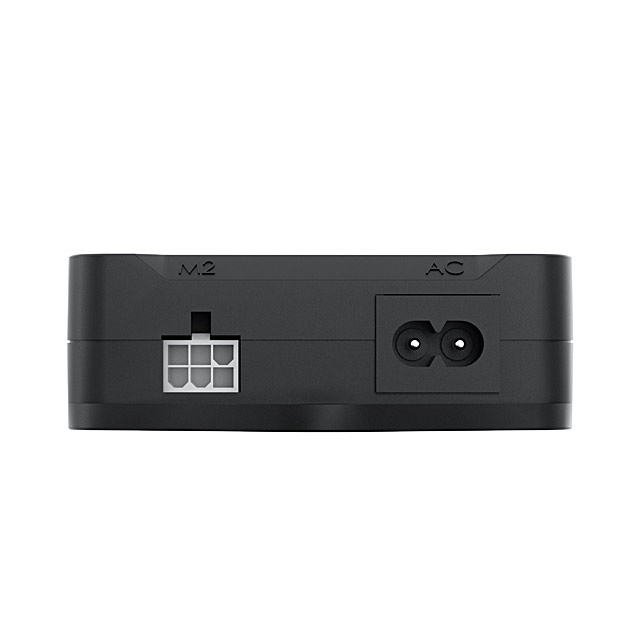

Model JSM-2.1-0.3W
● Input 100-240V 50/60Hz, 5A
● Output 32Vdc, each 110VA, total 220VA
● Maximum power 350W
● Standby <0.3W
● Operating mode: 2mins on/18mins off
● Product Solution MOS conductor
● Global approvals CE FC UL
Dual motor electric standing desk controller function introduction
1、Using MOS tube programme, and with gyroscope
2、With reverse braking function, load 400KG does not decline
3、5KG high-precision collision protection, no malfunctioning.
4, left and right imbalance protection
5、Walking 10000 times, the height of the two legs zero error
6、No-load can run continuously for 20 minutes without protection.
7、System parameters can be modified using PC software
8、Updating the programme does not need to dismantle the shell, does not need AC power supply.
9, up to 30 error codes are very convenient to find the system problems
Dual Motor Electric Lift Table Controller Product Features
1, Germany imported chip - Infineon;
2、Running distance is accurate to 1MM;
3, 100 per cent synchronisation, running 10,000 times, 2 columns zero error;
4, low standby power consumption, standby power consumption is less than 0.3W
5, using the recent MOS tube programme
6, can support 60MM / S speed
7, low noise
Model JSM-2.1-0.3W
● Input 100-240V 50/60Hz, 5A
● Output 32Vdc, each 110VA, total 220VA
● Maximum power 350W
● Standby <0.3W
● Operating mode: 2mins on/18mins off
● Product Solution MOS conductor
● Global approvals CE FC UL
Dual motor electric standing desk controller function introduction
1、Using MOS tube programme, and with gyroscope
2、With reverse braking function, load 400KG does not decline
3、5KG high-precision collision protection, no malfunctioning.
4, left and right imbalance protection
5、Walking 10000 times, the height of the two legs zero error
6、No-load can run continuously for 20 minutes without protection.
7、System parameters can be modified using PC software
8、Updating the programme does not need to dismantle the shell, does not need AC power supply.
9, up to 30 error codes are very convenient to find the system problems
Dual Motor Electric Lift Table Controller Product Features
1, Germany imported chip - Infineon;
2、Running distance is accurate to 1MM;
3, 100 per cent synchronisation, running 10,000 times, 2 columns zero error;
4, low standby power consumption, standby power consumption is less than 0.3W
5, using the recent MOS tube programme
6, can support 60MM / S speed
7, low noise
