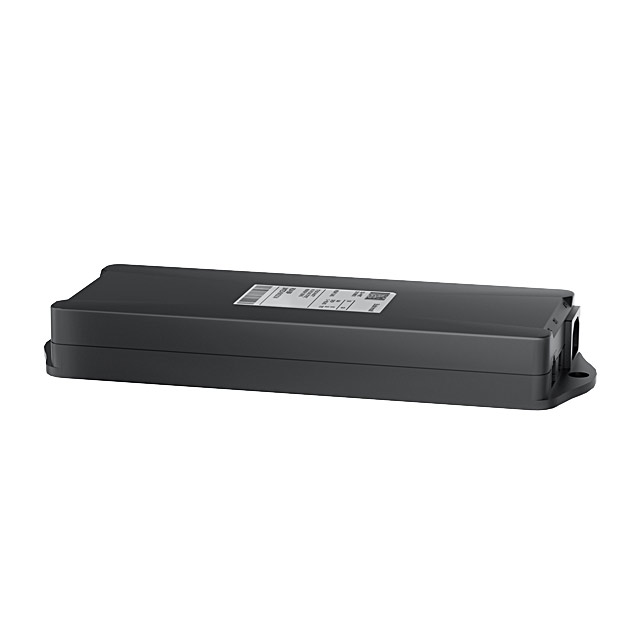

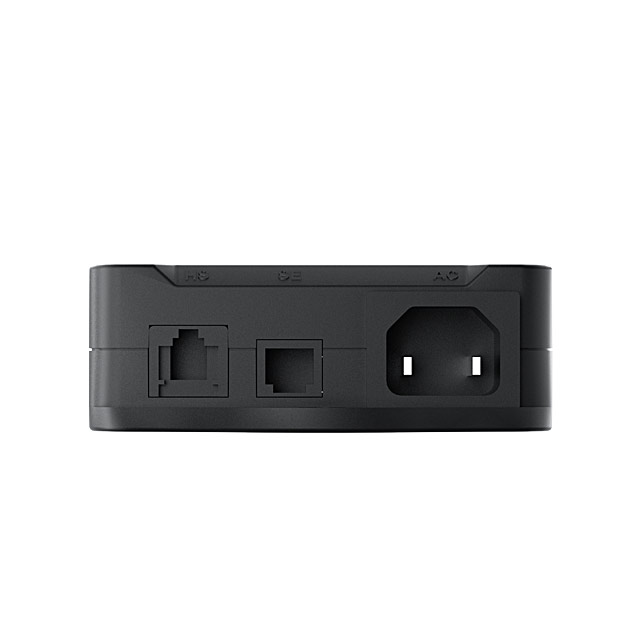

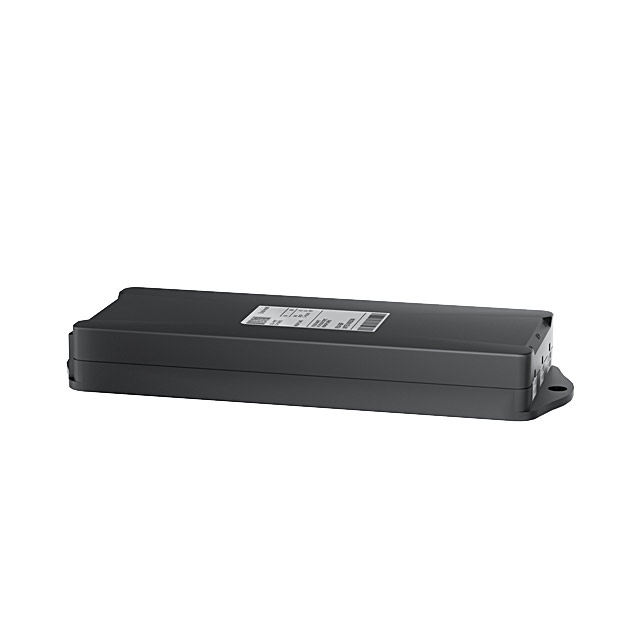

TA12 Triple Motor Control Box

5 0 Reviews
Model JSM-3.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 24Vdc, each 110VA, total 330VA
Maximum power 450W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • JSM-3.1-0.3W

  • JS

● Model JSM-3.1-0.3W

● Input 100-240V 50/60Hz, 8A

● Output 24Vdc, each 110VA, total 330VA

● Maximum power 450W

● Standby <0.3W

● Operating mode: 2mins on/18mins off

● Product Solution MOS conductor

● Global approvals CE FC UL


Three motor electric lift table controller function introduction


1、Using MOS tube programme, and with gyroscope;


2, with reverse brake function, load 500KG does not decline


3、5KG high-precision collision protection, no false action;


4, left and right imbalance protection


5、Walking 10000 times, two legs height zero error;


6、No-load can run continuously for 20 minutes without protection.


7、System parameters can be modified using PC software;


8、Updating the programme does not need to dismantle the shell, does not require AC power supply


9, support for up to 48 motor series operation;


10, up to 30 error codes are very convenient to find system problems
