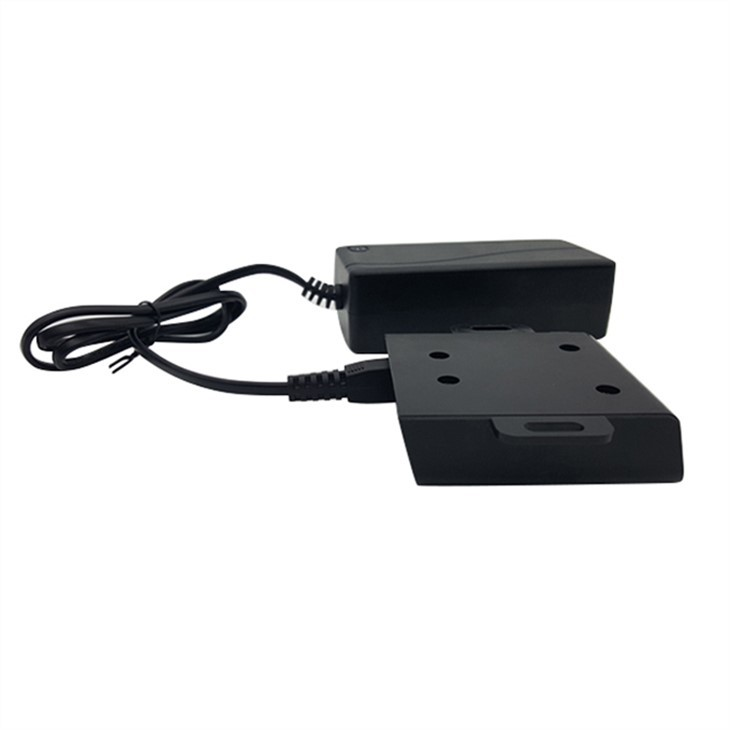

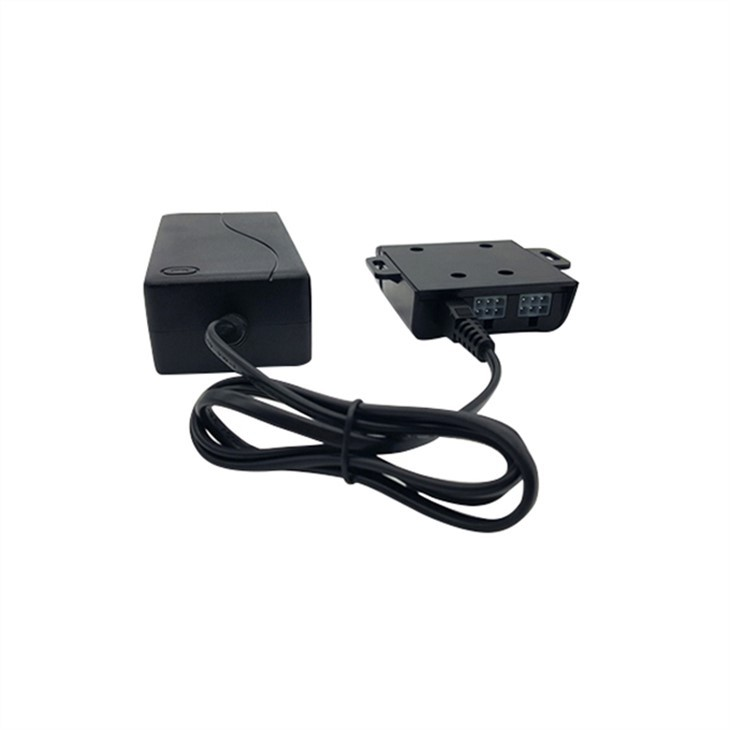

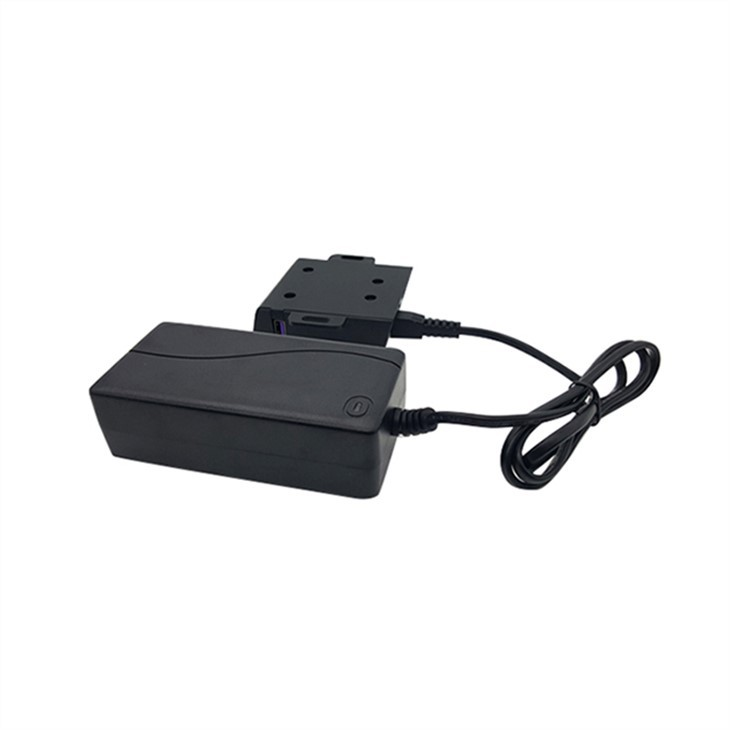

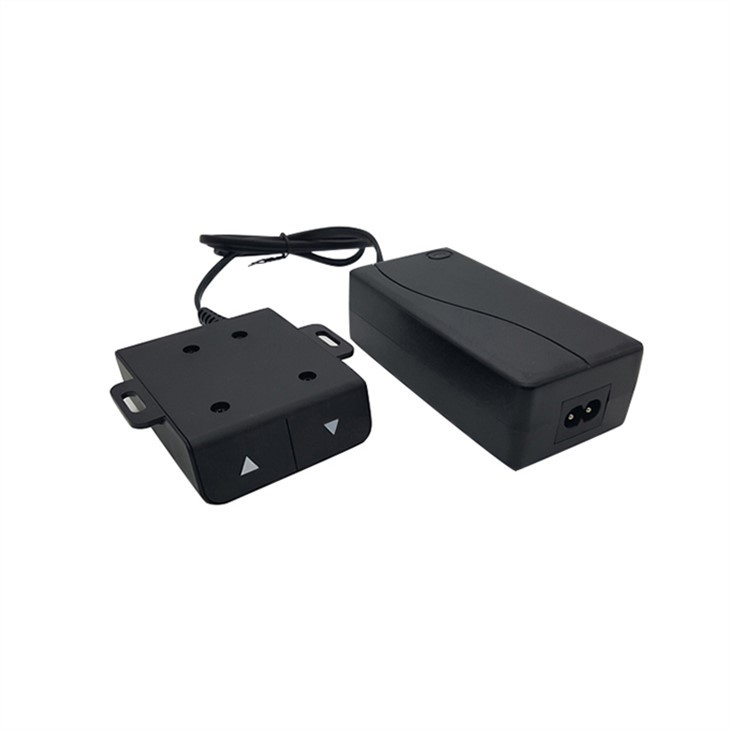

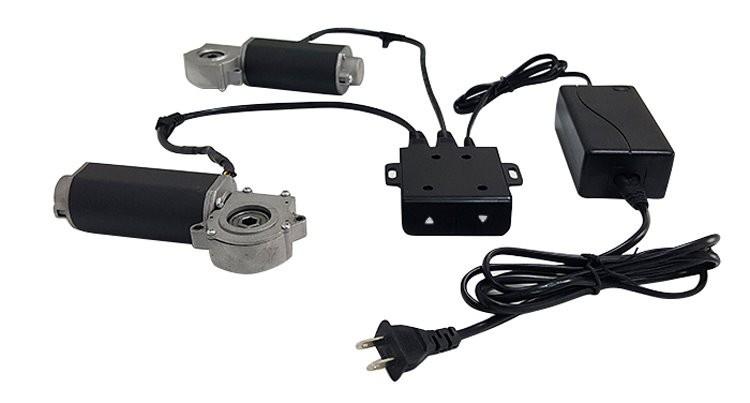

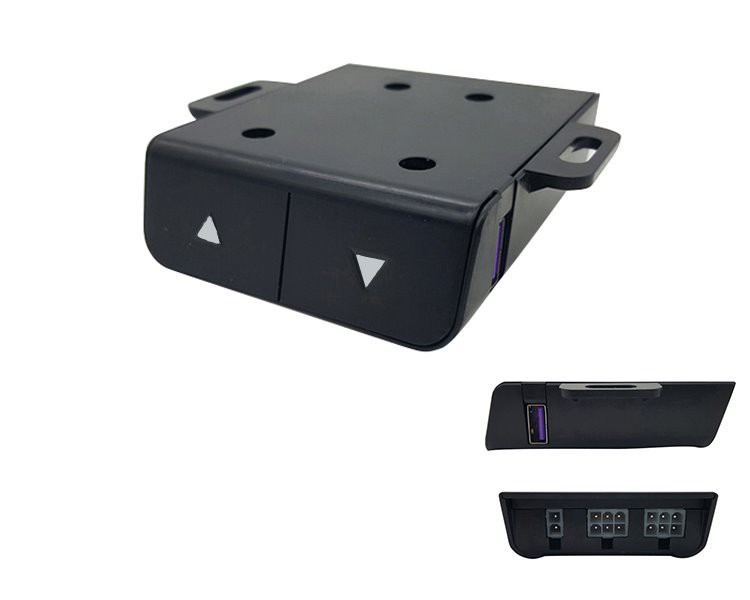

Adjustable desk frame control box combines the functions of control box and hand control, belonging to 2-motor control box with external power. In the front of the Control Box, there are 2 keys that can control the desk rising or falling. At the back, It can directly connect to motors just as common control boxes do. On the right, there is a USB end enabling users to charge up cellphones or something.
Product parameters of Height Adjustable Desk Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 69×82×25mm |
Product solutions | MOS scheme |

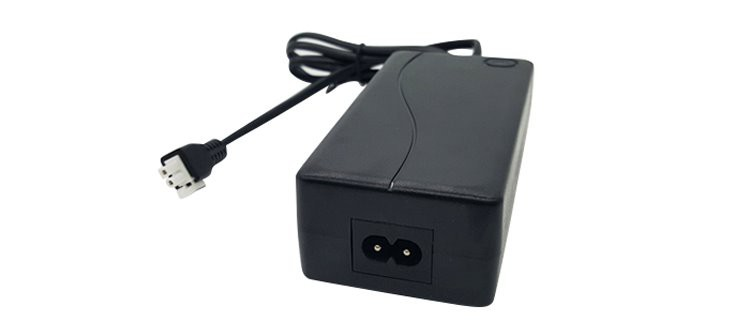

Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |

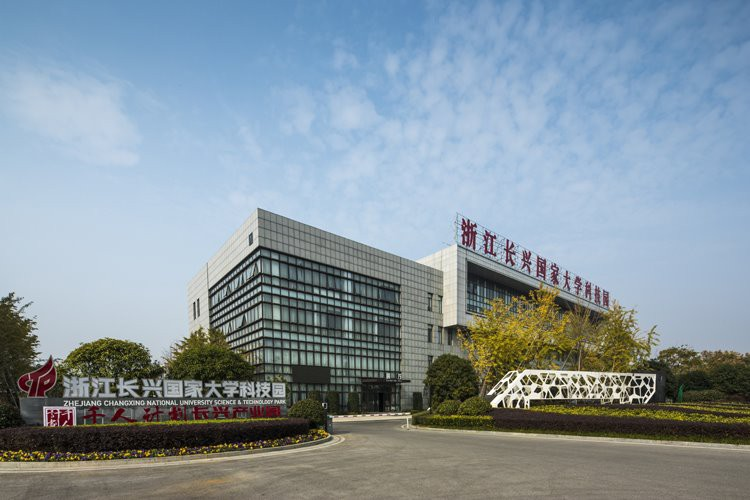

Company related introduction:
Based on 6 years of technical experience accumulation, Jingshi Technology has developed generation1, 2, 3 control systems which feature small size, full voltage and high power. The product performance and stability have been consistently praised by customers. In the future, we will continue to invest a large amount of fund in the research and development of new products in the field of lifting tables.
If you have any questions about Adjustable desk frame control box, don’t hesitate to contact us.
Our advantages:
1. Strong R&D team
2. Professional processing factories
3. Deep understanding of the industry
4. Sound awareness of service
