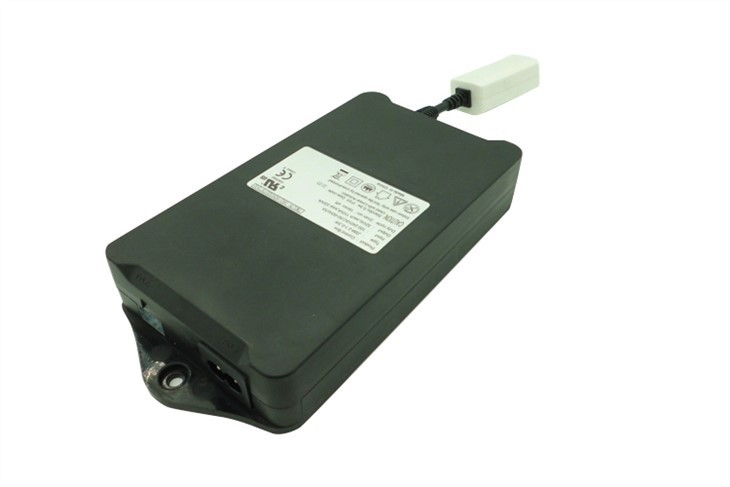

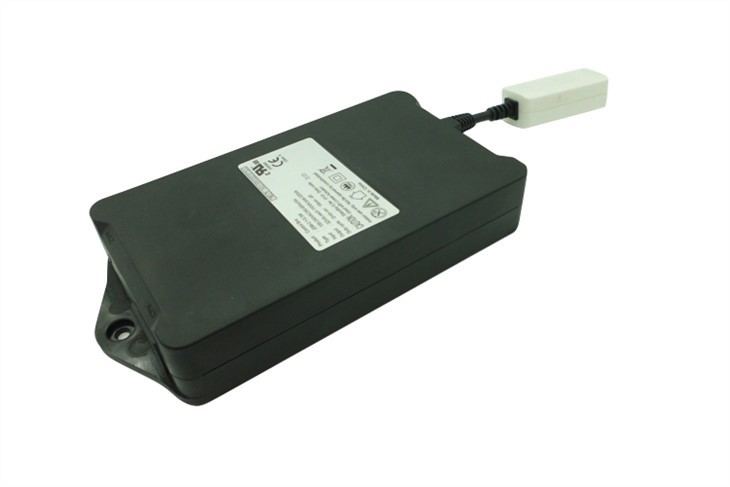

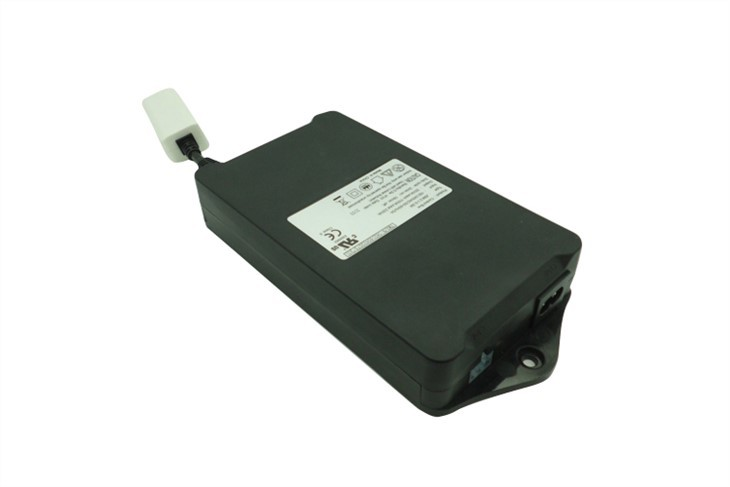

Basic property of Adjustable Work Desk Control Box
Type: JSM-2.1-0.3W
Input: 100-240V 50/60Hz, 5A
Output: 32Vdc, each 110VA, total 220VA
Maximum power: 350W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
This is external Bluetooth. Scan corresponding QR code to download the APP, after connecting the device, the lifting table can be controlled by the mobile phone.
The linear drive control system is not composed of a single motor itself, but a complete drive system including design, motor, controller, sensor. It comprises design, software, hardware, integrating industrial design, machinery, electrical, material, computer and other multidisciplinary.
Applications
Adjustable Work Desk Control Box is applicable to lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition
Unknown application areas:
The linear drive system can be customized and developed according to customer requirements.
Product testing
Jingshi has developed the fully automatic test system independently, which can be used to do product testing. It can evaluate the power supply and control parts of the control board comprehensively. The following contents can be detected :
1. If the output of the power supply is standard.
2. If there is anything wrong with the main power supply, such as with load, overload, over temperature, and short circuit
3. If the hardware sensors of each part of the control board are standard.
4. The control board can initialize desk legs, adjusting the desk upward and downward, etc.The system can quickly alarm through the buzzer, upon it detects any anomaly in the process of the automatic test.
Our core competitive advantages:
1. Top - notch R&D Capability: Bringing together senior industry experts and innovative talents, we have established a cutting - edge technology R&D system to continuously deliver innovative achievements that lead the market.
2. Professional Smart Manufacturing Guarantee: Equipped with standardized production bases and precision processing equipment, we ensure the excellent quality of products through a strict quality control system.
3. In - depth Industry Insight: With years of deep cultivation in the field, we accurately grasp industry trends and customer needs, and provide solutions that fit market pain points.
4. Ultimate Service Experience: Upholding the concept of customer first, we follow up the whole process from pre - sales consultation to after - sales maintenance, and create value with efficient response and considerate service.
Application:
Multi - station lifting tables in shared work environments are suitable for multi - user lifting table configurations requiring centralized control and power distribution via a single power supply and transmission box.
OEM and ODM custom table frame projects:
Designed for integration with adjustable table frames in OEM/ODM projects. With open control logic, it supports secondary development and flexible adaptation by table frame manufacturers.
FAQ
1. Are you a trading company or manufacturer?
Jingshi Technology is a manufacturer with its own factory. Jingshi owns two companies, Hangzhou Jingshi Technology and Changxing Jingshi Technology.
2. How about the size of the company, the number of production and R&D personnel?
Jingshi Technology covers an area of 4000 square meters altogether with 120 staff including 12 R&D personnel.
