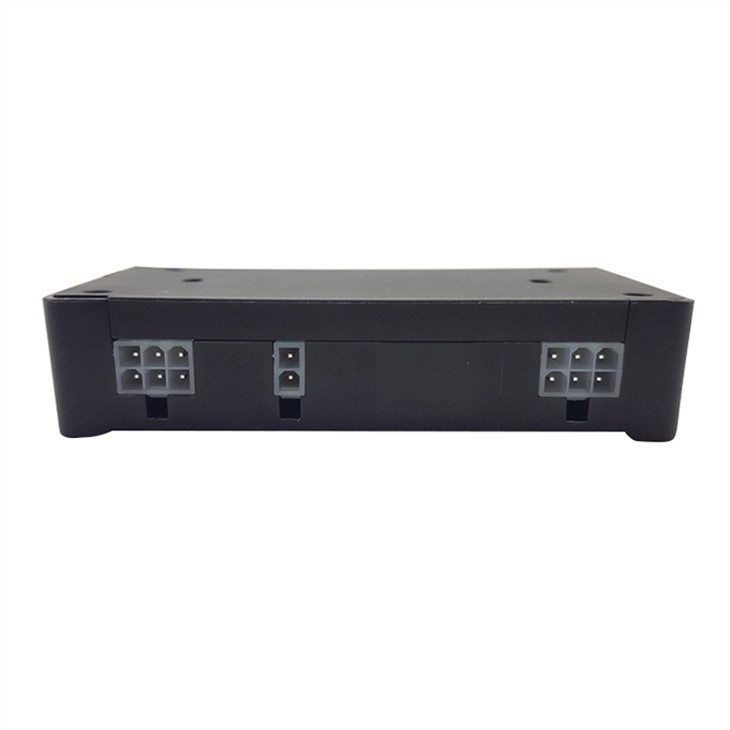

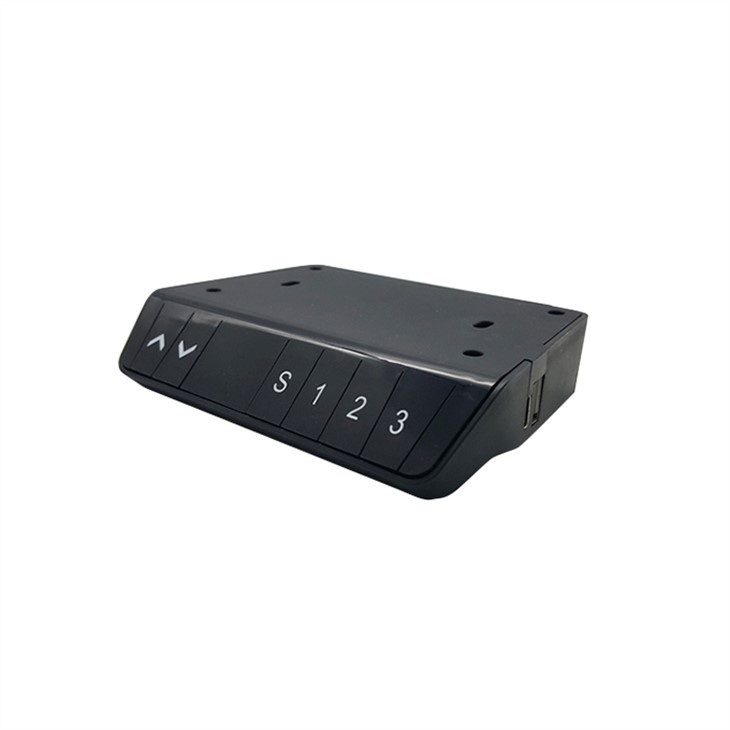

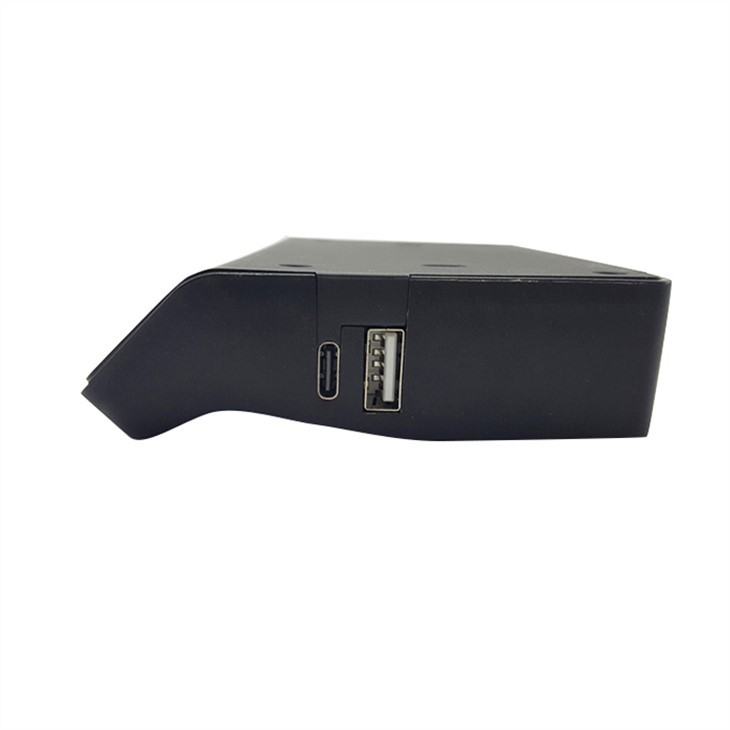

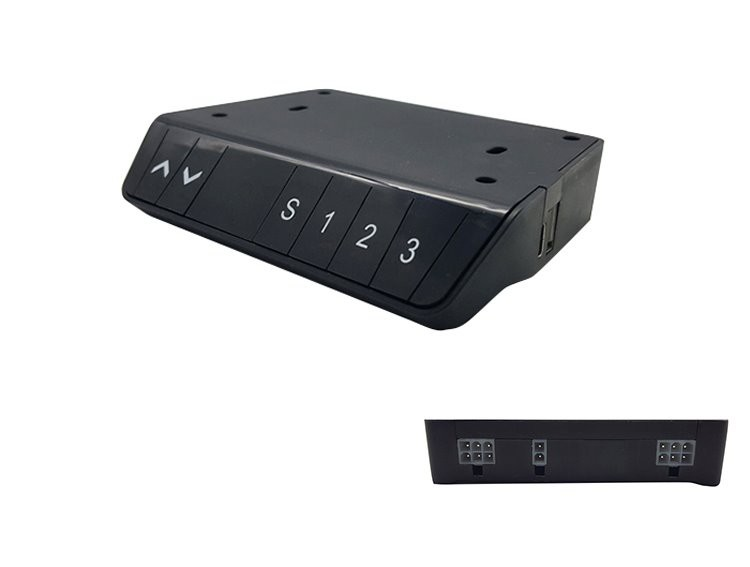

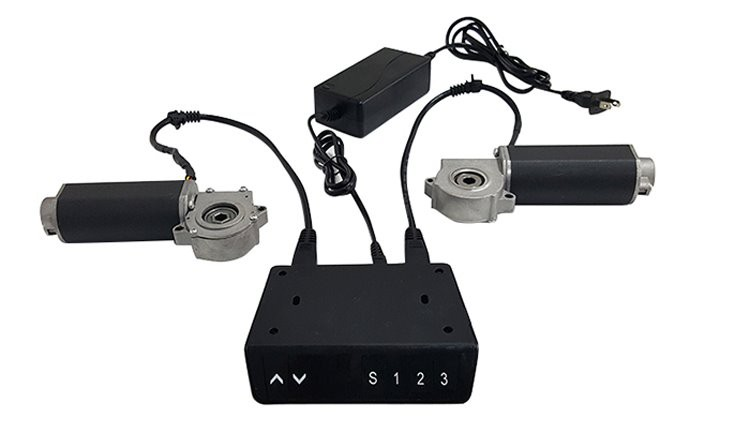

Automatic Desk Lift Control System integrates the functions of control box and hand control, In the front of the Control Box, there are 6 keys that can control the desk rising or falling. At the back, it can directly connect to motors just as common control boxes do. On the right, there is a USB end enabling users to charge up cellphones.
Product parameters of Height Adjustable Desk Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 69×82×25mm |
Product solutions | MOS scheme |
Selling points of Automatic Desk Lift Control System
1. Infineon chips imported from Germany
2. The running distance is accurate to 1mm
3. 100% simultaneity, 10,000 operations, 0 error on 2 columns
4. Low standby power consumption, less than 0.3W
5. Adopt the cutting-edge MOS conductor scheme
6. Able to support the speed of 60mm per second
7. Low noise
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Company related introduction:
Jingshi Technology owns two firms, Hangzhou Jingshi Technology and Changxing Jingshi Technology. The former was founded in 2017, and the later was founded in 2018. While Hangzhou Jingshi Technology is mainly responsible for product advancement and innovation, Changxing Jingshi Technology takes the responsibility of purchasing raw material, manufacturing products and delivering goods.
