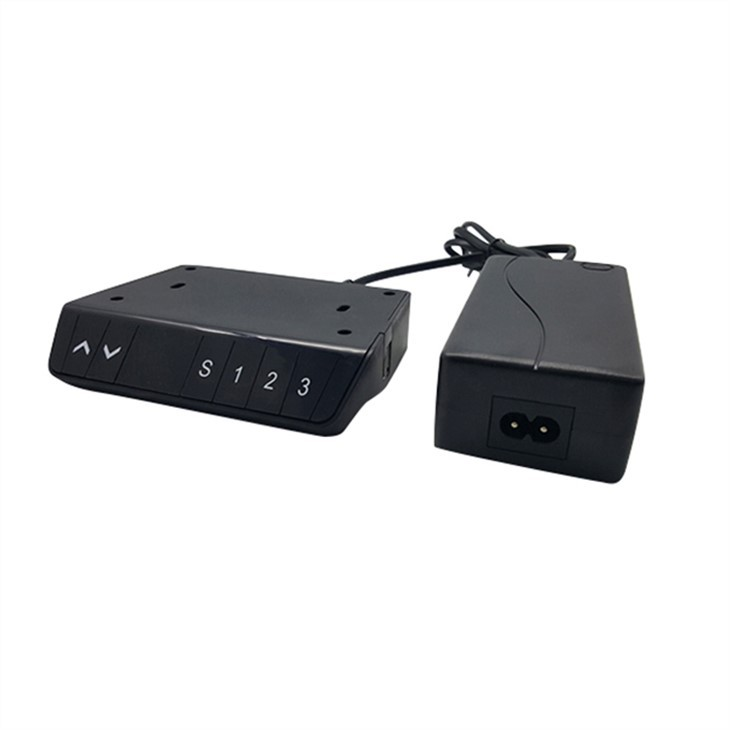

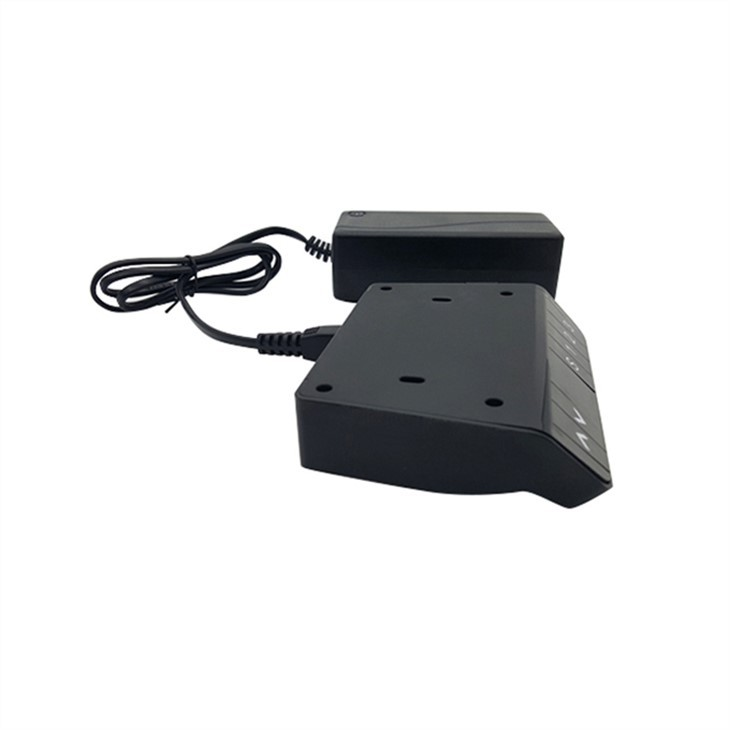

Autonomous Lift Desk Control System integrates the functions of control box and hand control, belonging to 2motor control box with external power. On the right, there is a USB end enabling users to charge up cellphones or something.
Product parameters of Height Adjustable Desk Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 69×82×25mm |
Product solutions | MOS scheme |
Selling points
1. The chips we adopt are Infineon chips that are imported from Germany
2. The operating distance is precise to 1mm
3. 100% simultaneity, 10 thousand times of operations without any errors
4. When on standby mode, the power consumption is below 0.3W
5. Our products adopt the latest MOS conductor plan
6. The controller box can support the speed of 60mm per second
7. Noise is minimum

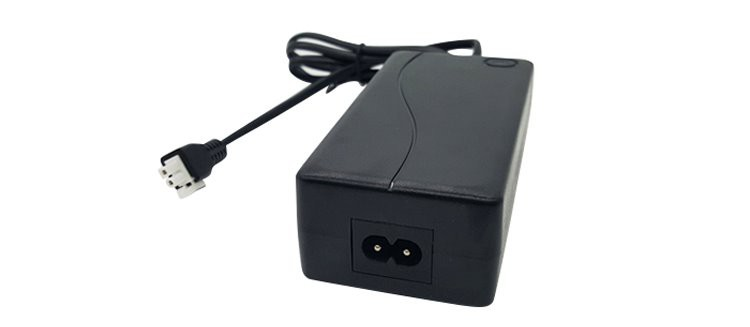

Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Company related introduction: In the year of 2014, Jingshi Technology started to provide our clients with tailored control system of adjustable desks, serving clients in a point-to-point way. On the basis of 6-year technical expertise, we have successfully innovated 3 generations of control systems that feature small size, full voltage and high power. The excellent functions and stability have earned solid reputation for Jingshi Technology. In the years to come, our company will proceed to work on the R&D and break through the current industry bottleneck.
