Control Box Driving Actuators belongs to 2-motor control box with internal power supply. It features small size, full voltage and high power. And the remote enables users to remotely control sit stand desks. With self-developed technology of intelligent motion control, Changxing JS control box factory produces control boxes and hand controls.
Basic property of Control Box
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 400KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
10. Control Box Driving Actuators can realize 100% simultaneity, 10,000 operations, 0 error on 2 columns
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |

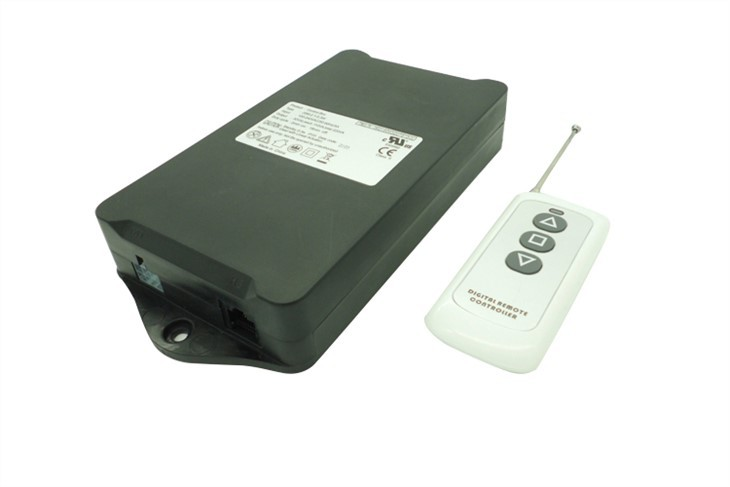

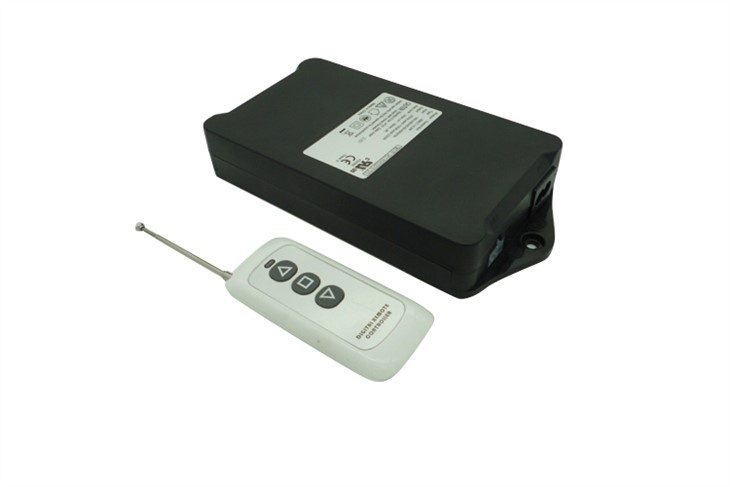

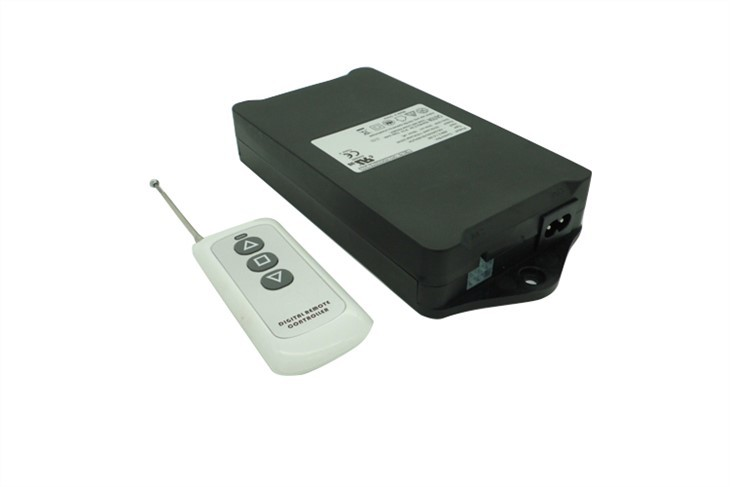

Wireless remote control: There are 3 buttons, up, down and stop. The wireless remote control can remotely control the lifting desk within 200m of the receiver. Only a battery is needed for power supply.
Types of standing desk control box we produce:
Applications
Product testing
The test adopts the fully automatic test system independently developed by Jingshi, and the test tool can make a comprehensive evaluation of the power supply and control part of the control board. The test system can detect the following contents of the control board:
1. Whether each output of the power supply is normal
2. Whether there are any problems of the main power supply, with load, overload, over temperature, and short circuit
3. Whether the hardware sensors of each part of the control board are normal
4. The control board can be initialized with table legs, rise and fall, etc.
When there is an abnormality during the automatic test, the system can promptly ring through the buzzer as quickly as possible.
Photos of factory:
Focus on wholesale and customization of Control Box Driving Actuators
free samples/free design/origin factory/ODM/OEM/
