Control Box Driving Electric Lifting Columns

5 0 Reviews
Input: 24-36V Output:12-32V Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

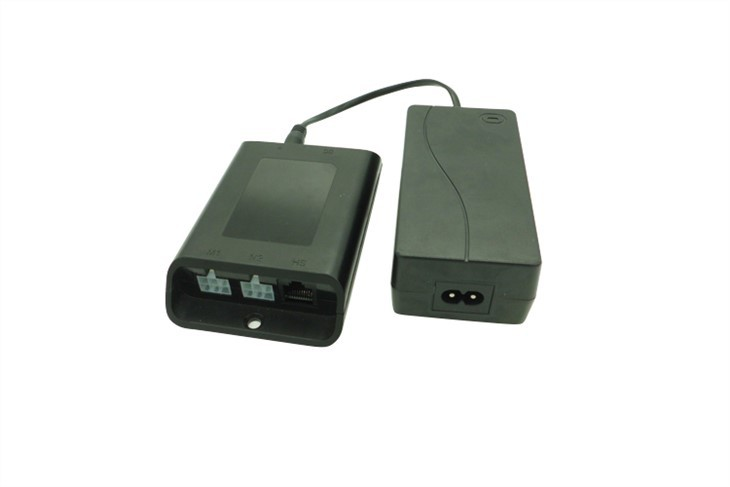

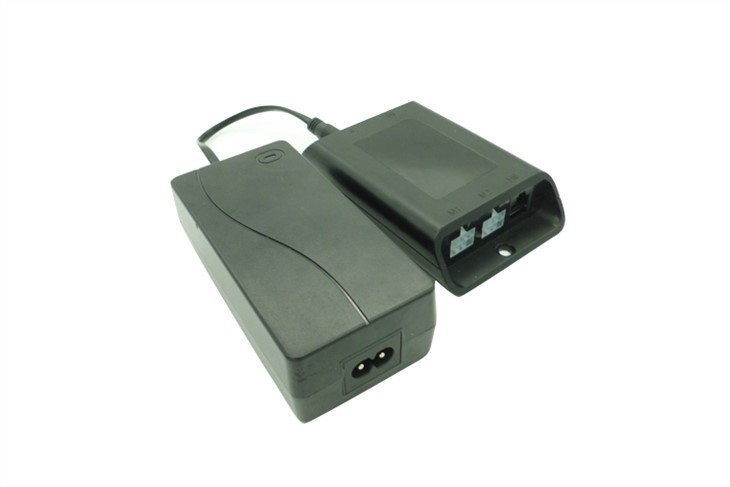

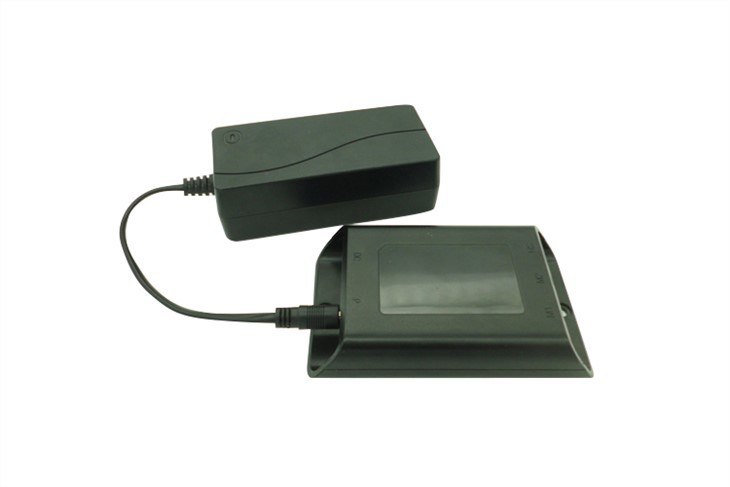

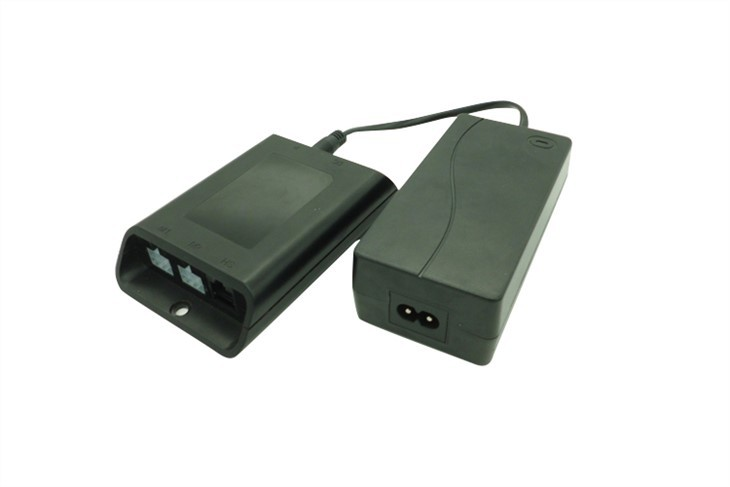

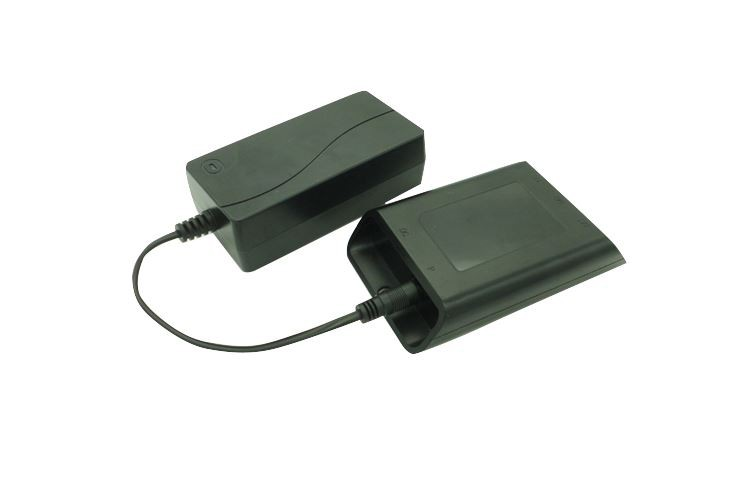

Control Box Driving Electric Lifting Columns 6

JS Technology makes Control Box Driving Electric Lifting Columns. With self-developed technology of intelligent motion control, Jingshi company provides systematic solutions for a large number of intelligent terminal products that need drive, and provides businesses with cost-effective products and services.The linear drive control box we produced is widely used in the fields of brush motors and brushless motors, such as lifting desks, garden tools, medical beds and massage chairs. According to ergonomics and customers’ needs, customized software is available here, which enables users to manage the entire system through software programs, achieving the expected various movements.

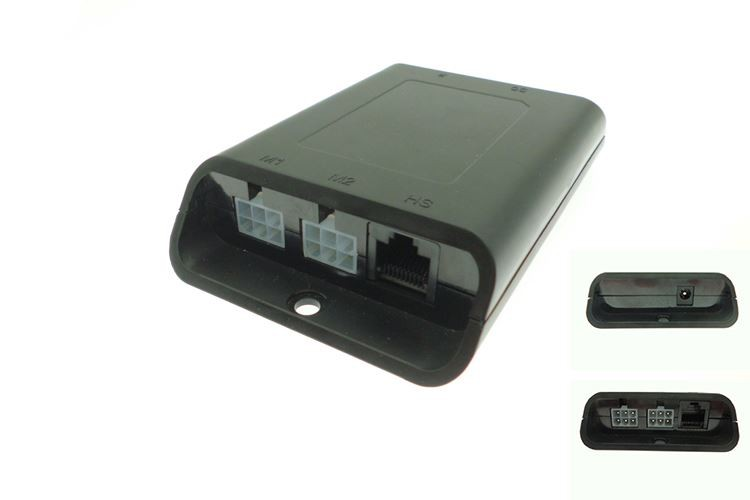

 2 Combination

Basic property of Control Box Driving Electric Lifting Columns

Input: 24-36V

Output:12-32V

Duty cycle: 2min ON/18min OFF

Product scheme: MOS conductor

Functions of Control Box Driving Electric Lifting Columns

1. Using MOS conductor scheme with gyroscope

2. With reverse brake function, it does not drop under the weight of 150KG

3. 5KG high-precision collision protection, no malfunction

4. Protection to keep left and right level, preventing things on desk from falling

5. When No-load, it can run continuously for 20 minutes without protection

6. It supports Bluetooth and can be controlled by apps and wireless computers

7. System parameters can be modified by PC software

8. To update the program, it’s not necessary to disassemble the shell, or turn on power

9. Quite convenient to check system problems with 30 error codes

10. 100% simultaneity, 10,000 operations, 0 error on 2 columns

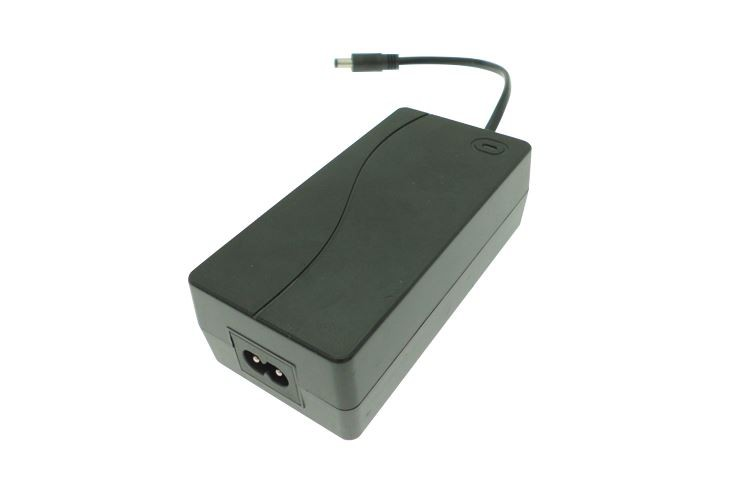

 adapter label 1

Description of Adapter:

        1. Input parameters: 100-240VAC/50-60HzA

        2. Output parameters: 29V1.8A

        3. Maximum power: 150W

        4. Working mode: 2 Min: 18Min/ ON: OFF

Comparison of three generations of control boxes made by JS Technology

products

1st generation

2nd generation

3rd generation

Anti-pinch method

Current/torsion sensor

Current + patented sensor

Current + patented sensor

Anti-pinch

detection accuracy

15Kg

5Kg

5Kg

Bluetooth

Support

Support

Support

Height memory

Two keys 0/digital display 4 groups

Two keys 1/digital display 3 groups

Two keys 1/digital display 3 groups

Multi-machine parallel

not support

Support up to 16

not support

Standby

power consumption

0.2W

0.1W

0W

EMC

Pass

Pass

Pass

Battery interface

Have

No

Have

modify parameters on PC

Support

Support

Support

Desktop auto balance

No

Have

Have

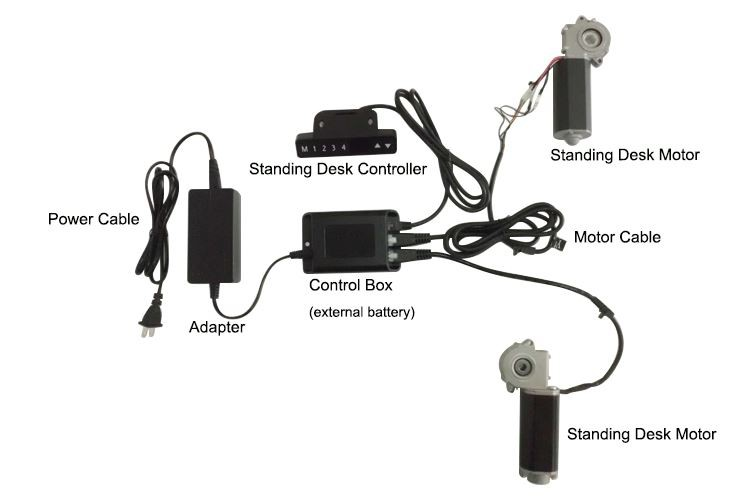

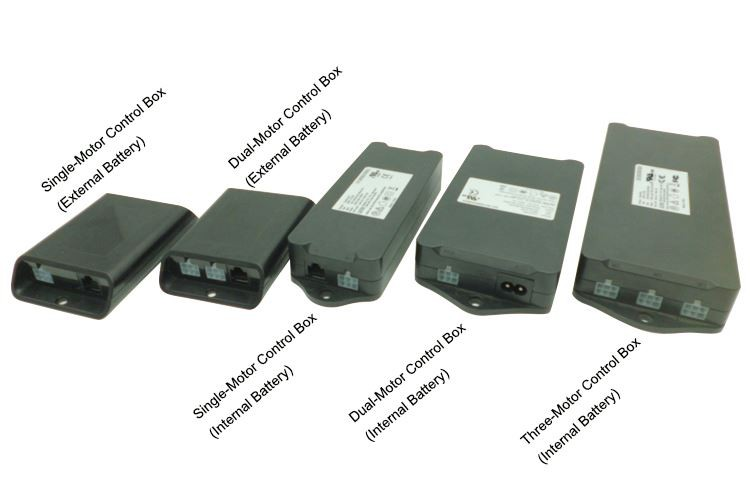

Types of standing desk control box we produce:

all kinds

illustration 2

Applications of Control Box Driving Electric Lifting Columns:

Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.

application

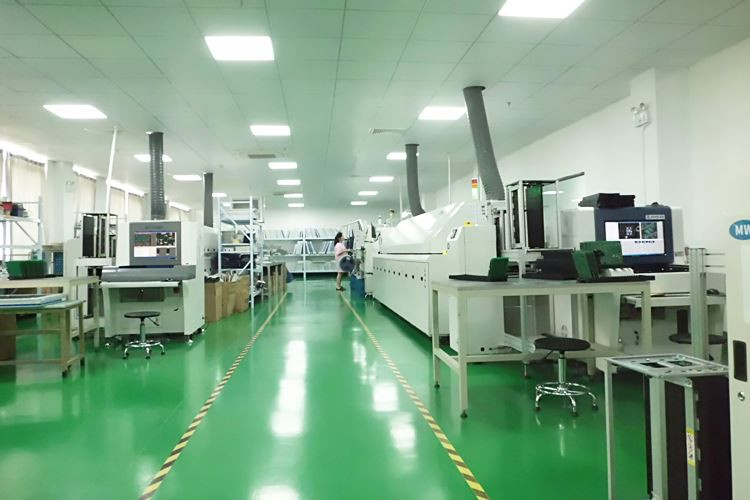

Company related introduction: Jingshi company places great emphasis on innovating technology and optimizing procurement channels, and achieves product stability through cooperation with our partners. Our products have independent intellectual property rights and patents, and the products have been sold to more than 10 countries around the world. Products acquire many global certifications, such as UL, CB, CE, etc. In 2018, Jingshi company was rated by customers as China's leading solution provider concerning adjustable desk control system.
