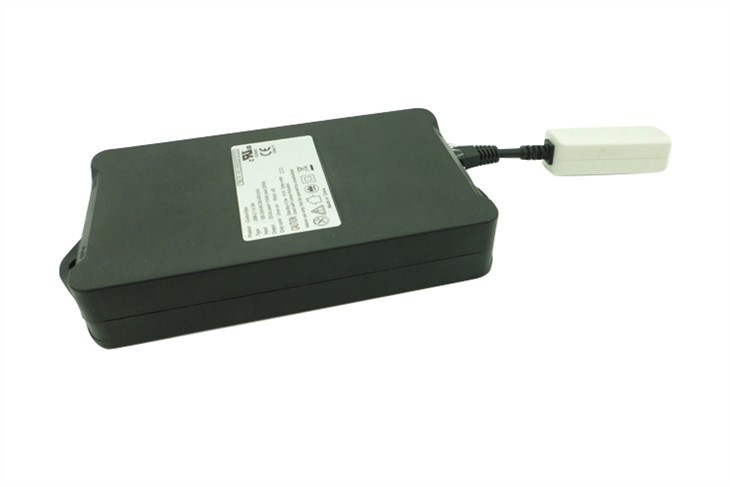

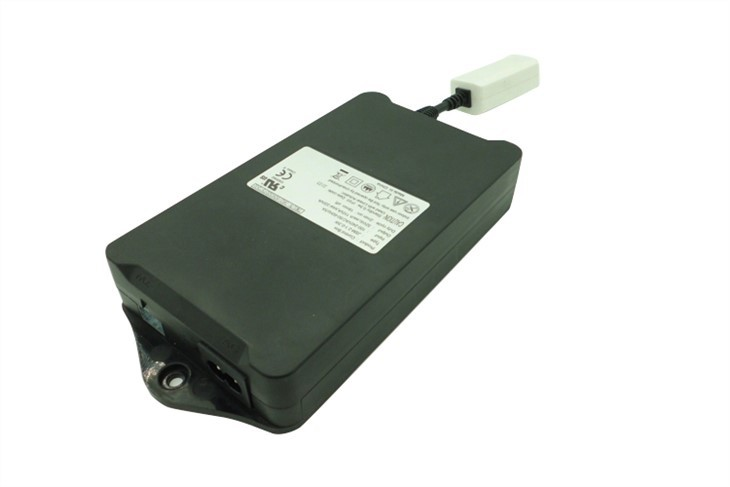

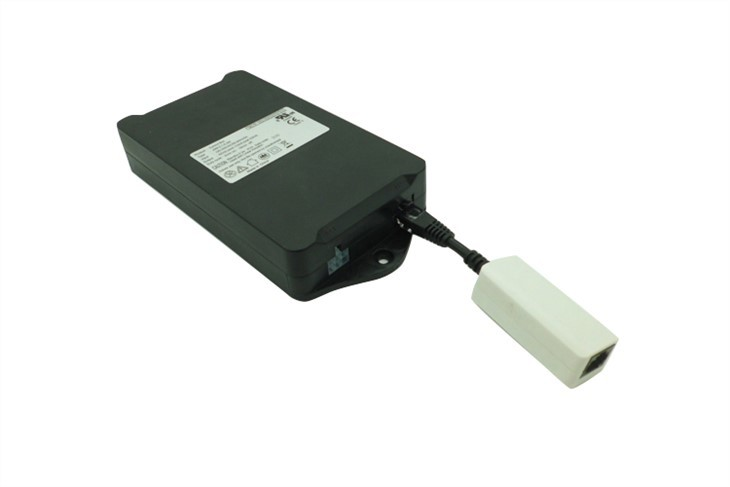

Basic property of Control Box Driving Massage Chairs
Type: JSM-2.1-0.3W
Input: 100-240V 50/60Hz, 5A
Output: 32Vdc, each 110VA, total 220VA
Maximum power: 350W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 400KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
10. Control Box Driving Massage Chairs can realize 100% simultaneity, 10,000 operations, 0 error on 2 columns
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
This is external Bluetooth. Scan corresponding QR code to download the APP, after connecting the device, the lifting table can be controlled by the mobile phone.
Types of standing desk control box we produce:
Applications
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.
Quality management concept
1. Quality is the starting point of value and respect, and is the lifeblood of a company's survival.
2. All raw materials are inspected randomly, and the whole batch must be inspected in case of defects. Where incidence of defects exceeds 0.2%, the materials would be returned to the supplier and rectification is required.
3. 100% of released products get through 2-hour aging test. We by no means allow any products that fail ageing test to flow into the market.
4. 100% of defective products returned from all markets are disassembled and analyzed. We by no means allow any products that need to be fixed to flow into the market.
JS factory
Contact us for more information about Control Box Driving Massage Chairs.
