Control Box Driving Medical Beds

5 0 Reviews
Basic property of Control Box Driving Medical Beds Type: JSM-2.1-0.3W Input: 100-240V 50/60Hz, 5A Output: 32Vdc, each 110VA, total 220VA Maximum power: 350W Standby power consumption: <0.3W Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc. MOQ:1000PCS
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

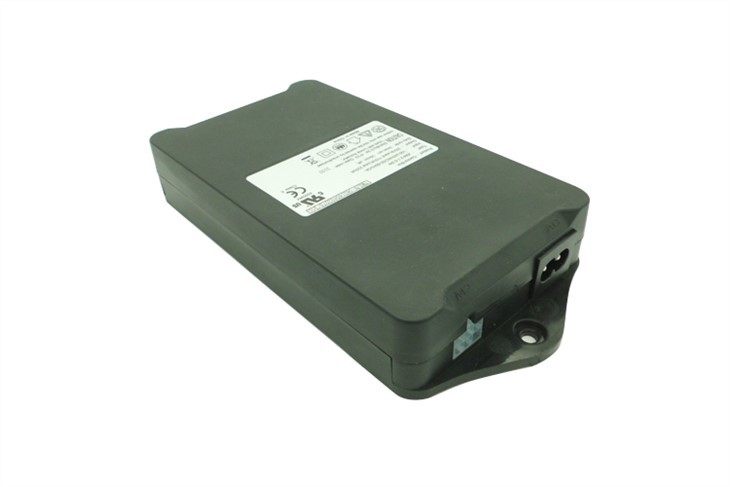

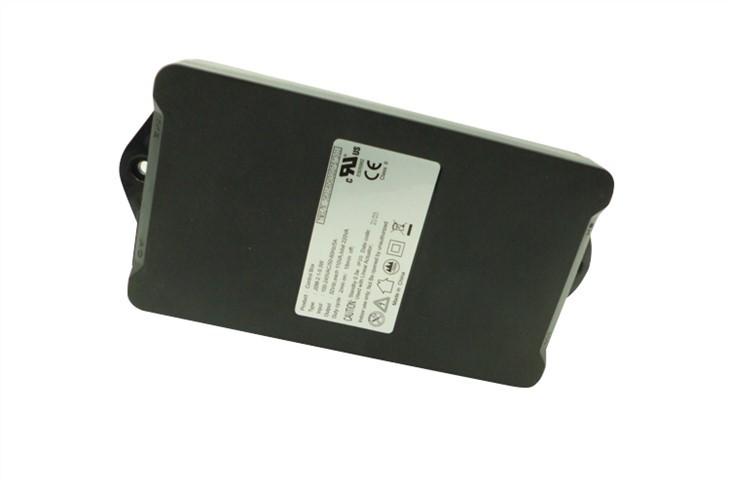

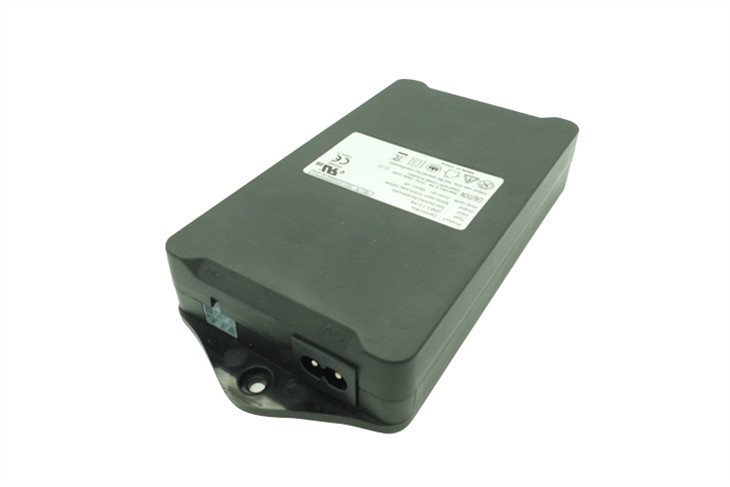

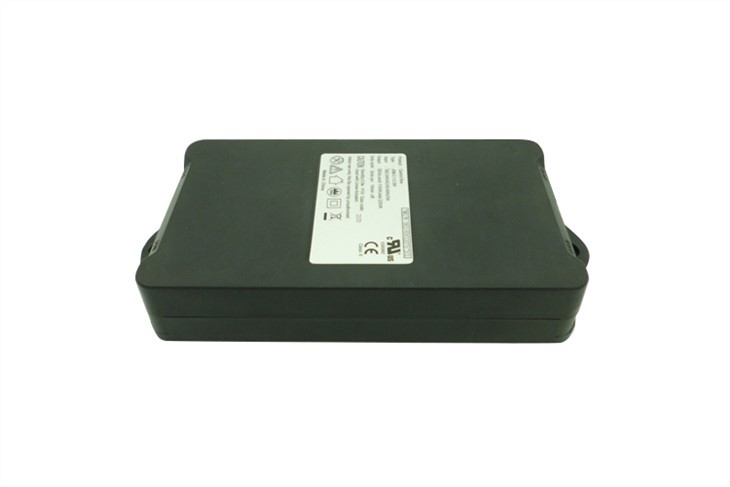

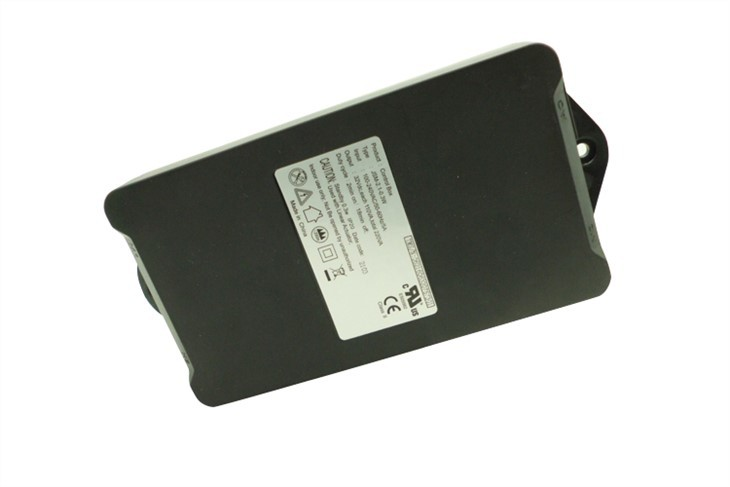

Control Box Driving Medical Beds belongs to 2-motor control box with internal power supply. It features small size, full voltage and high power.


China sit stand desk control box.jpg

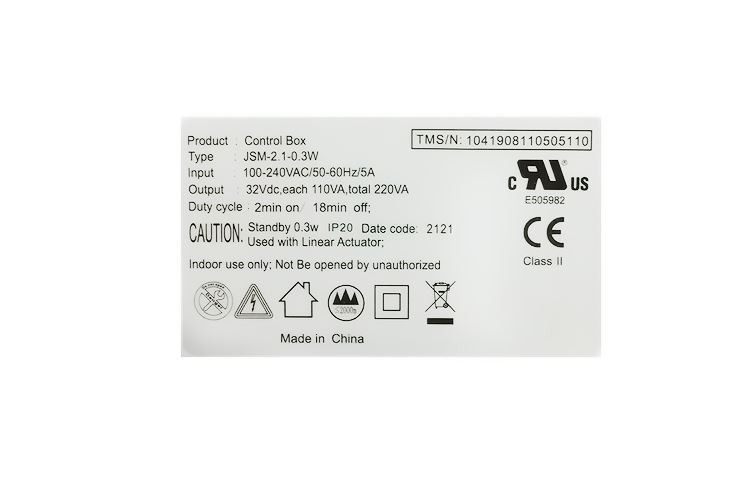

2

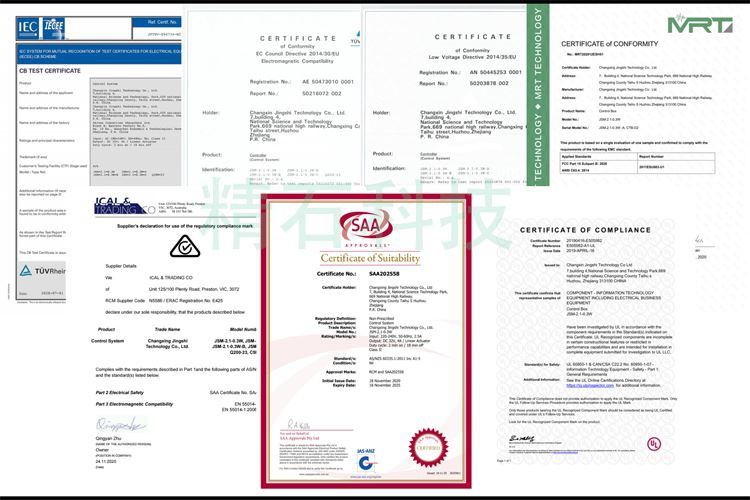

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

China standing desk controller certificates.jpg

Comparison of three generations of control boxes made by JS Technology

products

1st generation

2nd generation

3rd generation

Anti-pinch method

Current/torsion sensor

Current + patented sensor

Current + patented sensor

Anti-pinch

detection accuracy

15Kg

5Kg

5Kg

Bluetooth

Support

Support

Support

Height memory

Two keys 0/digital display 4 groups

Two keys 1/digital display 3 groups

Two keys 1/digital display 3 groups

Multi-machine parallel

not support

Support up to 16

not support

Standby

power consumption

0.2W

0.1W

0W

EMC

Pass

Pass

Pass

Battery interface

Have

No

Have

modify parameters on PC

Support

Support

Support

Desktop auto balance

No

Have

Have

Types of standing desk control box we produce:

Control Box Driving Medical Beds one of the products made by Jingshi Technology company. Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. The dual-motor controller can also be divided into two kinds: dual-motor controller with the 2 motor sockets on the one side and dual-motor controller with the 2 motor sockets on two sides. Products can also be customized according to users’ needs.

wholesale standing desk control boxes.jpg

Our customers are mainly distributed in China, North America, Europe and Japan.

In 2018, 50 thousand sets of products flowed into the US market and 100 thousand sets of products flowed into the European market.

In 2019, 300 thousand sets of products flowed into the US market and 200 thousand sets of products flowed into the European market.

In 2020, 500 thousand sets of products flowed into the US market and 350 thousand sets of products flowed into the European market.

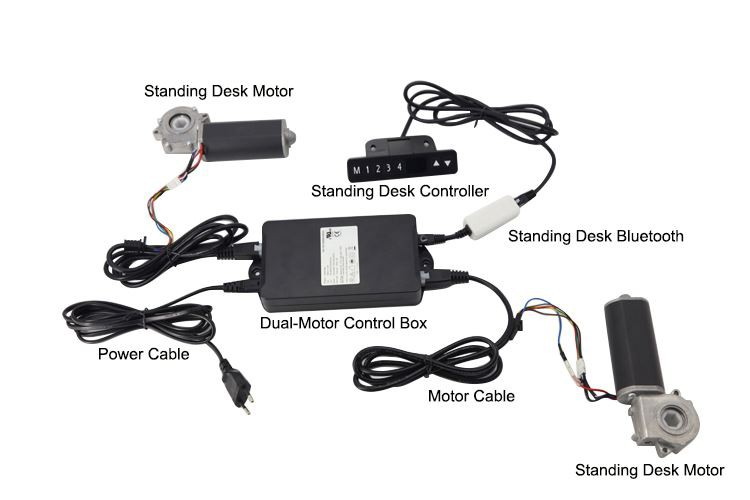

wholesale sit stand desk control.jpg

Applications

Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.

China control box application.jpg

Company related introduction

 In 2014, Jingshi Technology began to cater to customers and tailor the development of the lifting table control system, serving customers in a point-to-point manner.

In 2017, Hangzhou Jingshi Technology Co., Ltd. was founded.

In 2018, Changxing Jingshi Technology Co., Ltd. was founded.

Based on 4 years of technical experience accumulation, Jingshi Technology has developed 1, 2, 3 control systems which feature small size, full voltage and high power. The product performance and stability have been consistently praised by customers. In the future, we will continue to invest a large amount of fund in the research and development of new products in the field of lifting tables.

Contact us for more information about Control Box Driving Medical Beds.


Previous:
Next:

Related Products

Model JSM-2.1-0.3W
Input 100-240V 50/60Hz, 5A
Output 32Vdc, each 110VA, total 220VA
Maximum power 350W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL, UKCA, SAA, KC
0
0
Model JSM-4.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 32Vdc, each 110VA, total 220VA
Maximum power 600W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-1.1-0.3W
Input 100-240V 50/60Hz, 2.5A
Output 24Vdc, each 100VA
Maximum power 150W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-3.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 24Vdc, each 110VA, total 330VA
Maximum power 450W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Angular design, with 1.5m connection cable
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Compact and flexible design, with 1.5m connection cable
0
0
Piano key design with background light
Lifting function,3 memory positions can be selected
Optional USB charging
Strong design technology, with 1.5m connection cable
0
0
Bluetooth support
OLEO display, rich menu
With two memory buttons
Smart appearance, RGB light effect
Up and down operation mode is flexible and fast
The startup Logo is displayed. Can customize the logo
0
0
Bluetooth support
With two memory buttons
Smart appearance, RGB light effect
Slim touch keys with background light
Supports max 18W Type-c fast charging
OLEO display, rich menu, Can customize the logo
0
0
OLEO display, rich menu
The knob can be pressed as a key
Knob comes with RGB light effect
The knob automatically rotates with the table
The startup Logo is displayed. Can customize the logo
Knob using BLOC motor, through the FOC control can simulate a variety of feel
0
0
We have invested in the field of intelligent office, motor drive, electric wheelchair and so on, and the intelligent office field has done very outstandingly.
