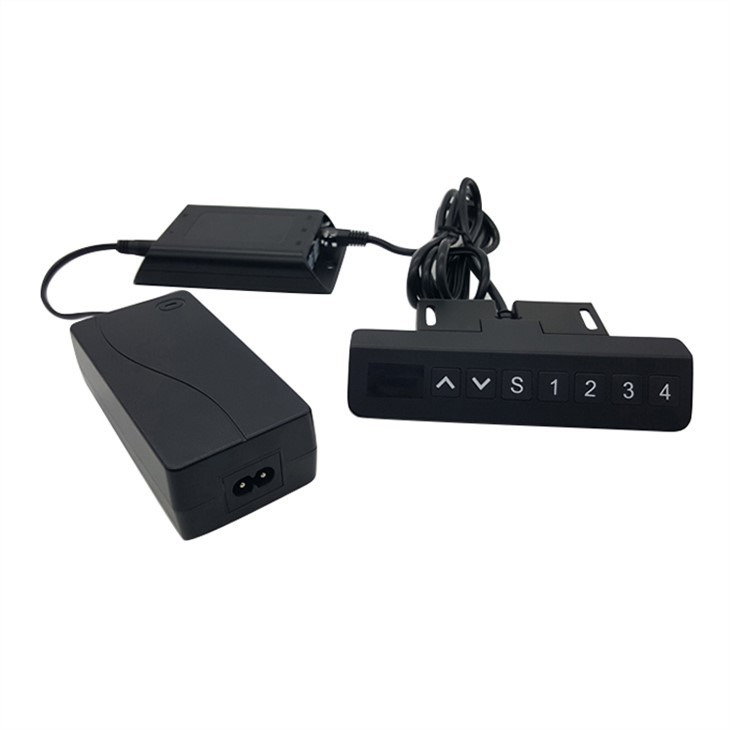

product description of Curved Sit Stand Desk Control Box
· This control box belongs to 2-motor control box with external power supply. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
Features
Number of control columns: 1-2
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Overload protection: avoid overload operation by limiting the current to a specific value
Overheating protection, motor open circuit, Hall fault, motor short circuit, low voltage, illegal power failure, illegal plugging and unplugging, excessive desktop tilt angle, anti-pinch upward and downward
Product parameters of Curved Sit Stand Desk Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 123×75×25mm |
Product solutions | MOS scheme |
Selling points
1. Infineon chips imported from Germany
2. The running distance is accurate to 1mm
3. 100% simultaneity, 10,000 operations, 0 error on 2 columns
4. Low standby power consumption, less than 0.3W
5. Adopt the cutting-edge MOS conductor scheme
6. Able to support the speed of 60mm per second
Low noise
Instructions
Duty cycle: continuous work for up to 2 minutes within 20 minutes
Use environment: indoor
Button Type Standing Desk Hand Controller holds an advantage of 7 buttons, able to memorize 4 different heights. So it’s extremely convenient to adjust the desk to meet your various needs. There is a USB interface on the side enabling users to charge up.
Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Company related introduction: Our products have independent intellectual property rights and patents, and the products have been sold to more than 10 countries around the world. Products have acquired many global certifications, such as UL, CB, CE, etc. In 2018, Jingshi company was rated by customers as China's leading solution provider concerning adjustable desk control system. If you have any questions about Curved Sit Stand Desk Control Box, don’t hesitate to contact us.
