Basic property of Electric Adjustable Office Desk Control Box
Input: 24-36V
Output: 12-32V
Number of keys: 6
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor

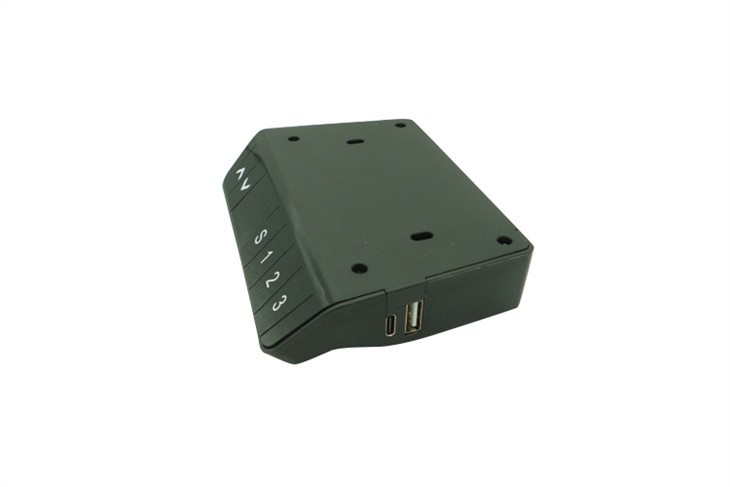

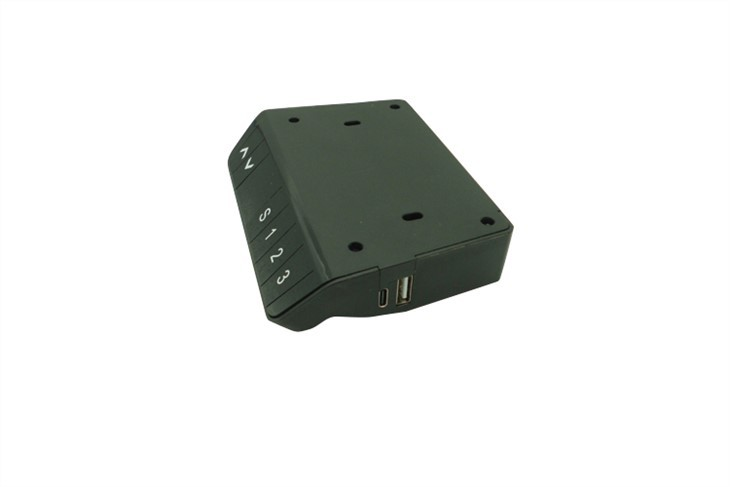

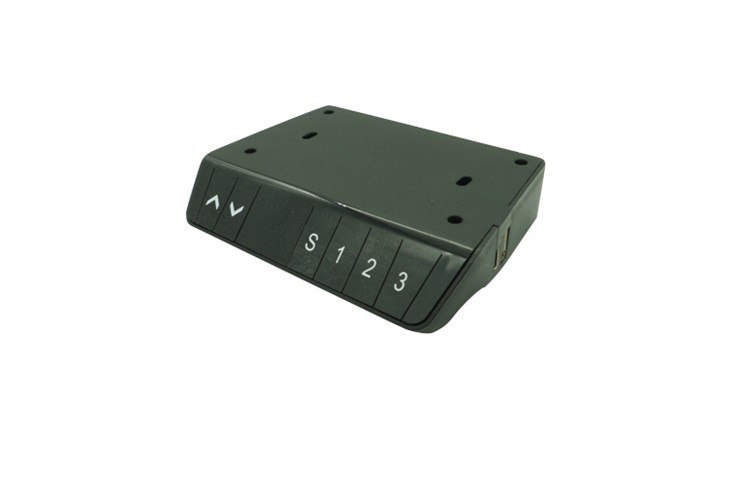

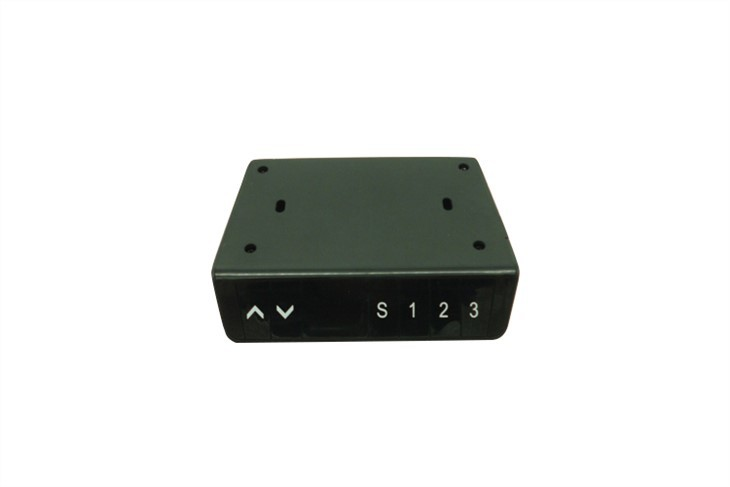

This product is the integration of lifting desk control box and hand control, belonging to external power supply control box. In the front, there are 6 keys which make it can memorize 3 different heights, so it’s very easy to adjust the table to the height suitable for you. At the back, It can connect to motors just as common control boxes do. On the right, there are two ends allowing users to charge up cellphones or something.
Compared to other control boxes, obviously, it has an advantage of combining the functions both control boxes and hand control. This new product are creative and innovative.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
Types of standing desk control box we produce:
Applications of Electric Adjustable Office Desk Control Box:
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.
Quality management concept
1. Quality is the starting point of value and respect, and is the lifeblood of a company's survival.
2. All raw materials are inspected randomly, and the whole batch must be inspected in case of defects. Where incidence of defects exceeds 0.2%, the materials would be returned to the supplier and rectification is required.
3. 100% of released products get through 2-hour aging test. We by no means allow any products that fail ageing test to flow into the market.
4. 100% of defective products returned from all markets are disassembled and analyzed. We by no means allow any products that need to be fixed to flow into the market.
Company related introduction:
JS company places great emphasis on innovating technology and optimizing procurement channels, and achieves product stability through cooperation with our partners. Our products have independent intellectual property rights and patents, and the products have been sold to more than 10 countries around the world. Products acquire many global certifications, such as UL, CB, CE, etc. In 2018, Jingshi company was rated by customers as China's leading solution provider concerning adjustable desk control system.
