Electric Elevating Desk Control Box

5 0 Reviews

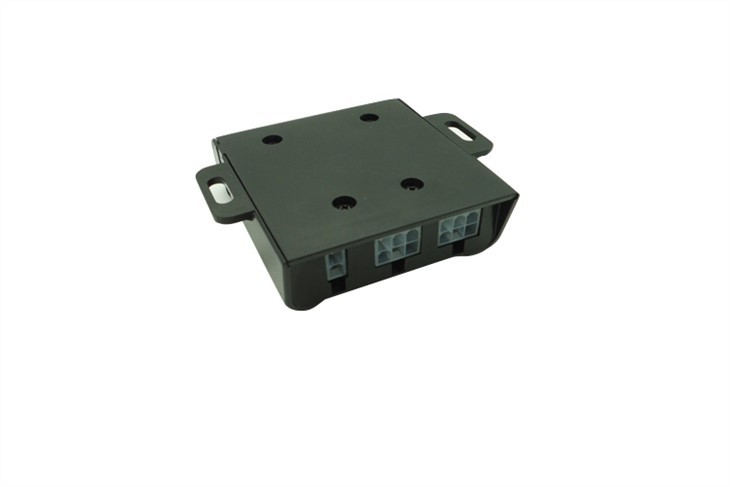

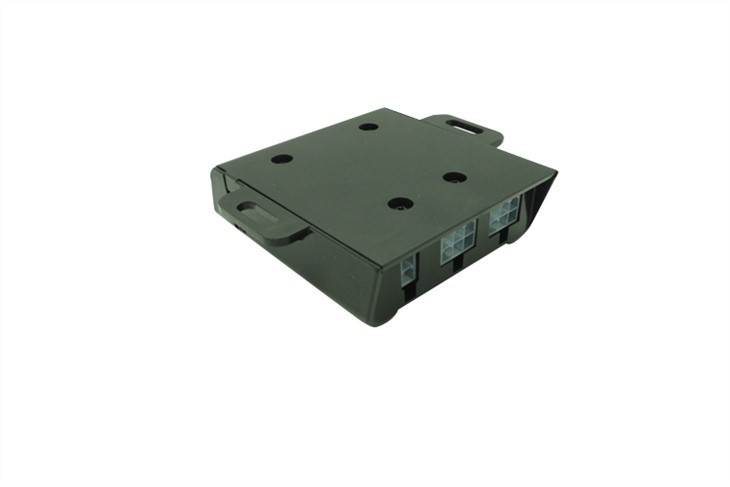

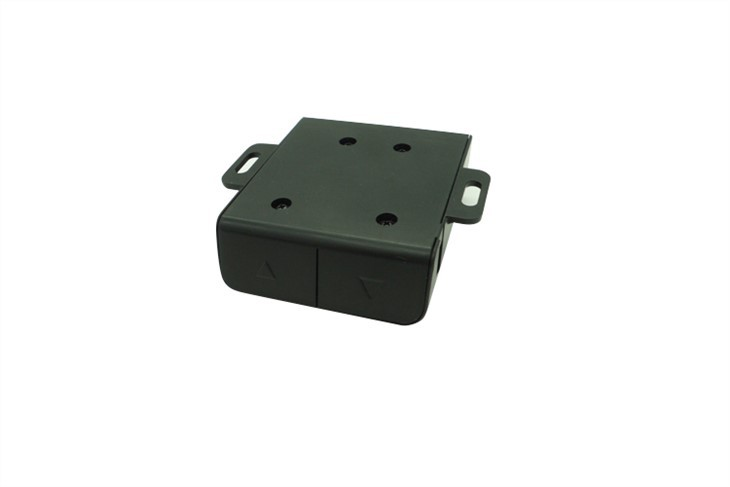

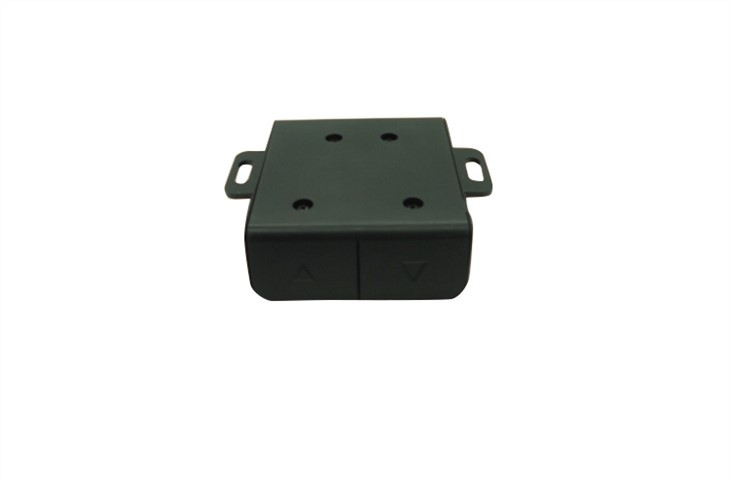

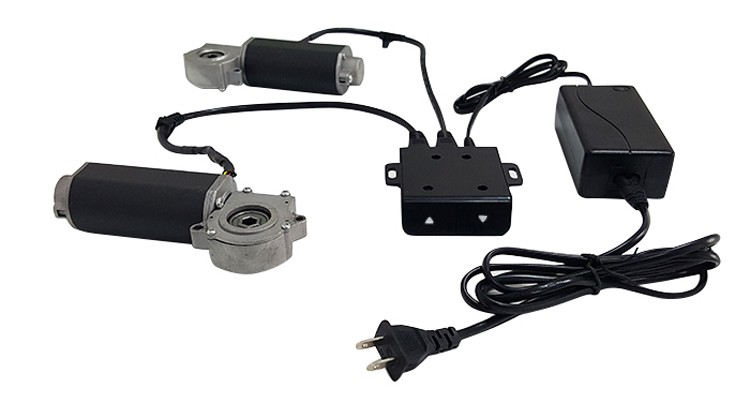

Electric Elevating Desk Control Box is our new product launched in 2021. In the front, there are 2 keys that can control the desk rising or falling. It belongs to 2-motor control box with external power supply combining the control box and switch panel together.
Input: 24-36V
Output:12-32V
Number of keys: 2
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
MOQ=1000 PCS

Quantity:




Inquire Add to Basket

Product Description

Product Introduction

JS Technology makes Electric Elevating Desk Control Box, and holds the advantage of self-developed technology concerning intelligent motion control , and provides one-stop solutions for a wide range of intelligent terminal products that call for drive.

Basic property

Input: 24-36V

Output:12-32V

Number of keys: 2

Duty cycle: 2min ON/18min OFF

Product scheme: MOS conductor

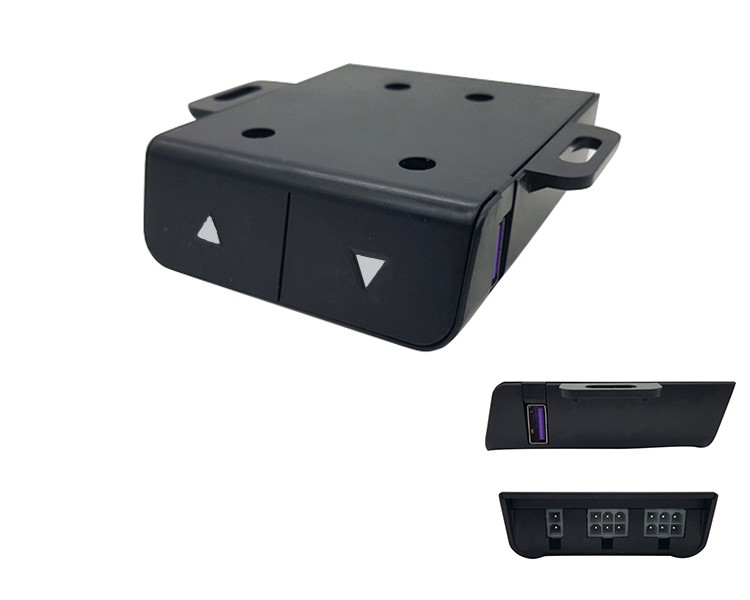

China 2-key standing desk controller.jpg

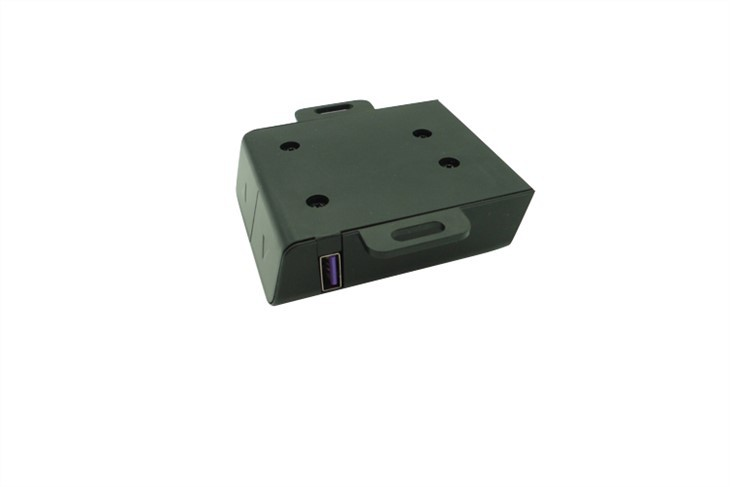

This product integrates the functions of control box and hand control, belonging to external power supply control box. On the right, there is a USB end enabling users to charge up cellphones or something.

Functions

1. Using MOS conductor scheme with gyroscope

2. With reverse brake function, it does not drop under the weight of 400KG

3. 5KG high-precision collision protection, no malfunction

4. Protection to keep left and right level, preventing things on desk from falling

5. When No-load, it can run continuously for 20 minutes without protection

6. It supports Bluetooth and can be controlled by apps and wireless computers

7. System parameters can be modified by PC software

8. To update the program, it’s not necessary to disassemble the shell, or turn on power

9. Quite convenient to check system problems with 30 error codes

10. Electric Elevating Desk Control Box can realize 100% simultaneity, 10,000 operations, 0 error on 2 columns

Comparison of three generations of control boxes made by JS Technology

products	1^st generation	2^ndgeneration	3^rd generation
Number of motors	1,2,3	1,2,3	1,2
Anti-pinch method	Current/torsion sensor	Current + patented sensor	Current + patented sensor
Bluetooth	Support	Support	Support
Multi-machine parallel	not support	Support up to 16	not support
EMC	Pass	Pass	Pass
modify parameters on PC	Support	Support	Support

Types of standing desk control box we produce:

wholesale standing desk control boxes.jpg

wholesale 2-key intergration control box.jpg

Electric lift table control box should have anti-pinch function, that is, it will retreat when it encounters resistance. The sensitivity of control boxes made by Jingshi Technology can be divided into 8 levels to meet the needs of all types of electric lifting tables.

Applications of Electric Elevating Desk Control Box

applications of standing desk control box.jpg
