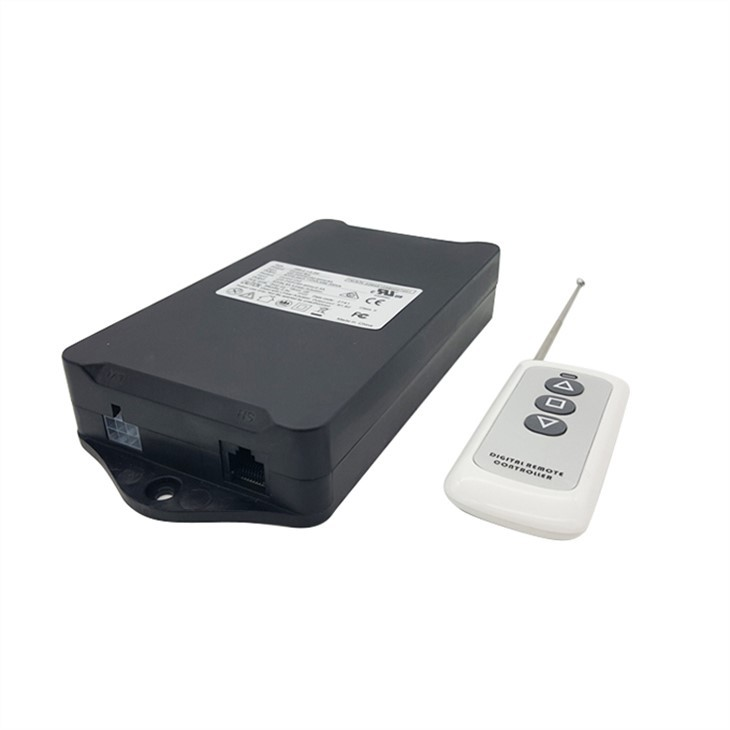

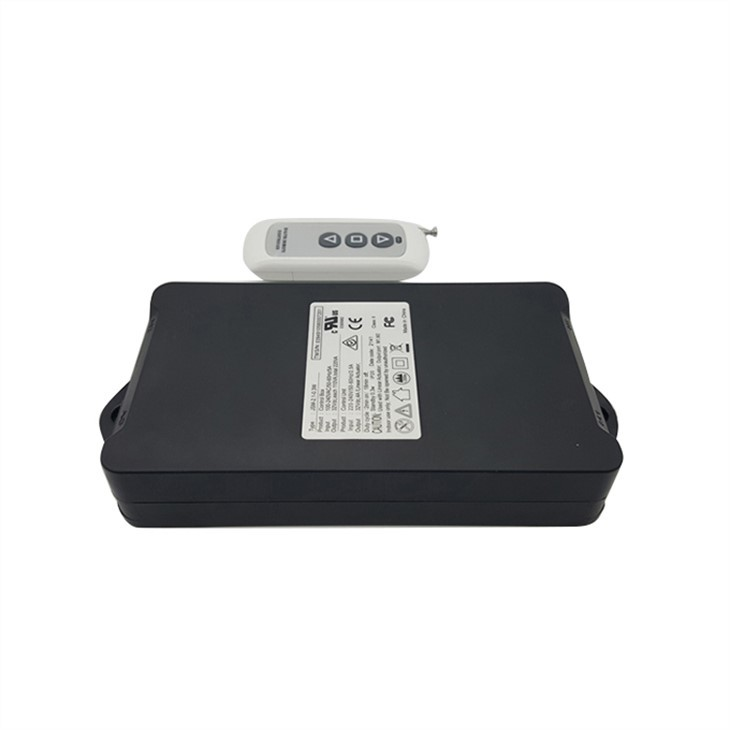

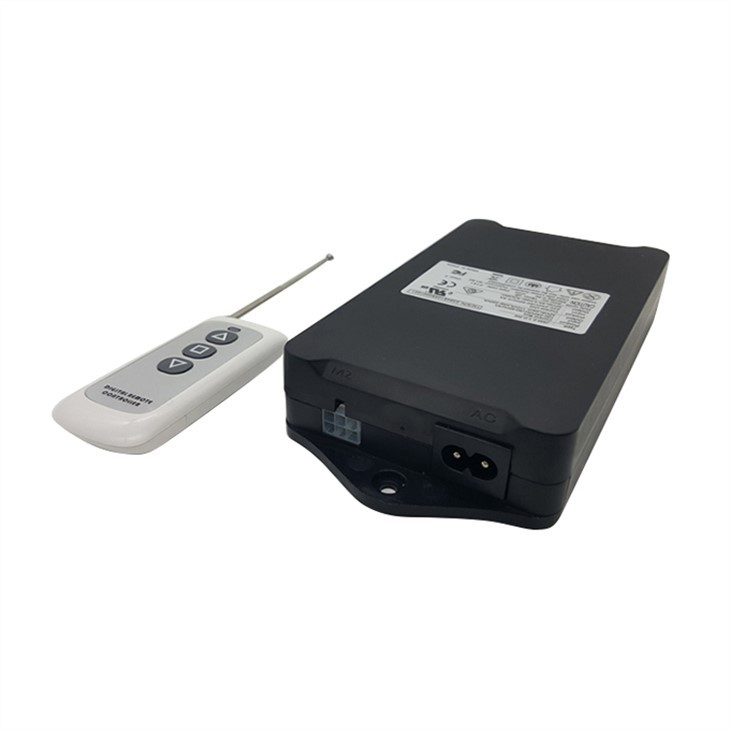

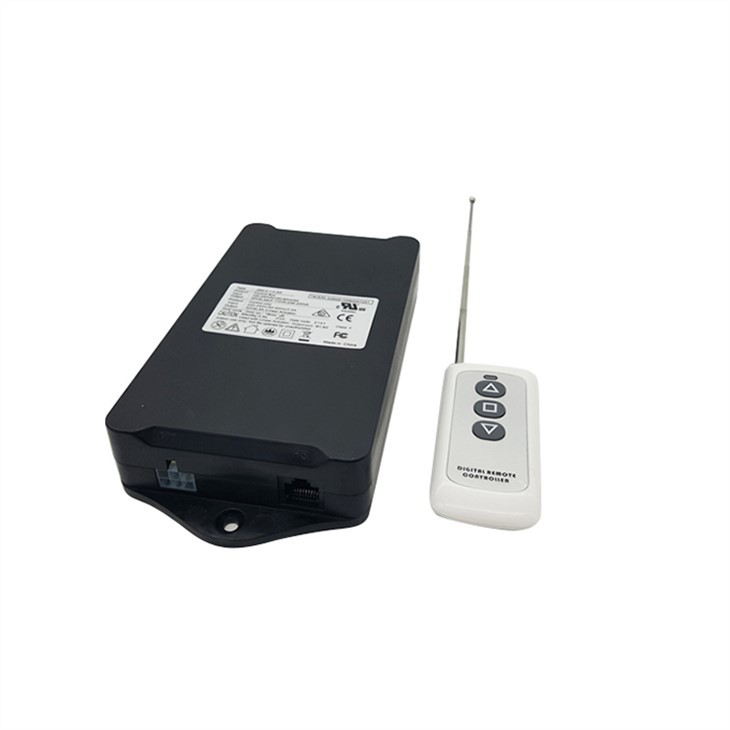

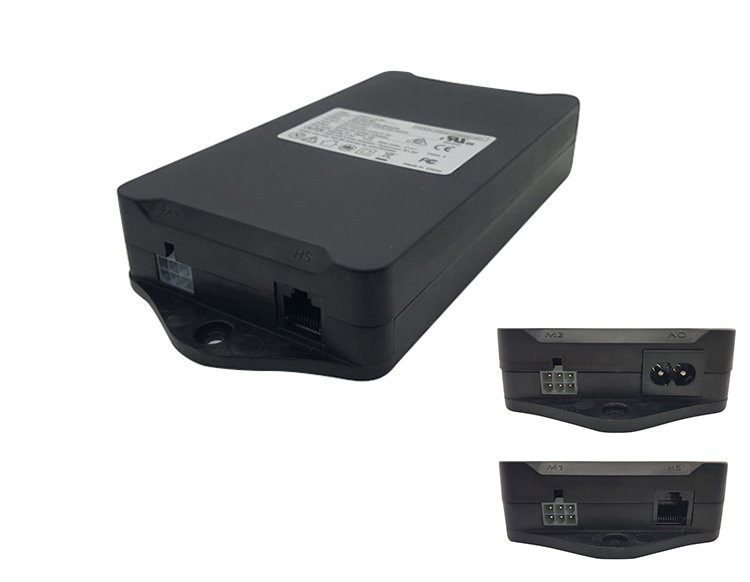

product description of Electric Lifting Desk Control System
· JSM-2.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption

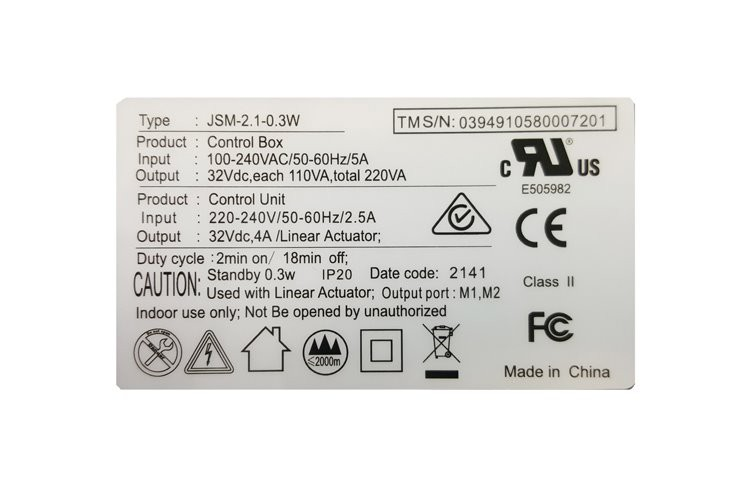

Product parameters
Input voltage | 100-240V |
Maximum power | 350W |
Standby power consumption | 0.3W |
size | 166×95×32mm |
weight | 0.42kg |
Product solutions | MOS scheme |

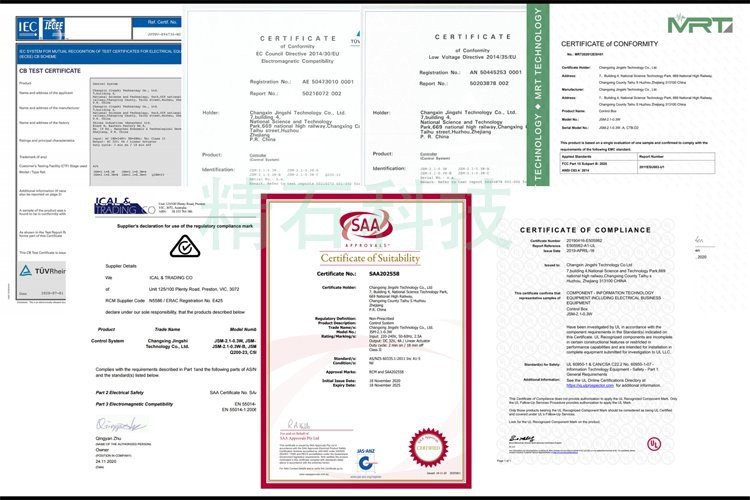

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

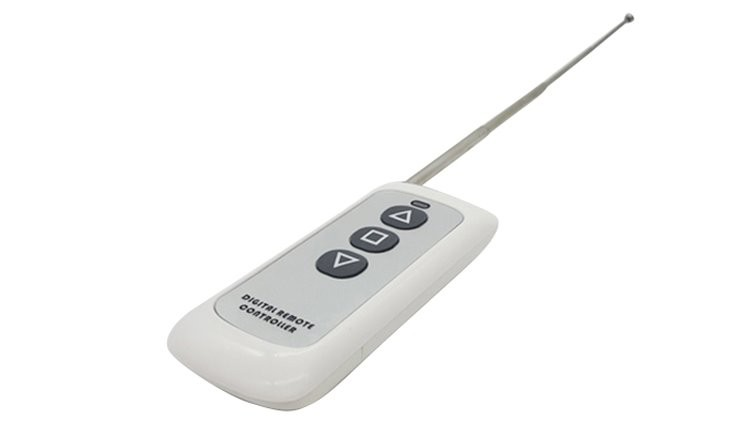

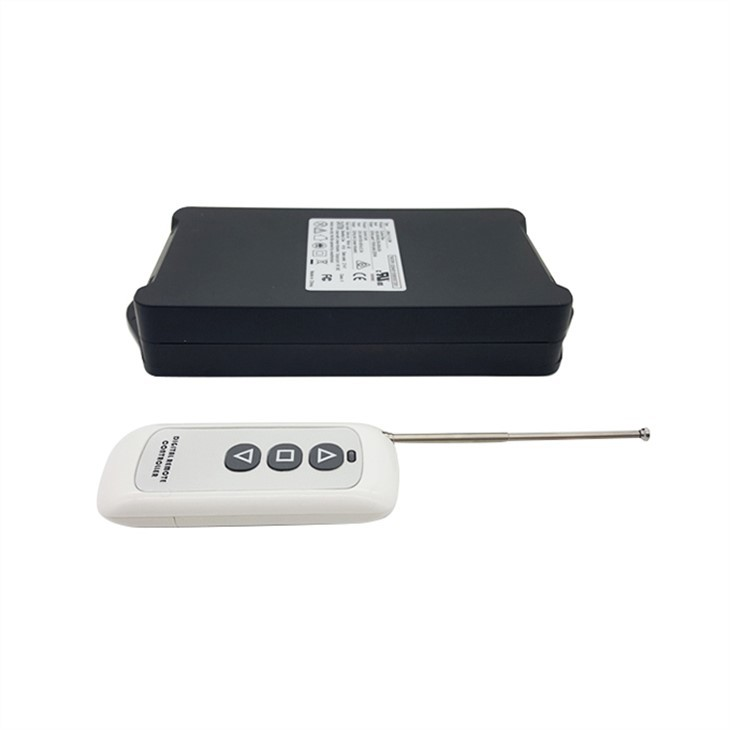

Wireless remote control: This remote control is delicate and light. There are 3 buttons, upward, downward and stop button. The wireless remote control can remotely control the lifting desk within 200m of the receiver. Only a 23A12V battery is needed for power supply.

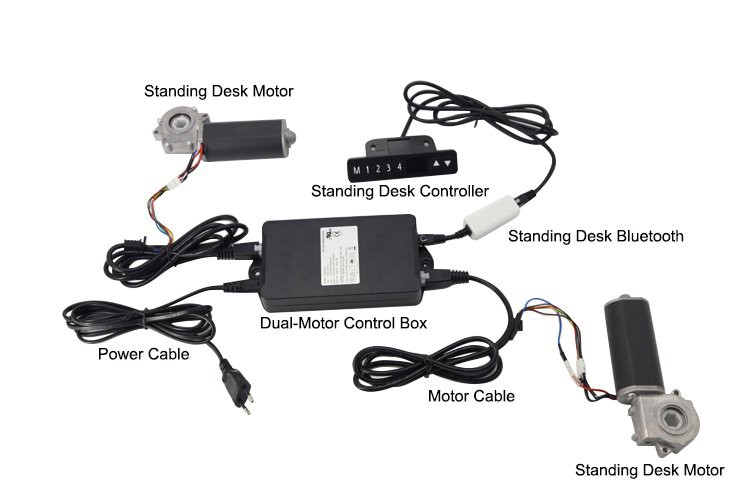

Types of standing desk control box:
Jingshi company makes 1-motor control box, 2-motor control box, 3-motor control box. Up to date, we have innovated 3 generations of control system. We also make hand controllers which can be roughly divided into touch screen controllers and type controllers.Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |

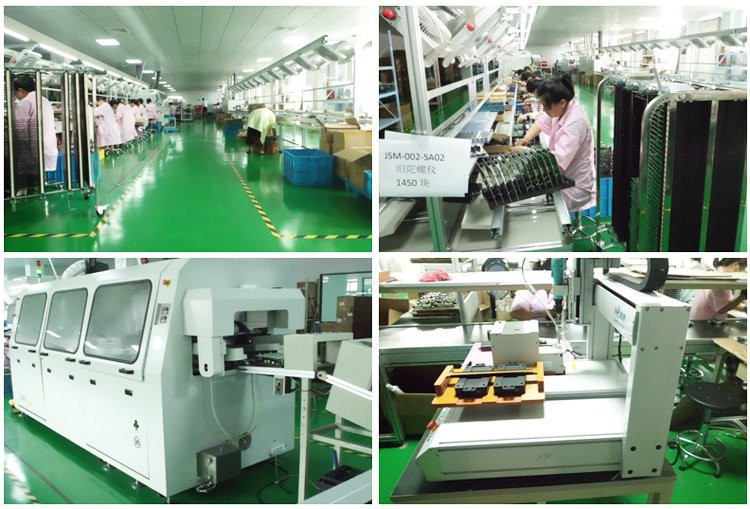

Photos of Changxing Jingshi Technology
Company related introduction: Jingshi company places great emphasis on innovating technology and optimizing procurement channels, and achieves product stability through cooperation with our partners. Our products have independent intellectual property rights and patents, and the products have been sold to more than 10 countries around the world. Products have acquired many global certifications, such as UL, CB, CE, etc. In 2018, Jingshi company was rated by customers as China's leading solution provider concerning adjustable desk control system. Contact us for more information about Electric Lifting Desk Control System.
