product description of Electric Standing Desk Control System

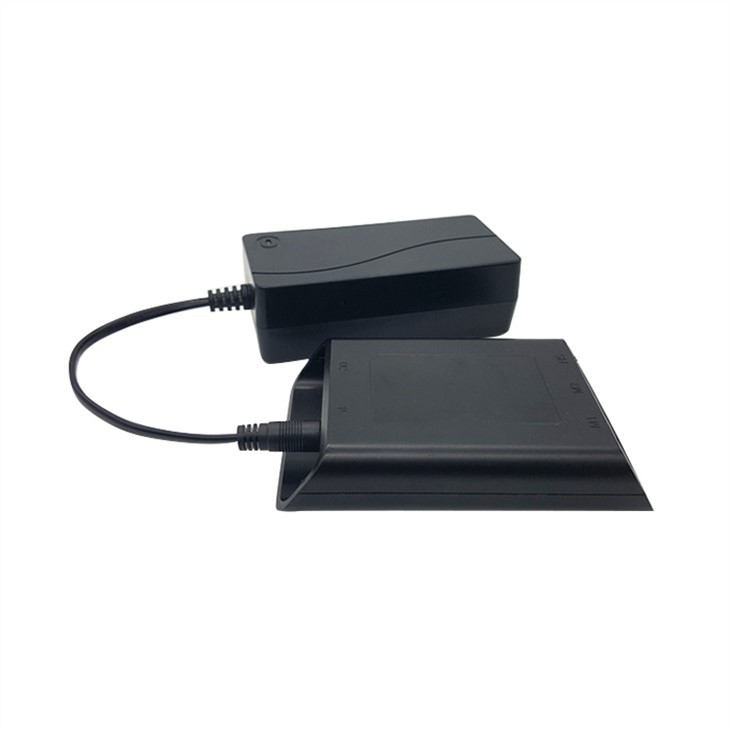

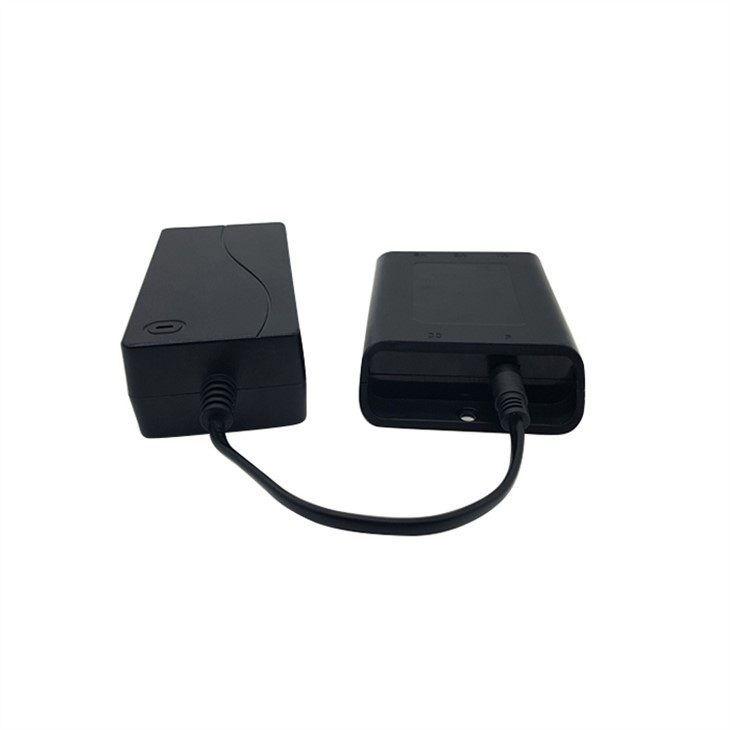

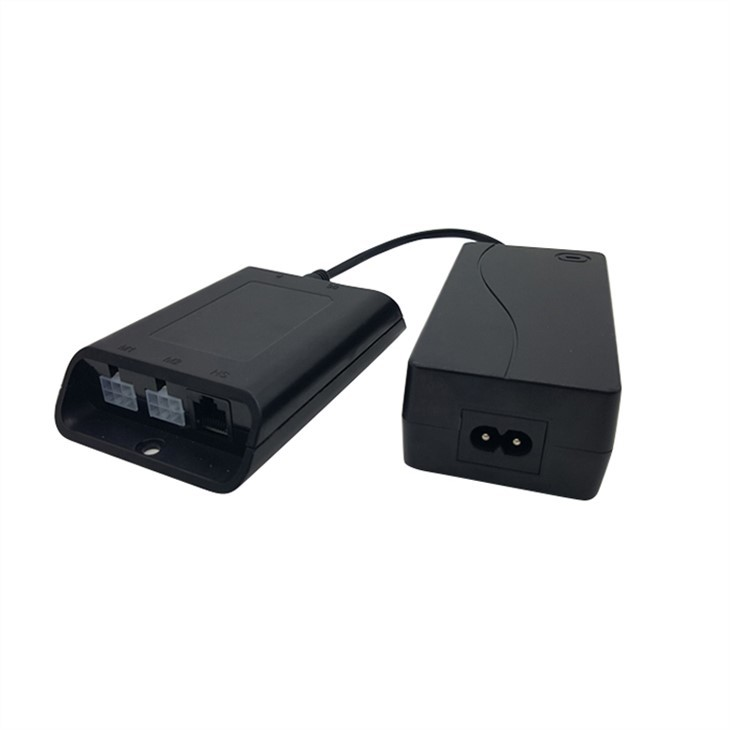

· This control box belongs to 2-motor control box with external power. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
Features
Number of control columns: 1-2
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Overload protection: avoid overload operation by limiting the current to a specific value
Overheating protection, motor open circuit, Hall fault, motor short circuit, low voltage, illegal power failure, illegal plugging and unplugging, excessive desktop tilt angle, anti-pinch upward and downward
Product parameters of Electric Standing Desk Control System
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 123×75×25mm |
Product solutions | MOS scheme |
Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
Using adaptor fixed power supply VS using mobile battery bank
Company related introduction:
Jingshi company places great emphasis on innovating technology and optimizing procurement channels, and achieves product stability through cooperation with our partners. Our products have independent intellectual property rights and patents, and the products have been sold to more than 10 countries around the world. Products have acquired many global certifications, such as UL, CB, CE, etc. In 2018, Jingshi company was rated by customers as China's leading solution provider concerning adjustable desk control system.
