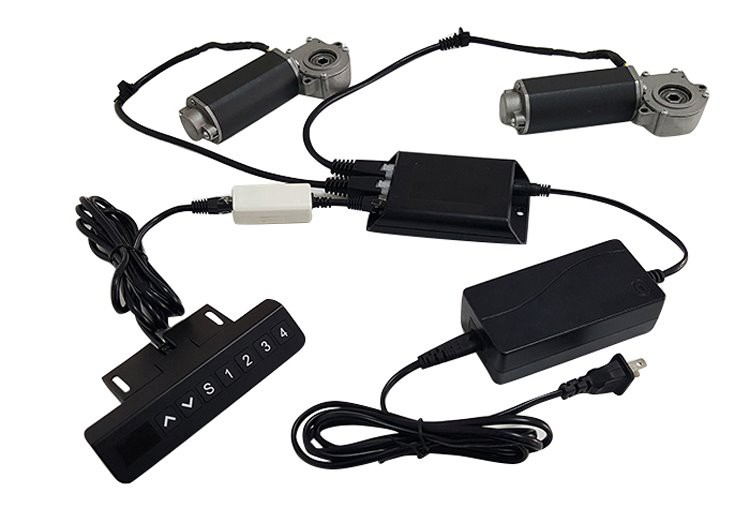

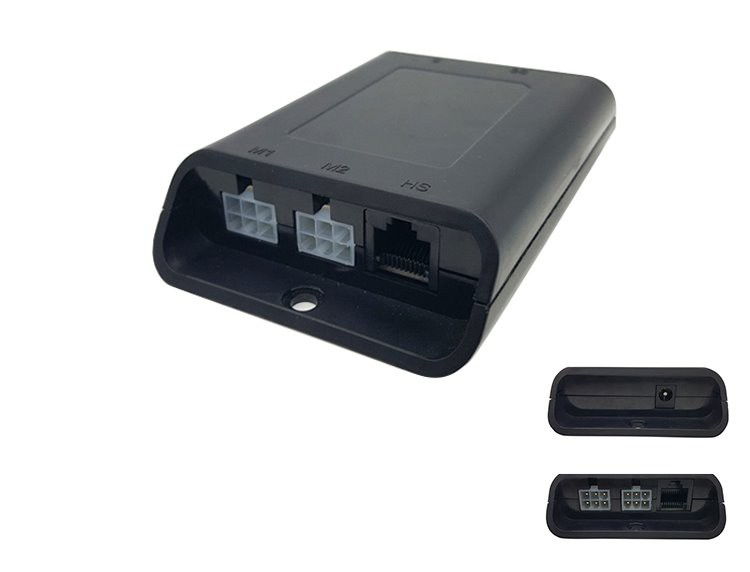

product description of Electric TV lift control box
· This control box belongs to 2-motor control box with external power. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
Features
Number of control columns: 1-2
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Product parameters of Electric TV lift control box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 123×75×25mm |
Product solutions | MOS scheme |

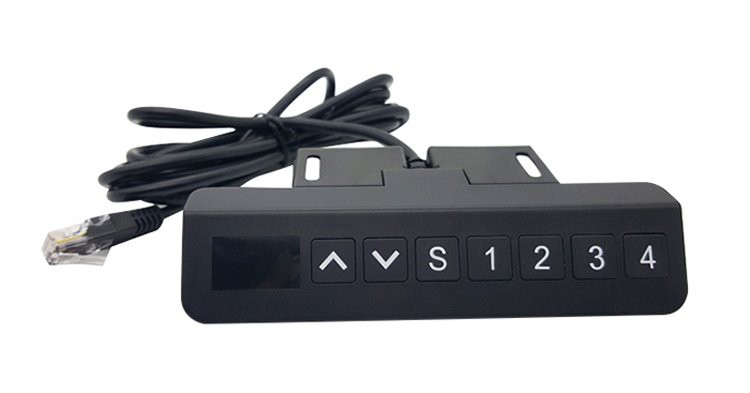

Button Type Standing Desk Hand Controller holds an advantage of 7 buttons, able to memorize 4 different heights. So it’s extremely convenient to adjust the desk to meet your various needs. There is a USB interface on the side enabling users to charge up.

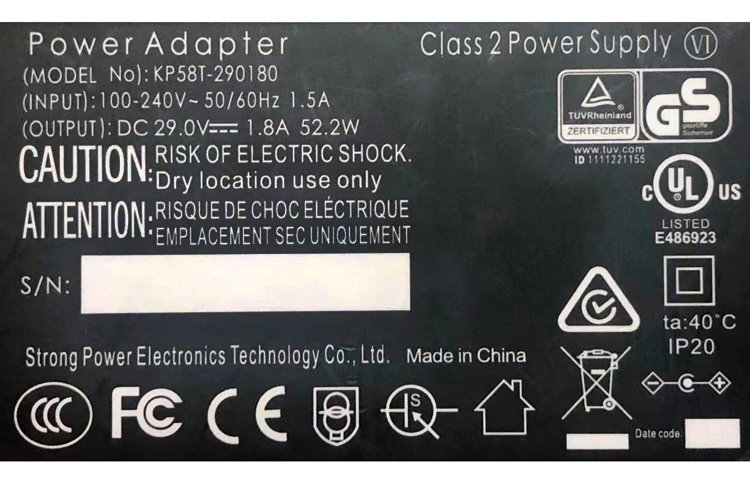

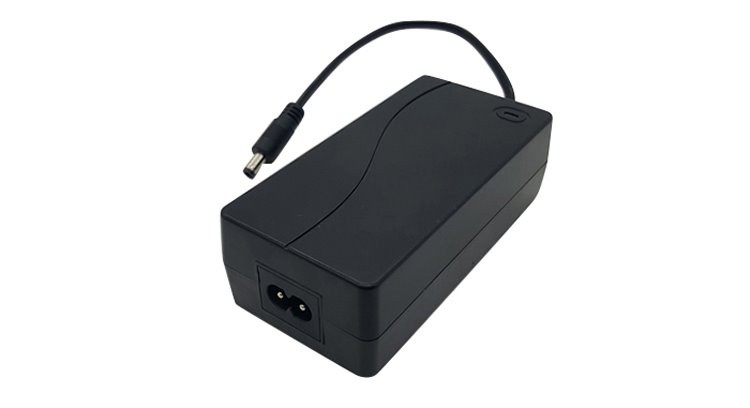

Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |

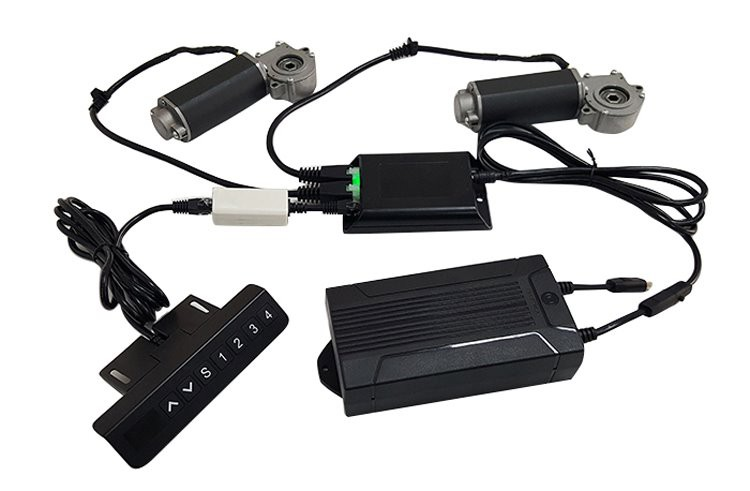

Using adapter VS using battery bank

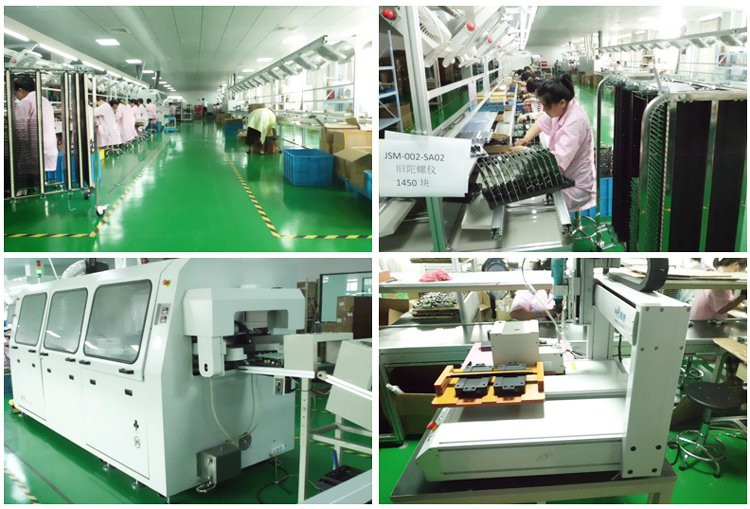

Company related introduction: Jingshi company places great emphasis on innovating technology and optimizing procurement channels, and achieves product stability through cooperation with our partners. Our products have independent intellectual property rights and patents, and the products have been sold to more than 10 countries around the world. Products have acquired many global certifications, such as UL, CB, CE, etc. In 2018, Jingshi company was rated by customers as China's leading solution provider concerning adjustable desk control system.
If you have any questions about Electric TV lift control box, don’t hesitate to contact us.
