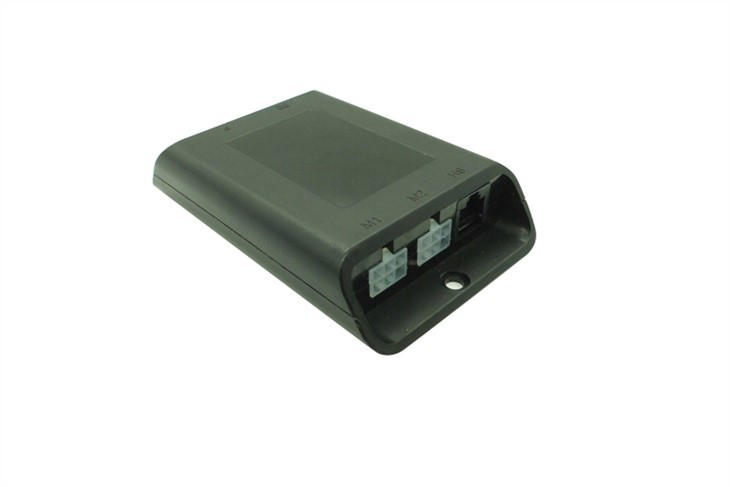

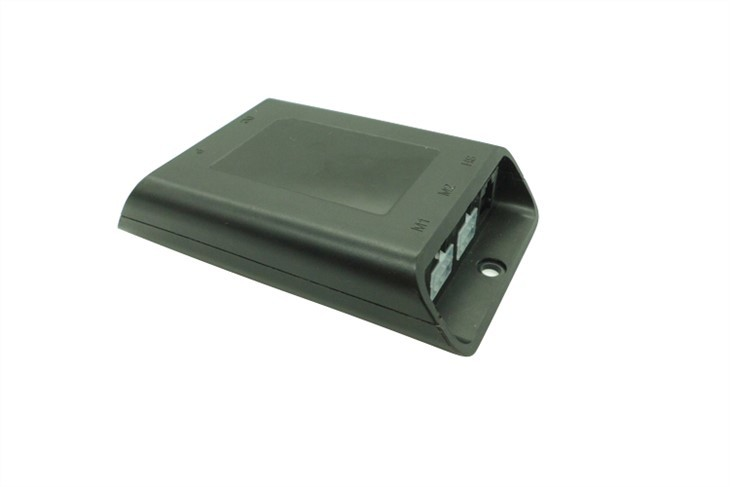

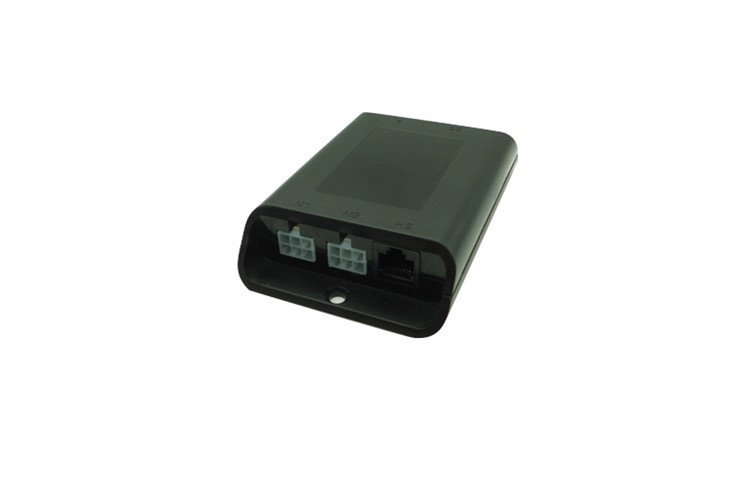

Glass Sit Stand Desk Control Box belongs to 2-motor control box with external power supply. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
Basic property
Input: 24-36V
Output:12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Selling points
1. The chips we adopt are Infineon chips that are imported from Germany
2. The operating distance is precise to 1mm
3. When on standby mode, the power consumption is below 0.3W
4. 100% simultaneity, 10 thousand times of operations without any errors
5. The controller box can support the speed of 60mm per second
6.Our products adopt the latest MOS conductor plan
7. Noise of Glass Sit Stand Desk Control Box is minimum
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Bluetooth | Support | Support | Support |
Multi-machine parallel | not support | Support up to 16 | not support |
EMC | Pass | Pass | Pass |
modify parameters on PC | Support | Support | Support |
protections of control boxes made by Jingshi Technology
Motor open circuit, Hall fault,
motor short circuit, low voltage,
illegal power-off, illegal plugging and unplugging,
desktop tilt angle being too large,
top and bottom anti-pinch
Types of standing desk control box we produce:
Applications of Control Box
Photos of factory:
In 2016, the company's early team began to undertake the first lifting table project and the first generation of relay control systems were shipped abroad in large quantities, with shipments exceeding 10K. Our products received unanimous praise from customers.
The year of 2017 saw the establishment of our first company. And the second-generation Mos tube control system was officially launched. In the same year, JS Technology applied for invention and utility model patents.
In 2018, the Mos tube system was shipped in bulk. At the same time, one-motor, two-motor, three-motor integrated circuit board were massively produced. The market feedback was very good.
If you have any questions about Glass Sit Stand Desk Control Box, don’t hesitate to contact us.
