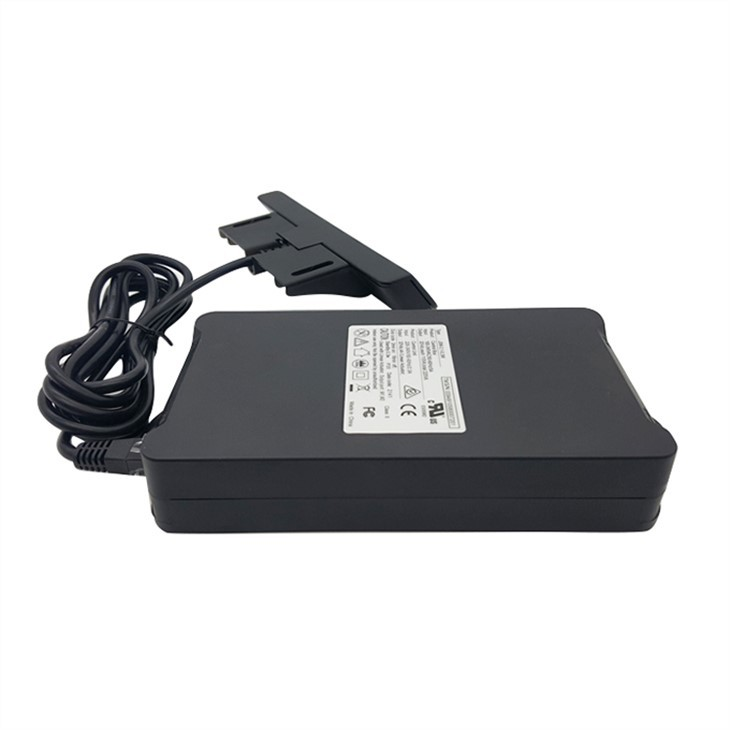

product description of Medical Bed Control Box
· JSM-2.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption
Product parameters
Input voltage | 100-240V |
Maximum power | 350W |
Standby power consumption | 0.3W |
size | 166×95×32mm |
weight | 0.42kg |
Product solutions | MOS scheme |
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

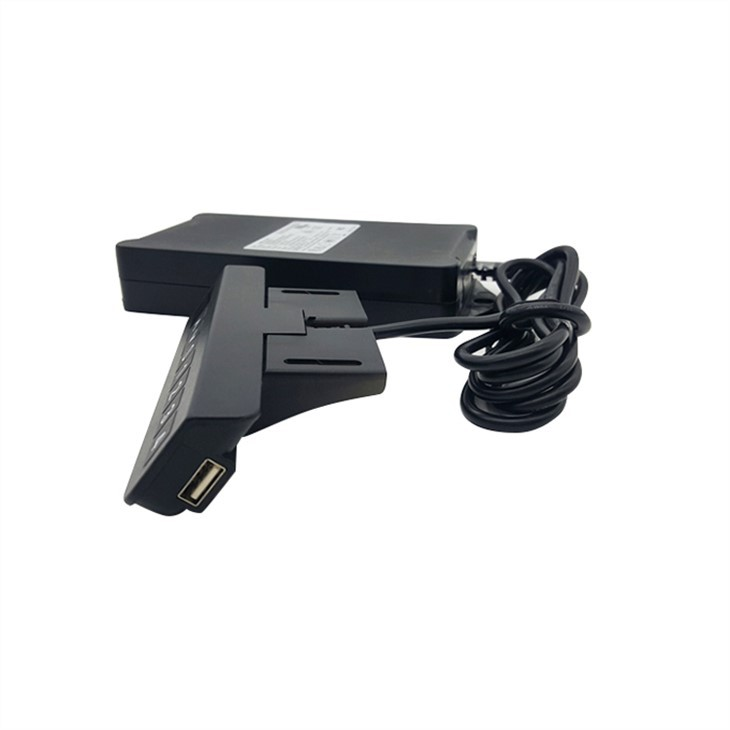

The Standing Desk Hand Control panel holds an advantage of 7 buttons, able to set 4 different heights in memory. There is a USB interface on the side enabling users to charge cellphones.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Photos of Changxing Jingshi Technology
Company related introduction: Jingshi company emphasizes technological innovation and improvement of purchase channels, and collaborate with partners to realize product stability. We hold independent intellectual property rights and patents and develop markets of over 10 countries around the world. Our products have obtained many global certificates, for example UL, CB, CE, etc. In 2018, Jingshi company was evaluated by clients as China's leading solution provider regarding lifting table control system. Contact us for more information about Medical bed control box.
