JSM-000-DHA02-WX00Z
Product Introduction

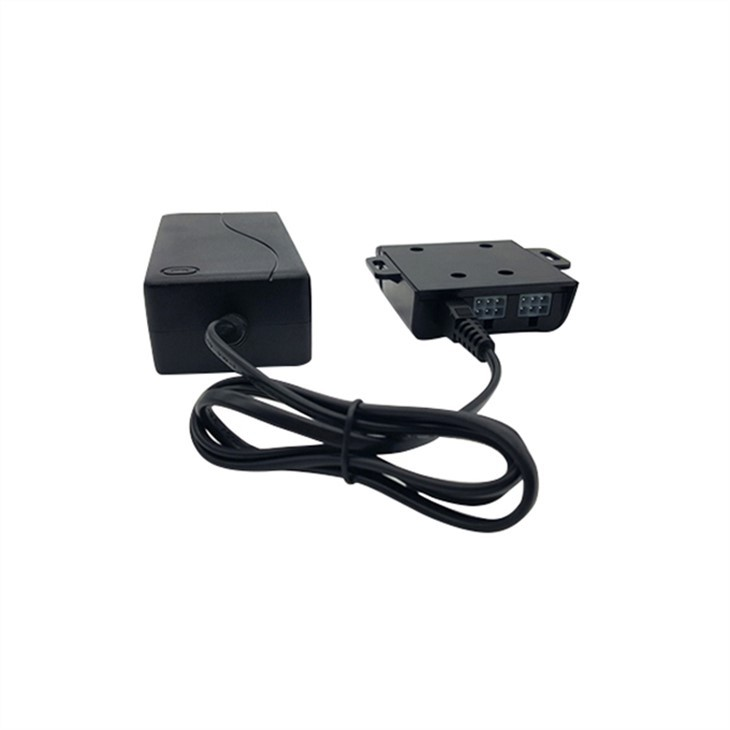

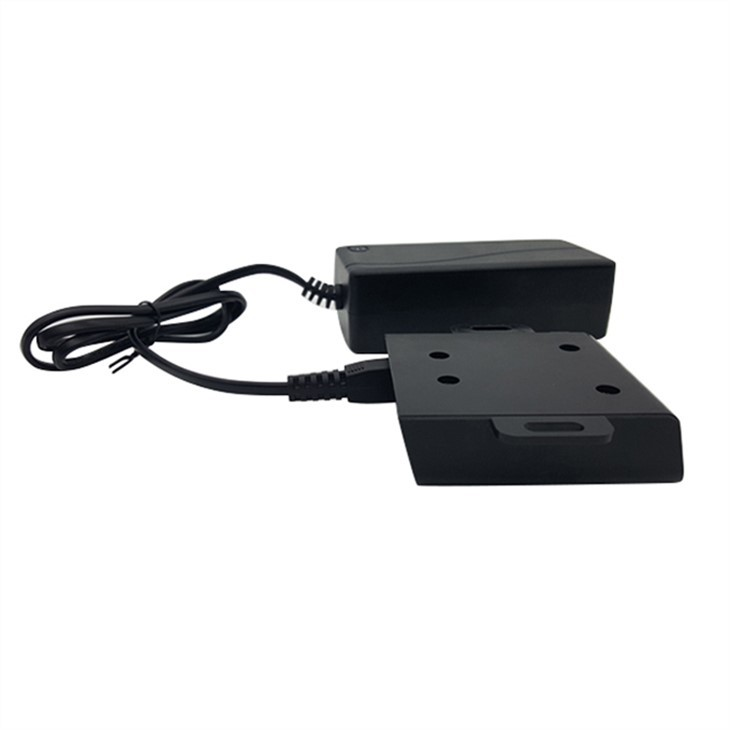

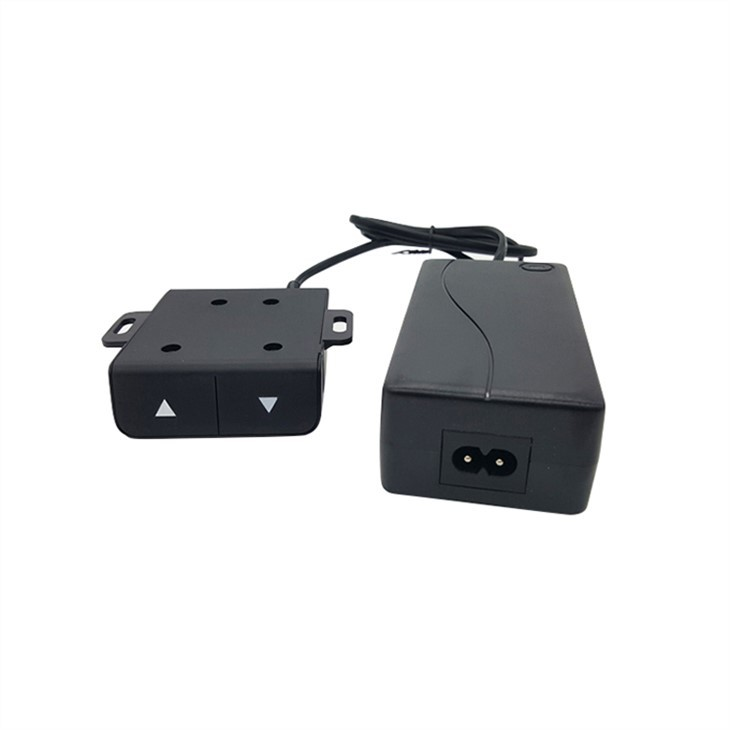

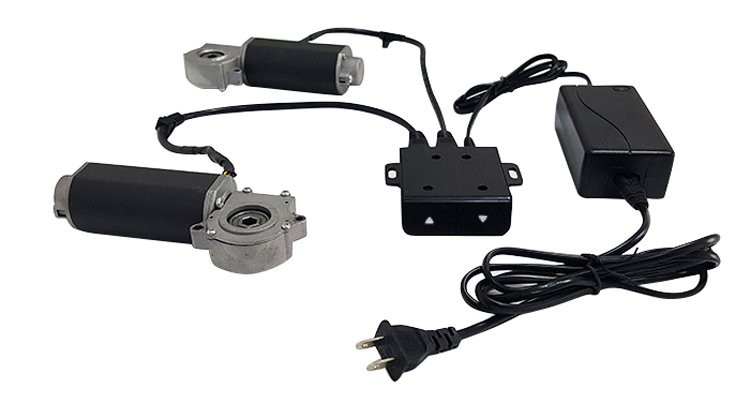

Our electric lifting table control system is an innovative product that ingeniously integrates the control box with manual control functions. It is a dual-motor control box equipped with an external power supply. Compared with other similar control boxes on the market, this product not only achieves organic integration of functions but also breaks through traditional limitations, significantly reducing its volume while delivering powerful performance in a compact design. With its unique design and excellent practicality, it has redefined industry standards, bringing users a more convenient and efficient experience.

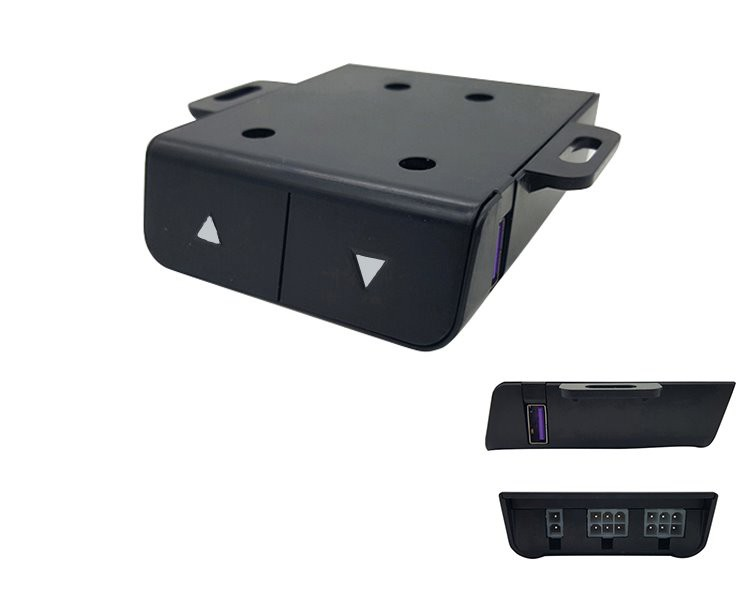

Product Features
• Optional single/double motor control
• Two buttons (left and right)
• No digital display
• Custom silk-screen printed logo
• Optional USB charging
升降桌控制箱产品参数
Input Voltage | 24-36V |
Output Voltage | 12-32V |

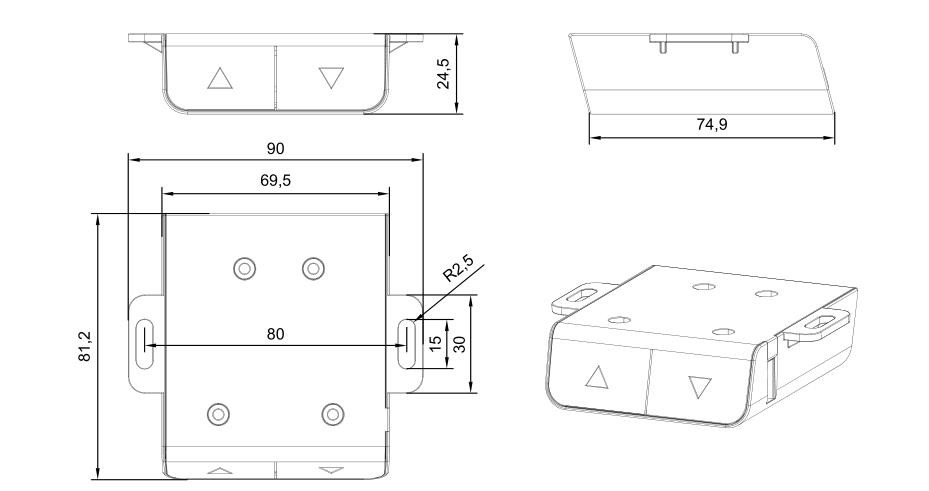

Size | 69×82×25 Millimeter |
Product Solution | MOS Scheme |

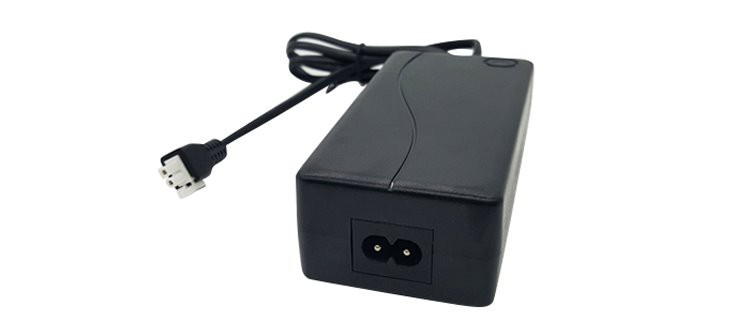

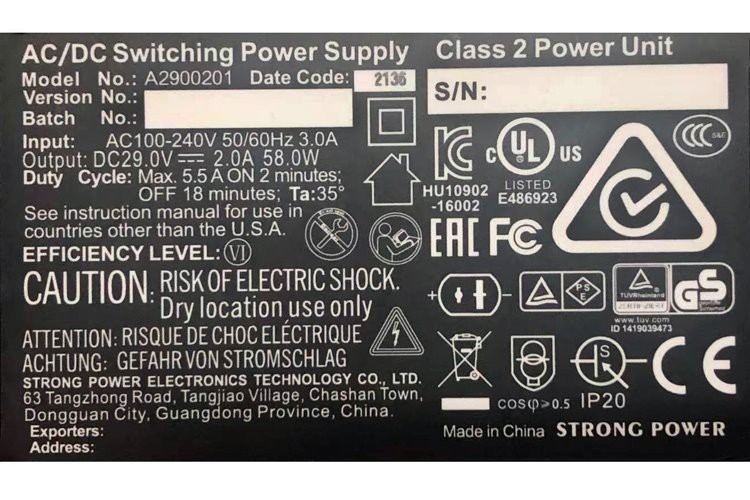

Adapter Specifications:
1. Input Parameters: 100-240VAC/50-60Hz
2. Output Parameters: 29V 1.8A
3. Maximum Power: 150W
4. Working Mode: 2 minutes ON : 18 minutes OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
Application Scenarios
1. Multi-Station Lifting Table Systems in Shared Workspaces
Designed for shared work environments, this solution is ideal for scenarios requiring centralized control and unified power distribution of multi-user lifting tables via a single power supply and transfer box. It effectively enhances space management efficiency and equipment coordination.
2. OEM & ODM Custom Table Frame Projects
Highly compatible with OEM/ODM custom table frame development, it supports seamless integration with various adjustable table frames. With an open control logic architecture, it offers table frame manufacturers full flexibility for secondary development, enabling easy functional customization and adaptive adjustments to help create differentiated products.
