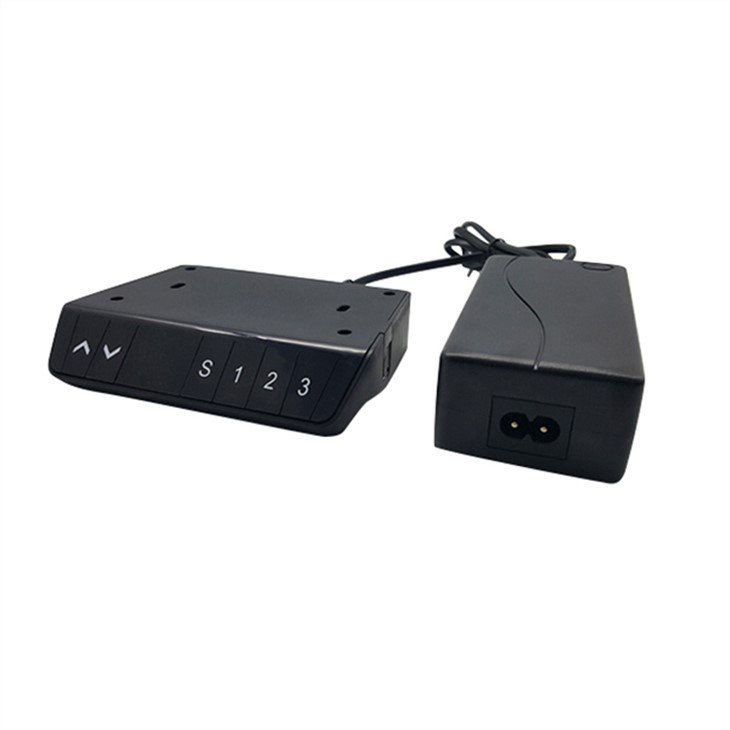

Motorized Lifting Desk control box integrates the functions of control box and hand control, belonging to 2motor control box with external power. The linear drive control box we produced is widely used in the fields of brush motors and brushless motors, such as lifting desks, garden tools, medical beds and massage chairs. According to ergonomics and customers’ needs, customized software is available here, which enables users to manage the entire system through software programs, achieving the expected various movements.
Product parameters of Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 69×82×25mm |
Product solutions | MOS scheme |
Selling points of Motorized Lifting Desk control box
1. Infineon chips imported from Germany
2. The running distance is accurate to 1mm
3. Low noise
4. Low standby power consumption, less than 0.3W
5. Adopt the cutting-edge MOS conductor scheme
6. Able to support the speed of 60mm per second
7. 100% simultaneity, 10,000 operations, 0 error on 2 columns
Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
Company related introduction: Jingshi Technology has two companies, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. We have specialized in the electric lift table industry for more than 6 years; therefore, we have a deeper understanding of it. We can provide customers with high-quality services and fine products, and can provide customers with a strong backing for expanding markets. We are looking forward to build long-term partnership with all enterprises and achieve win-win situation with all partners.
