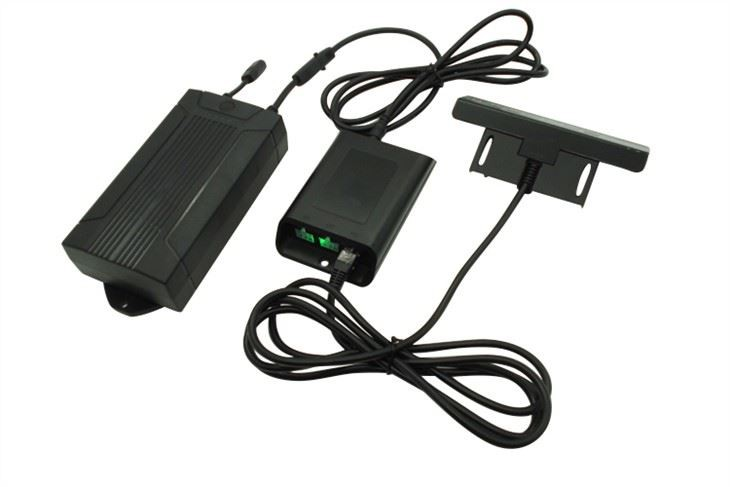

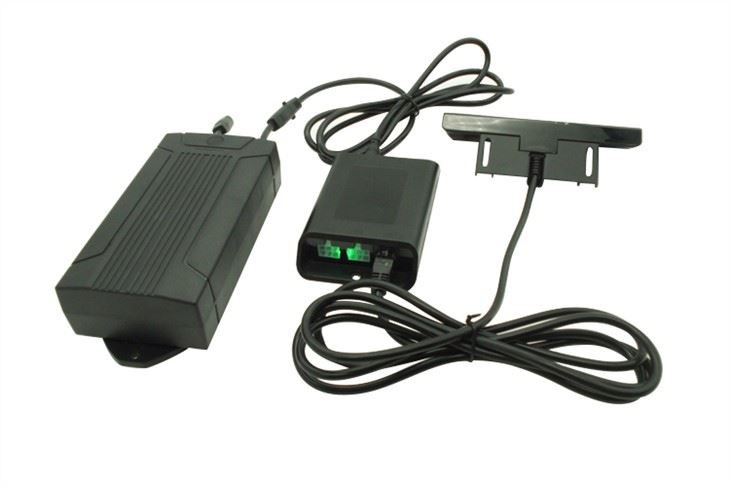

Movable Desk Control Box belongs to 2-motor control box with external power supply. It features small size, full voltage and high power. Using power bank enables you to move your desk at your will. And the keypad can memorize 4 different positions.
The linear drive control boxes we produced is widely used in the fields of brush motors and brushless motors, such as lifting desks, garden tools, medical beds and massage chairs. According to ergonomics and customers’ needs, customized software is available here, which enables users to manage the entire system through software programs, achieving the expected various movements.
Basic property
Input: 24-36V
Output:12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Functions
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 400KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9.It's quite convenient for Movable Desk Control Box to check system problems with 30 error codes
10. 100% simultaneity, 10,000 operations, 0 error on 2 columns
Basic property of Rechargeable Battery Pack:
1. Output parameters: 29V2.2A
2. Maximum output parameter: 29V5.5A
3. Enter the charging parameters: 29V1.8A
4. Maximum charging parameters: 29V0.5A
5. Battery capacity; 2200MAH
When connected to the adapter, the battery pack can be charged. It can be fully charged in about 5 hours. When in use, connect the battery pack and the control box (external power) with a wire so that the battery pack works as a mobile power source to supply power to the control box. Currently, battery packs are mainly used for control boxes (external power).

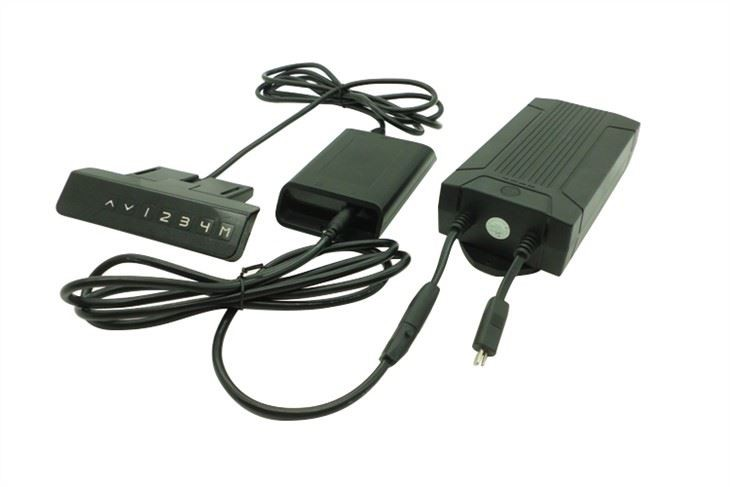

This Hand Controller holds an advantage of 7 buttons, able to set 4 different heights in memory. There is a USB interface on the side enabling users to charge up.
Types of standing desk control box we produce:
Applications
Photos of factory:
