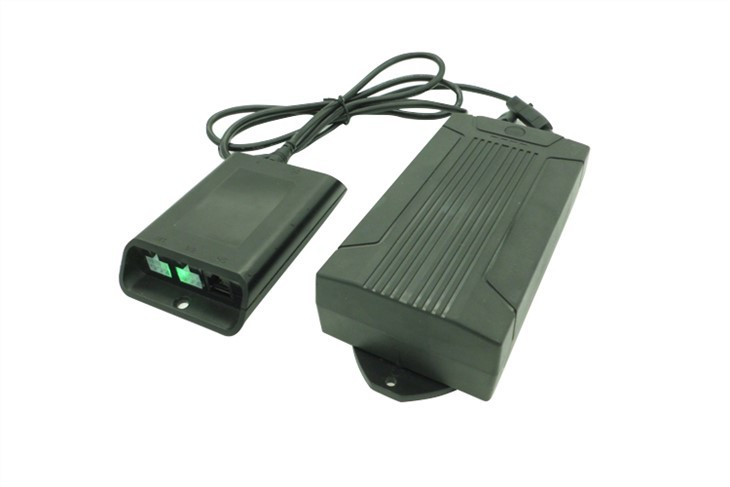

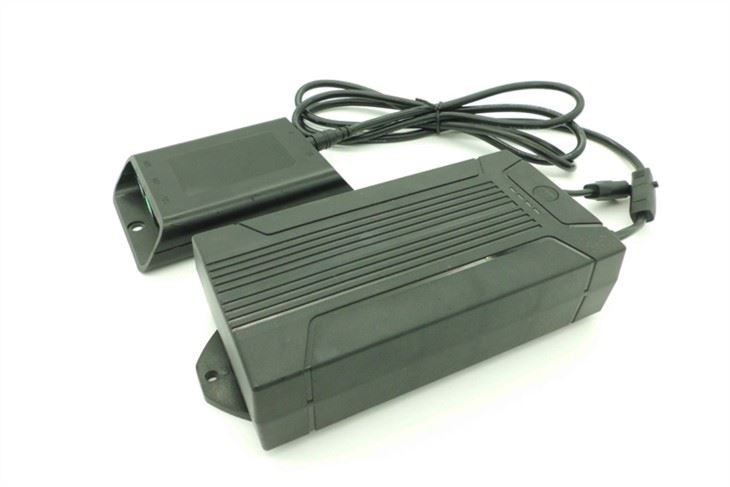

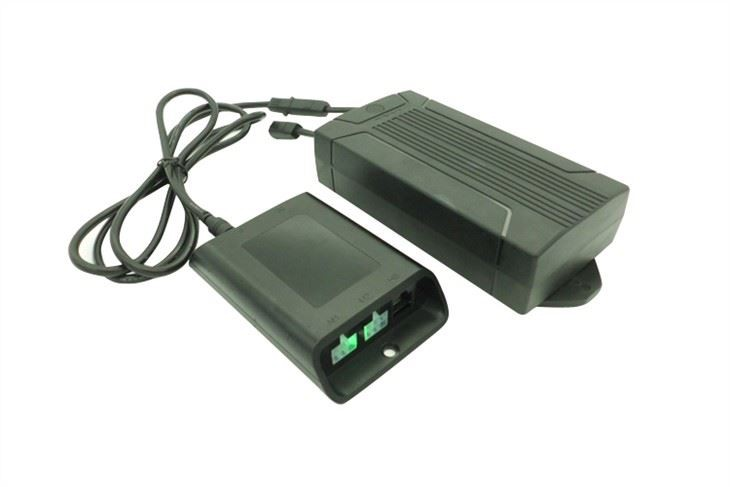

Basic property of Powered Adjustable Desk Control Box
Input: 24-36V
Output:12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Functions of Powered Adjustable Desk Control Box
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 400KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
10. 100% simultaneity, 10,000 operations, 0 error on 2 columns
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
Battery pack:
1. Output parameters: 29V 2.2A
2. Maximum output parameter: 29V 5.5A
3. Enter the charging parameters: 29V 1.8A
4. Maximum charging parameters: 29V 0.5A
5. Battery capacity; 2200MAH
Types of standing desk control box we produce:
Applications of Powered Adjustable Desk Control Box:
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.
