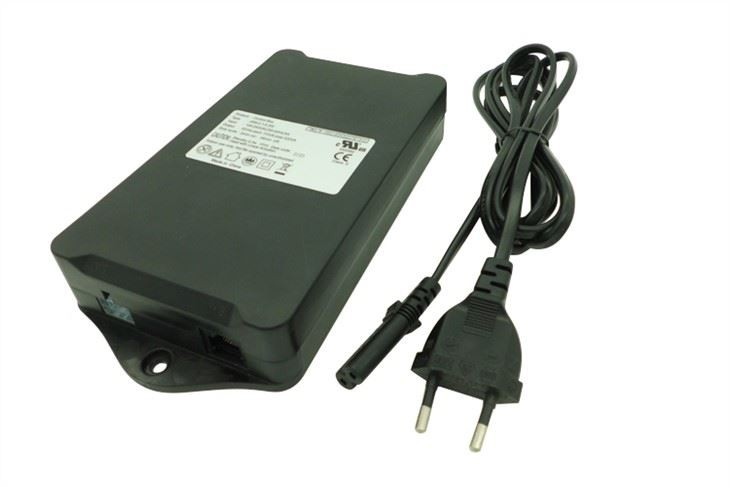

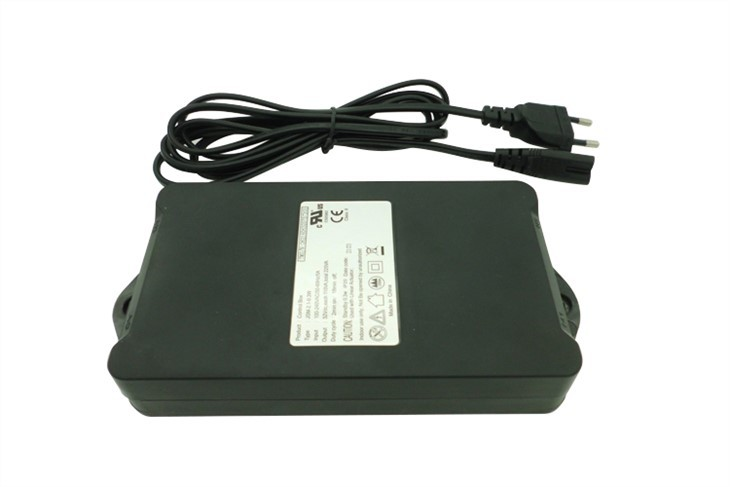

Basic property of Raising Desks Control Box
Maximum power: 350W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 400KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
10. Raising Desks Control Box ensures 100% simultaneity, 10,000 operations, 0 error on 2 columns
Parameters of Europe Power Cable
1. Rated voltage: 250VAC
2. Rated current: 2.5A
3. Plug type: VDE
4. Connector type: IEC C7
5. Wire core size: 2*0.75mm
6. Material used: H03VVH02-F
7. Wire temperature resistance: 105
Types of standing desk control box we produce:
Applications
Our products are applicable to adjustable desks, massage chairs, massage sofas, electric medical beds, electric leisure beds, smart home and voice recognition.
Photos of factory:
FAQ
1. Can the products be tailored? Can you do OEM and ODM?
Sure. All products can be customized according to users’ needs, and we support both OEM and ODM.
2. How long does it take to finish mass production? What is the MOQ?
After order details and production are confirmed, 30-35days.
MOQ=1000 pieces
3. Can I get some samples ? Is it free?
We can offer a few samples for free, and the transport cost is on clients.
Don’t hesitate to contact us if you have any questions about Raising Desks Control Boxes.
