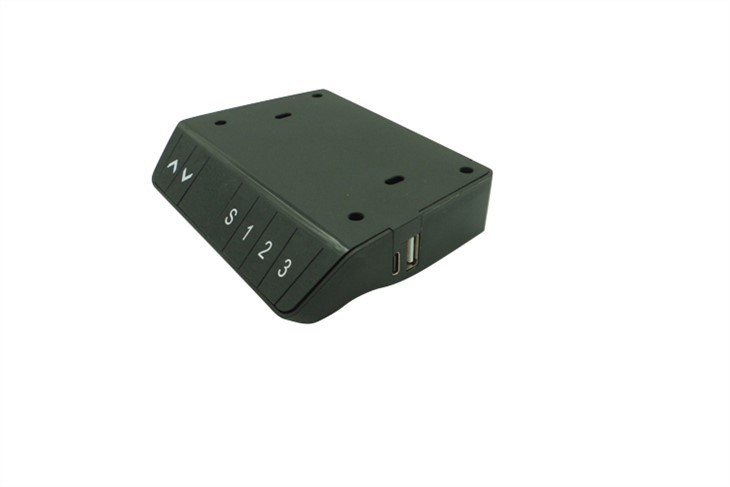

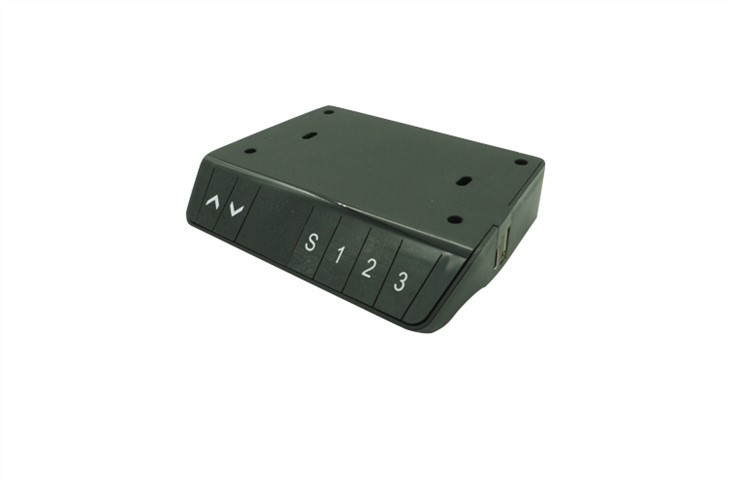

Sit And Stand Adjustable Desk Control Box is our new product launched in 2021. It belongs to 2-motor control box with external power supply combining the control box and switch panel together.
In the front, there are 6 keys that can control the desk rising or falling.
Basic property
Input: 24-36V
Output: 12-32V
Number of keys: 6
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor

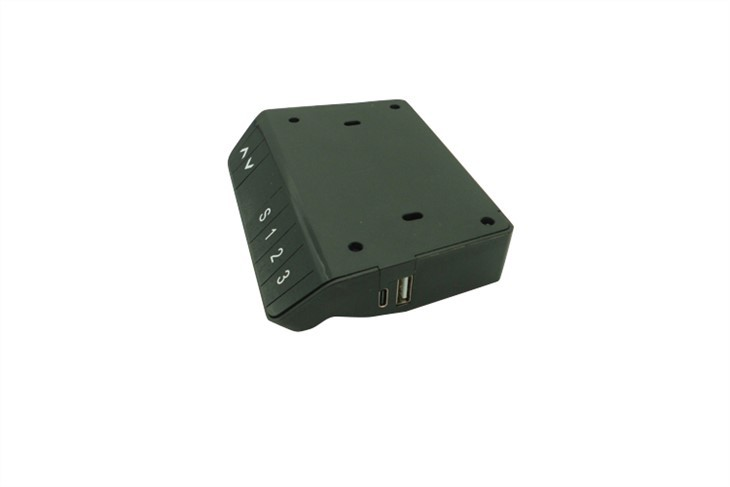

In the front, there are 6 keys which make it can memorize 3 different heights, so it’s very easy to adjust the table to the height suitable for you. At the back, It can connect to motors just as common control boxes do. On the right, there are two ends allowing users to charge up cellphones or something.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Bluetooth | Support | Support | Support |
Multi-machine parallel | not support | Support up to 16 | not support |
EMC | Pass | Pass | Pass |
modify parameters on PC | Support | Support | Support |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Types of standing desk control box we produce
Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. The dual-motor controller can also be divided into two kinds: dual-motor controller with 2 interfaces on single side and dual-motor controller with 2 sockets on two sides. Products can also be customized according to users’ needs.
Besides, Jingshi company produces matching hand controls and accessories, including rechargeable battery packs, bluetooth, adapters and cables.
Applications
Sit And Stand Adjustable Desk Control Box is applicable to lifting tables, massage chairs, massage sofas, electric medical beds, electric leisure beds, smart homes and voice recognition.
Unknown application areas:
The linear drive system can be customized and developed according to customer requirements.
Photos of factory:
Aging test
Adopting the aging system innovated by Jingshi company together with resistance, we conduct aging test of a certain period on the power and drive of control boxes. The aging test simulates the rising and falling working conditions of the lifting table during normal operation. At the same time, the aging system can monitor the voltage of control boxes, the output current of each circuit, the temperature of control boxes, the duty cycle of the control box output and other parameters. Should any anomaly occurs during aging, an alarm notification will be made in real time, reminding that the control box is abnormal. The shipped products are 100% aged for 2 hours.
FAQ
1. Do the products have corresponding patents and certifications?
Sure. We hold independent intellectual property rights of computer software and patents of anti-pinch adjustable desks. Our products have acquired many certifications, such as TUV, CB, CE, UL, FCC, PSE, SAA, C-TICK, KC and CCC.
2. Can the products be tailored? Can you do OEM and ODM?
Sure. All products can be customized according to users’ needs, and we support both OEM and ODM.
Contact us for more information about Sit And Stand Adjustable Desk Control Box.
