Sit Stand Desk Dual Motor Control Box

5 0 Reviews
Sit Stand Desk Dual Motor Control Box integrates the functions of control box and hand control, belonging to 2-motor control box with external power supply. In the front of the Control Box, there are 2 keys that can control the desk rising or falling. At the back, It can directly connect to motors...
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

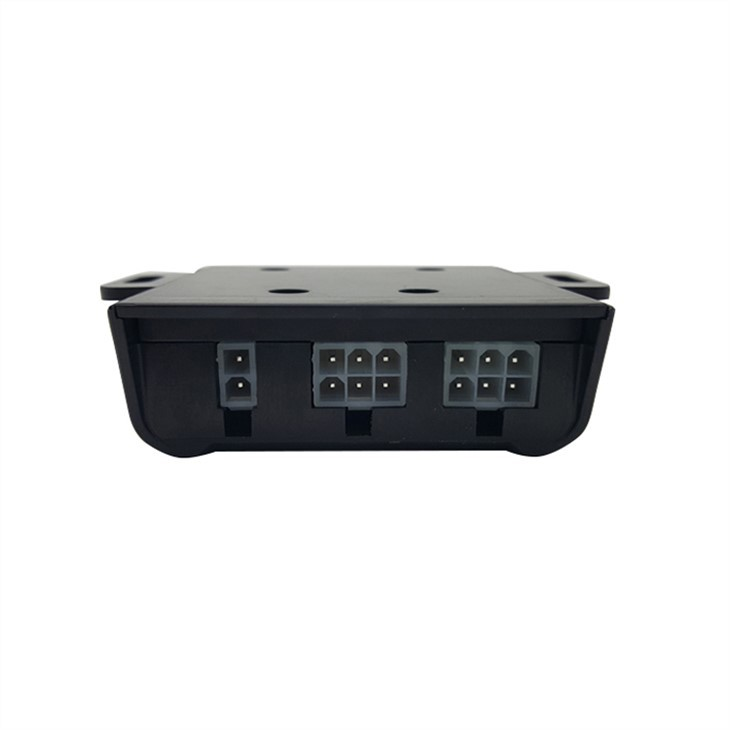

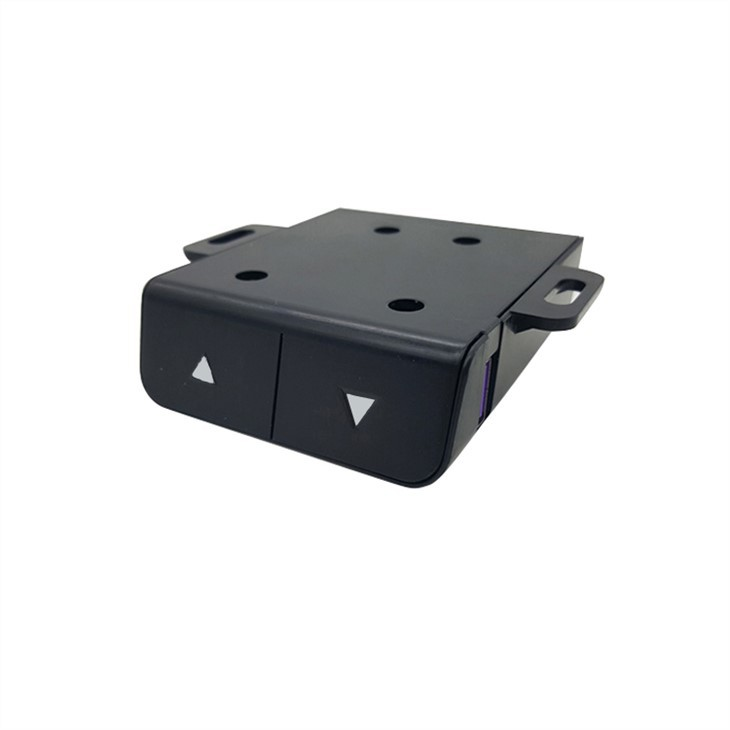

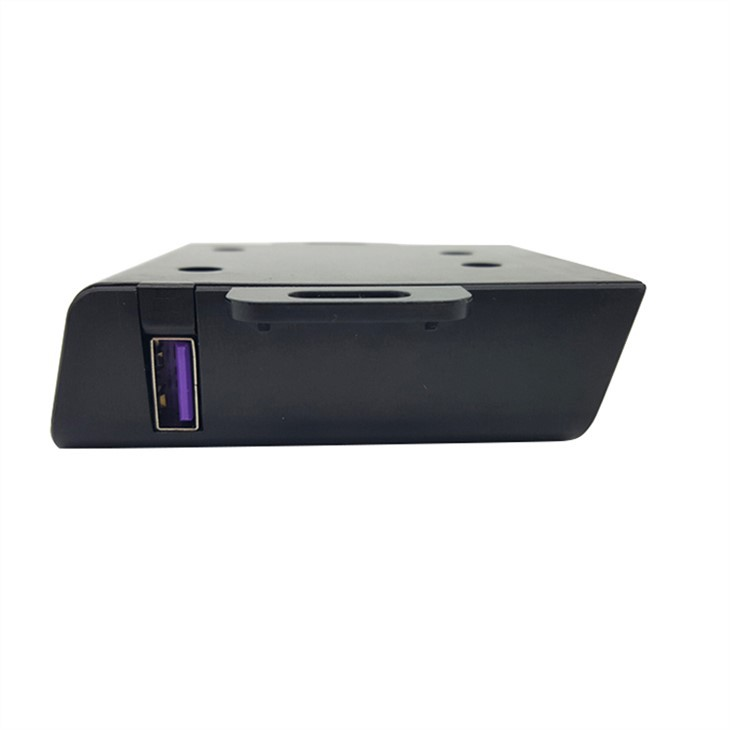

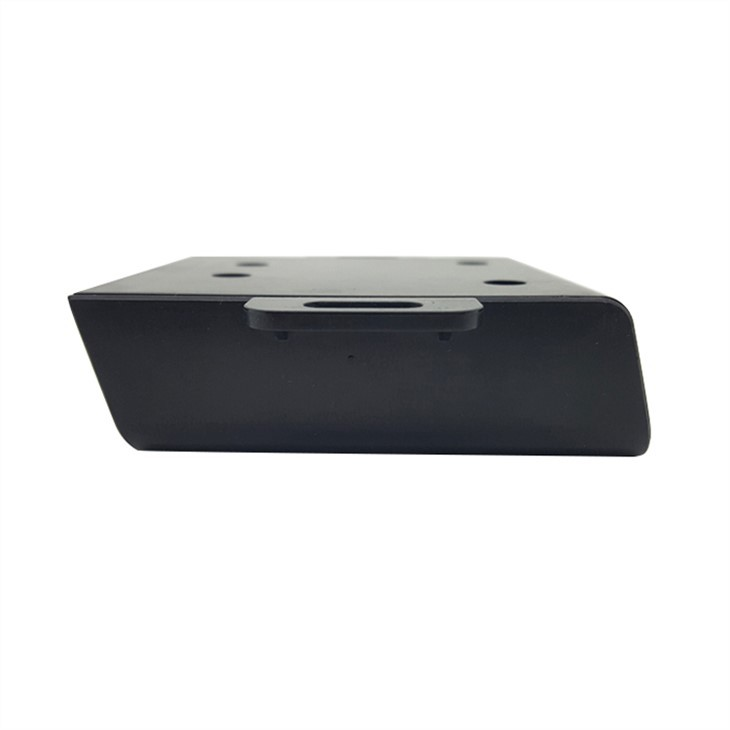

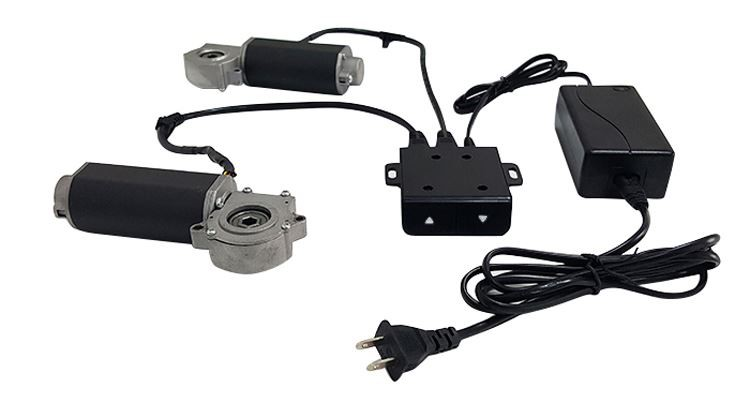

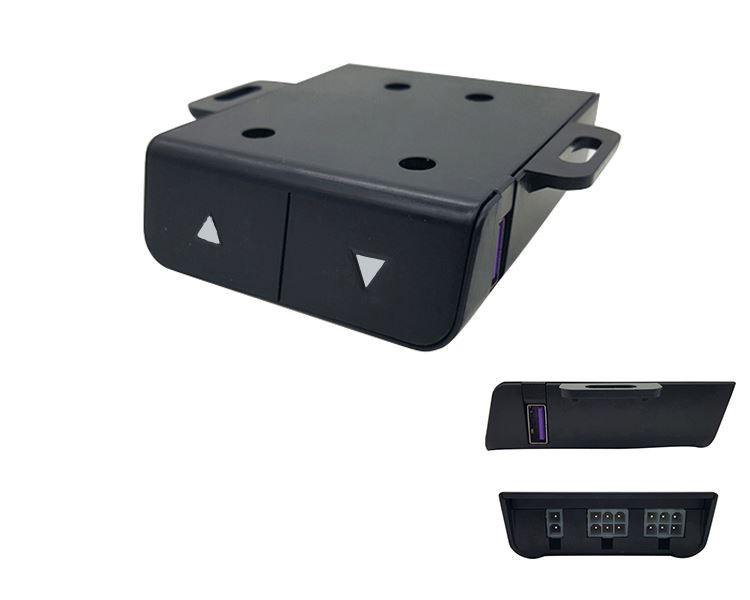

Sit Stand Desk Dual Motor Control Box integrates the functions of control box and hand control, belonging to 2-motor control box with external power supply. In the front of the Control Box, there are 2 keys that can control the desk rising or falling. At the back, It can directly connect to motors just as common control boxes do. On the right, there is a USB end enabling users to charge up cellphones or something.


China 2-key standing desk controller

Product parameters of Control Box



Input voltage

24-36V

Output voltage

12-32V

size

69×82×25mm

Product solutions

MOS scheme

Selling points

1. The chips we adopt are Infineon chips that are imported from Germany

2. The operating distance is precise to 1mm

3. 100% simultaneity, 10 thousand times of operations without any errors

4. When on standby mode, the power consumption is below 0.3W

5. Our products adopt the latest MOS conductor plan

6. The controller box can support the speed of 60mm per second

7. Noise is minimum



Types of standing desk control box we produce:

wholesale standing desk control boxes

wholesale 2-key intergration control box

Company related introduction: Jingshi Technology has two companies, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. We have specialized in the electric lift table industry for more than 6 years, therefore, we have a deeper understanding of it. We can provide customers with high-quality services and fine products, and can provide customers with a strong backing for expanding markets. We are looking forward to build long-term partnership with all enterprises and achieve win-win situation with all partners. If you have any questions about Sit Stand Desk Dual Motor Control Box, don’t hesitate to contact us.




Previous:
Next:

Related Products

Model JSM-2.1-0.3W
Input 100-240V 50/60Hz, 5A
Output 32Vdc, each 110VA, total 220VA
Maximum power 350W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL, UKCA, SAA, KC
0
0
Model JSM-4.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 32Vdc, each 110VA, total 220VA
Maximum power 600W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-1.1-0.3W
Input 100-240V 50/60Hz, 2.5A
Output 24Vdc, each 100VA
Maximum power 150W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-3.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 24Vdc, each 110VA, total 330VA
Maximum power 450W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Angular design, with 1.5m connection cable
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Compact and flexible design, with 1.5m connection cable
0
0
Piano key design with background light
Lifting function,3 memory positions can be selected
Optional USB charging
Strong design technology, with 1.5m connection cable
0
0
Bluetooth support
OLEO display, rich menu
With two memory buttons
Smart appearance, RGB light effect
Up and down operation mode is flexible and fast
The startup Logo is displayed. Can customize the logo
0
0
Bluetooth support
With two memory buttons
Smart appearance, RGB light effect
Slim touch keys with background light
Supports max 18W Type-c fast charging
OLEO display, rich menu, Can customize the logo
0
0
OLEO display, rich menu
The knob can be pressed as a key
Knob comes with RGB light effect
The knob automatically rotates with the table
The startup Logo is displayed. Can customize the logo
Knob using BLOC motor, through the FOC control can simulate a variety of feel
0
0
