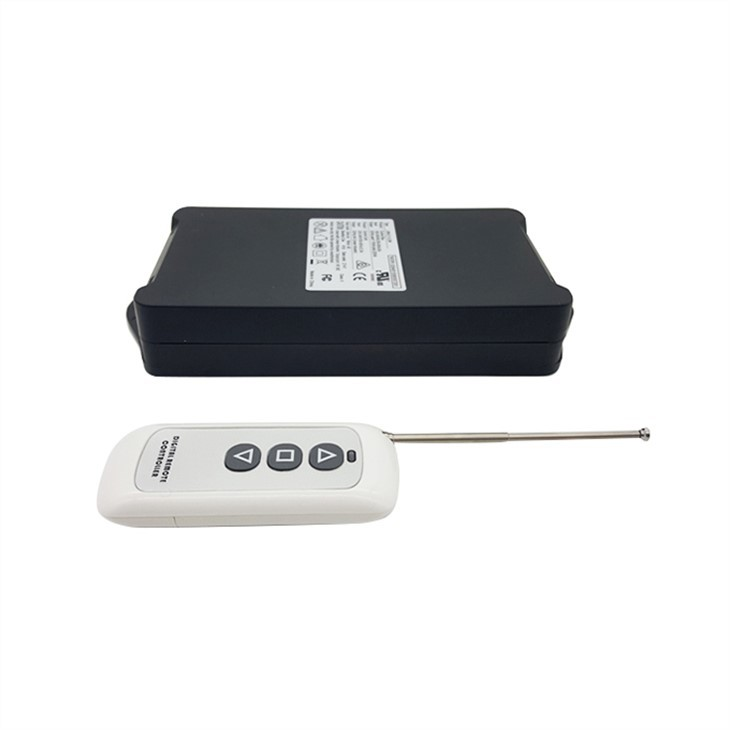

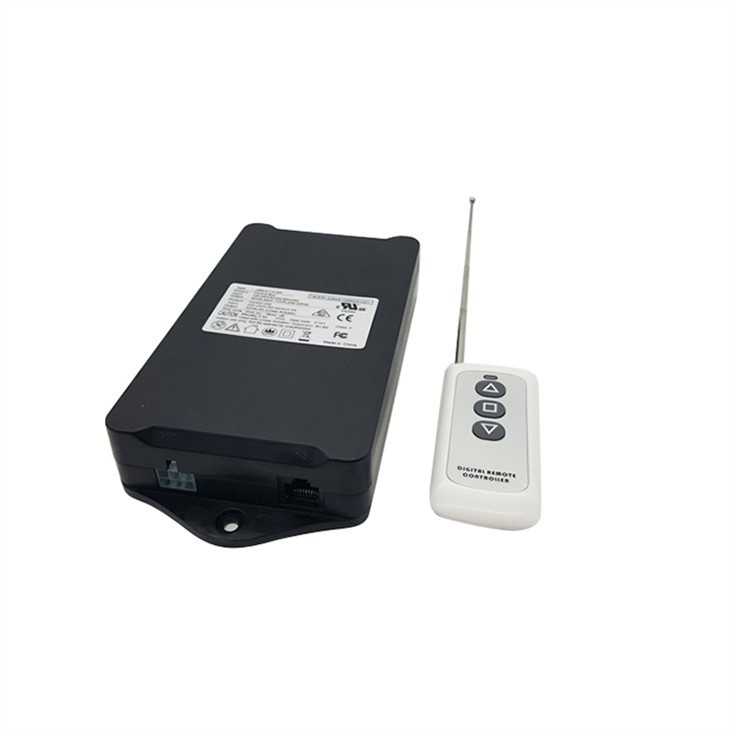

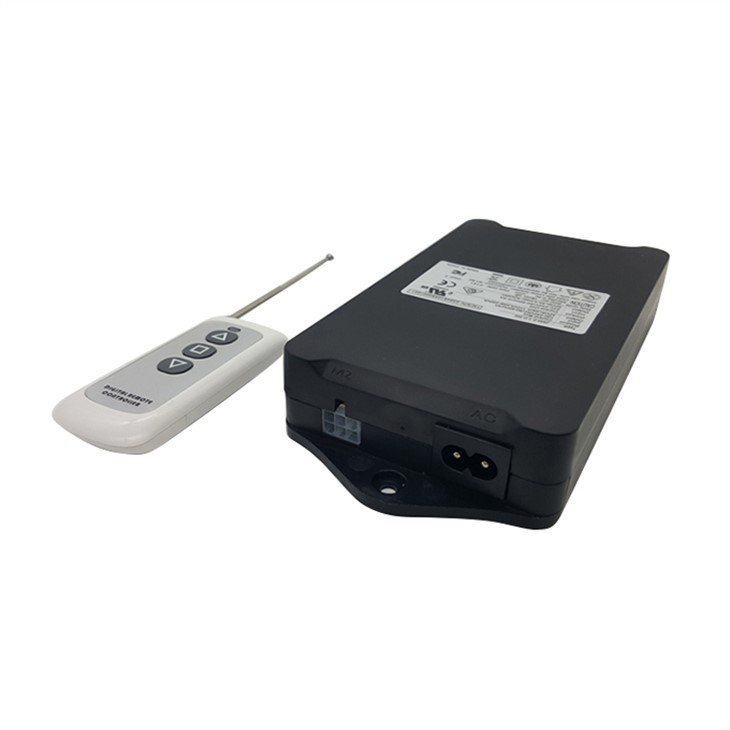

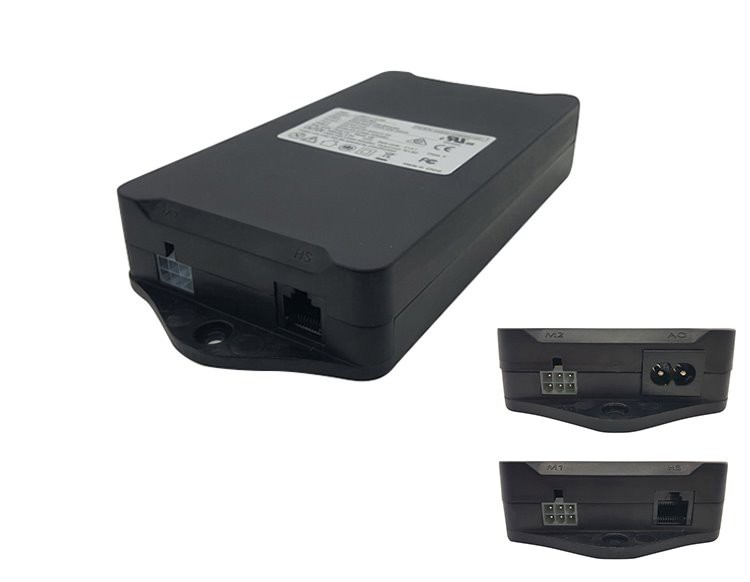

product description of Sit Stand Desk Gaming Control Box

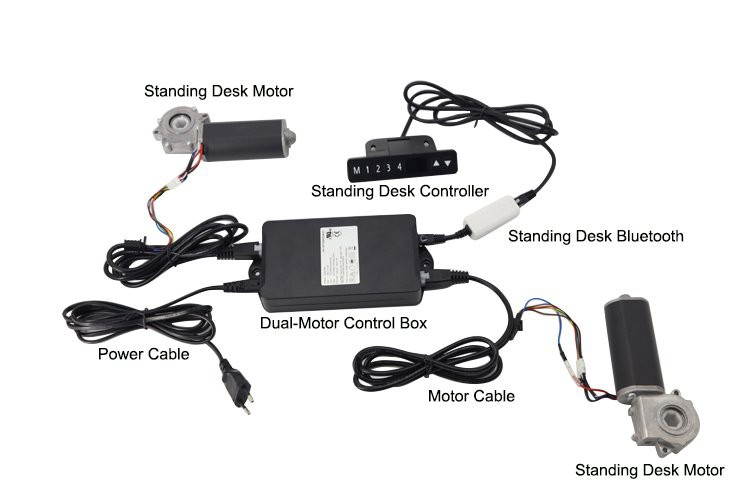

· JSM-2.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption
Features
Number of control columns: 1-2
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Overload protection: avoid overload operation by limiting the current to a specific value
Overheating protection, motor open circuit, Hall fault, motor short circuit, low voltage, illegal power failure, illegal plugging and unplugging, excessive desktop tilt angle, anti-pinch upward and downward

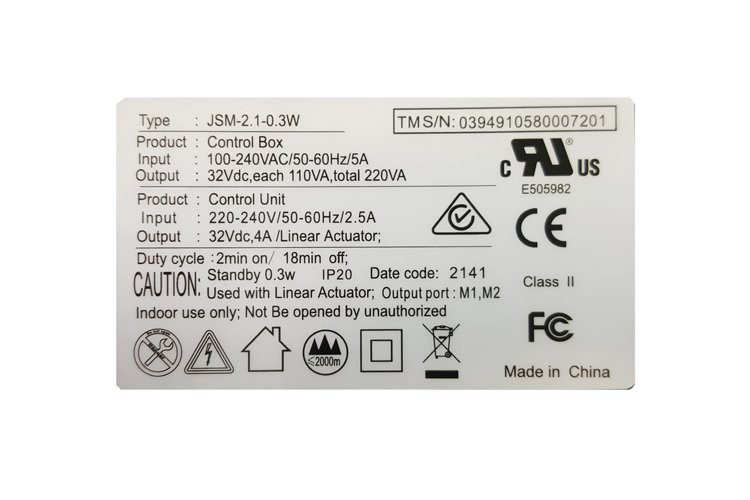

Product parameters
Input voltage | 100-240V |
Maximum power | 350W |
Standby power consumption | 0.3W |
size | 166×95×32mm |
weight | 0.42kg |
Product solutions | MOS scheme |
Instructions
Duty cycle: continuous work for up to 2 minutes within 20 minutes
Use environment: indoor
Certificates of Sit Stand Desk Gaming Control Box: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

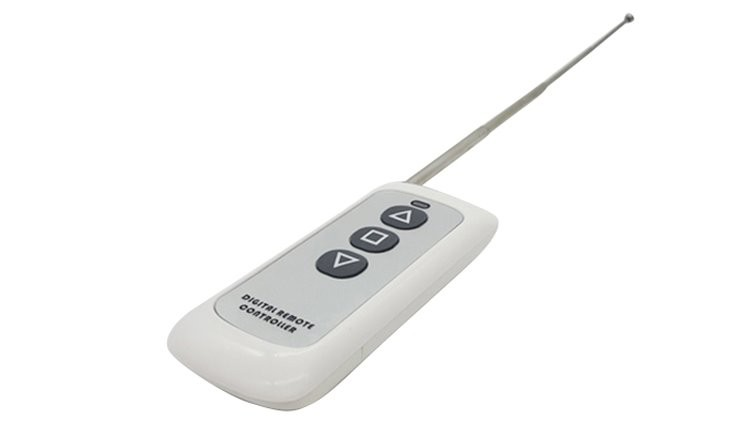

Wireless remote control: This remote control is delicate and light. There are 3 buttons, upward, downward and stop button. The wireless remote control can remotely control the lifting desk within 200m of the receiver. Only a 23A12V battery is needed for power supply.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |

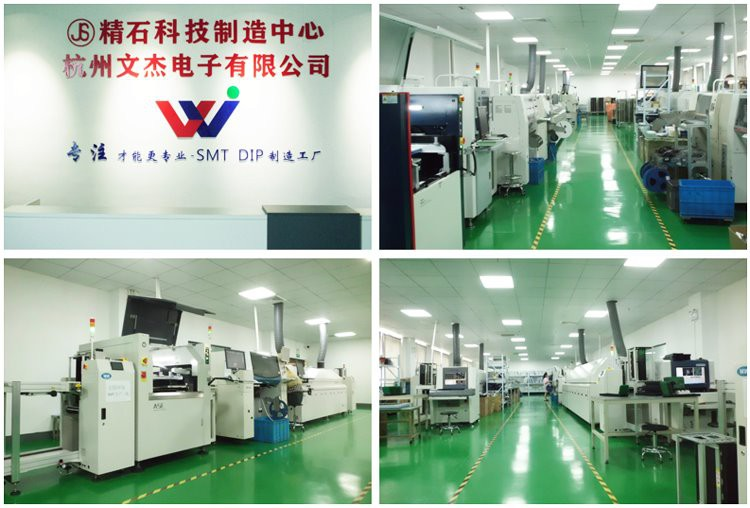

Photos of Changxing Jingshi Technology manufacturing center
Company related introduction: In 2014, Jingshi Technology began to cater to customers and tailor the development of the lifting table control system, serving customers in a point-to-point manner.
In 2017, Hangzhou Jingshi Technology Co., Ltd. was founded.
In 2018, Changxing Jingshi Technology Co., Ltd. was founded.
Based on 6 years of technical experience accumulation, Jingshi Technology has developed generation1, 2, 3 control systems which feature small size, full voltage and high power. The product performance and stability have been consistently praised by customers. In the future, we will continue to invest a large amount of fund in the research and development of new products in the field of lifting tables. Contact us for more information about Sit stand desk gaming control box.
