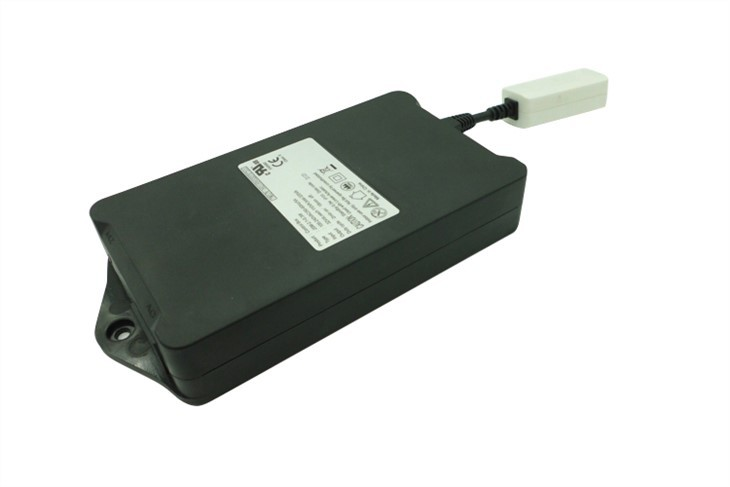

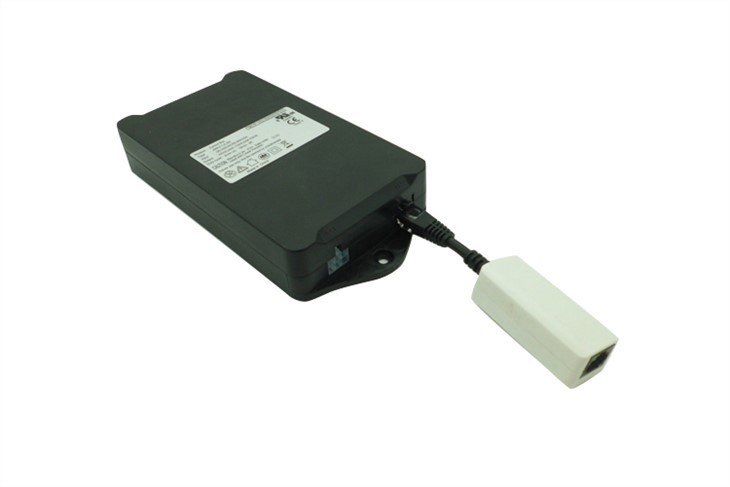

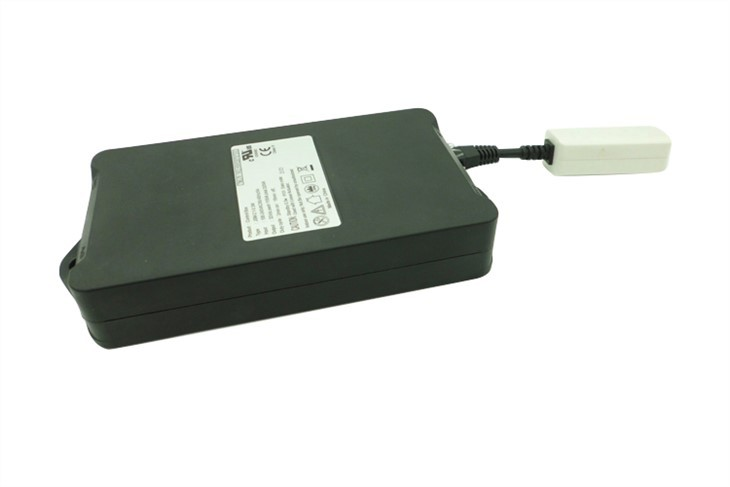

Sit Stand Furniture Control Box belongs to 2-motor control box with internal power supply. It features
small size, full voltage and high power. The Bluetooth enables users to control sit stand desks on cellphone.
Type: JSM-2.1-0.3W
Input: 100-240V 50-60Hz, 5A
Output: 32Vdc, each 110VA, total 220VA
Maximum power: 350W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Standby power consumption | 0.2W | 0.1W | 0W |
Battery interface | Have | No | Have |
Desktop auto balance | No | Have | Have |
This is external Bluetooth. Scan QR code to download the APP, after connecting the device, the lifting table can be controlled by the mobile phone. The lift table can be controlled by mobile phone within 50m. According to requirements, Bluetooth can also be installed inside the controller box.
Types of standing desk control box we produce:
Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers.
Applications of Sit Stand Furniture Control Box
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition
Product testing
Jingshi has developed the fully automatic test system independently, which can be used to do product testing. It can evaluate the power supply and control parts of the control board comprehensively. The following contents can be detected :
1. If the output of the power supply is standard.
2. If there is anything wrong with the main power supply, such as with load, overload, over temperature, and short circuit
3. If the hardware sensors of each part of the control board are standard.
4. The control board can initialize desk legs, adjusting the desk upward and downward, etc.The system can quickly alarm through the buzzer, upon it detects any anomaly in the process of the automatic test.
Photos of factory:
FAQ
1. What business type is your company?
We are manufacturer/factory.
2. How much is your registered capital?
Registered Capital: 1 million RMB
3.What about the lead time?
Sample needs 7 days, mass production time needs 35 days.
4. Do you have any MOQ limit for control box order?
Low MOQ, small orders are available.
