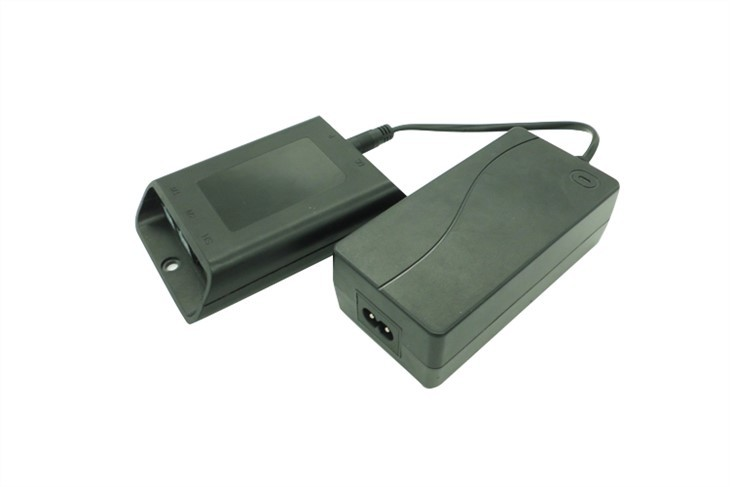

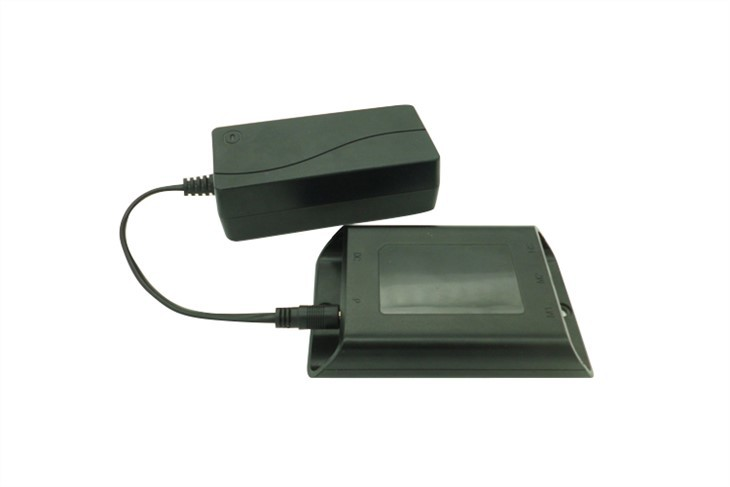

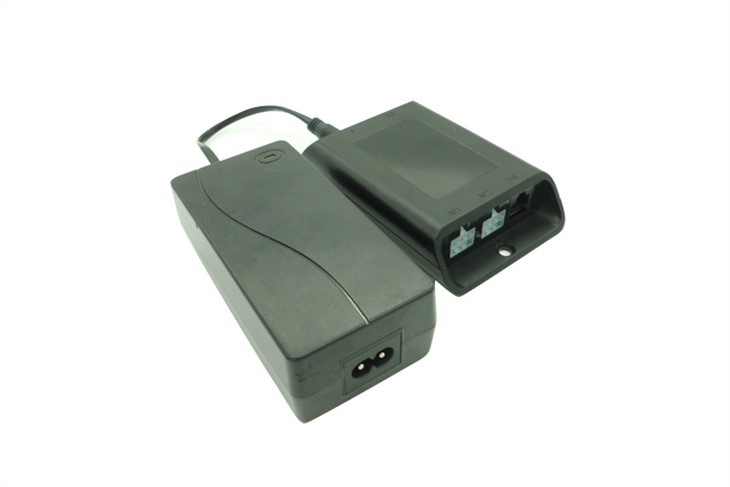

Sit Stand Station Control Box belongs to 2-motor control box with external power supply. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
Basic property
Input: 24-36V
Output:12-32V
Maximum power: 150W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Basic property of Control Box
Input: 24-36V
Output:12-32V
Maximum power: 150W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Description of Adapter:
1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Product size: 10.5*5.5*3.5cm
OEM: OEM customization
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Types of standing desk control box we produce:
Quality management concept of Sit Stand Station Control Box
1. Quality is the starting point of value and respect, and is the lifeblood of a company's survival.
2. All raw materials are inspected randomly, and the whole batch must be inspected in case of defects. Where incidence of defects exceeds 0.2%, the materials will be returned to the supplier and rectification is required.
3. 100% of released products get through 2-hour aging test. We by no means allow any products that fail ageing test to flow into the market.
4. 100% of defective products returned from all markets are disassembled and analyzed. We by no means allow any products that need to be fixed to flow into the market.
Applications
Photos of factory:
Focus on wholesale and customization of electric lifting desk control box
free design/origin factory/ODM/OEM/
Company related introduction: Jingshi Technology has two companies, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. Hangzhou Jingshi Technology Co., Ltd. was founded in 2017, and Changxing Jingshi Technology Co., Ltd. was founded in 2018. While Hangzhou Jingshi Technology focuses on product development and innovation, Changxing Jingshi Technology focuses on raw material purchase, product production and shipment. If you have any questions about Sit Stand Station Control Boxes, don’t hesitate to contact us.
