Stand Up And Sit Down Desk Control Box

5 0 Reviews
Type: JSM-2.1-0.3W Input: 100-240V 50/60Hz, 5A Output: 32Vdc, each 110VA, total 220VA Maximum power: 350W Standby power consumption: <0.3W Duty cycle: 2min ON/18min OFF Product scheme: MOS conductor Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc. MOQ=1000 PCS Stand Up And Sit Down Desk Control Box belongs to 2-motor control box with internal power supply. It features small size, full voltage and high power. The Bluetooth enables users to control sit stand desks on cellphone.
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

Stand Up And Sit Down Desk Control Box belongs to 2-motor control box with internal power supply. It features small size, full voltage and high power. The Bluetooth enables users to control sit stand desks on cellphone.

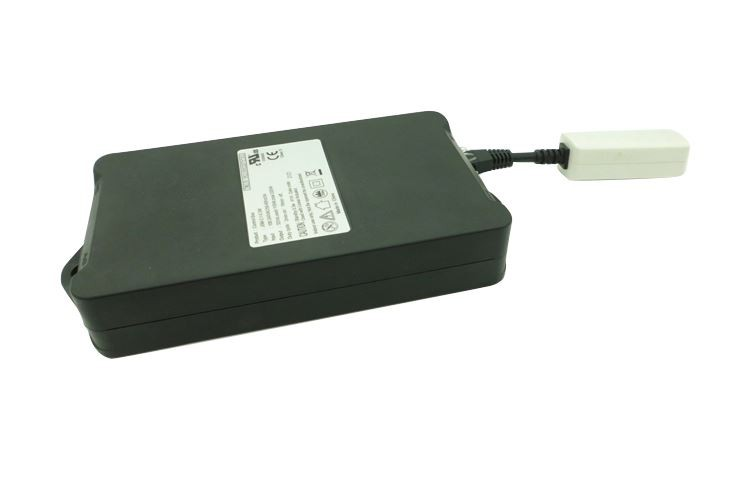

Stand Up And Sit Down Desk Control Box 3

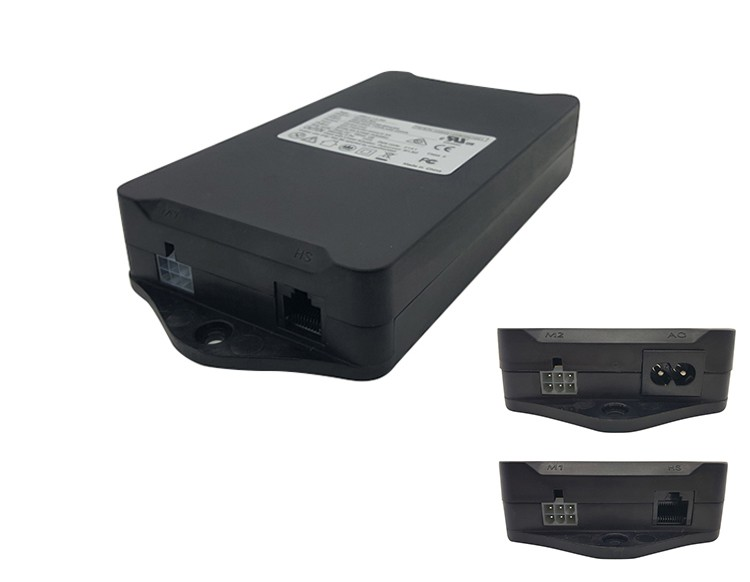

China sit stand desk control box.jpg

Basic property

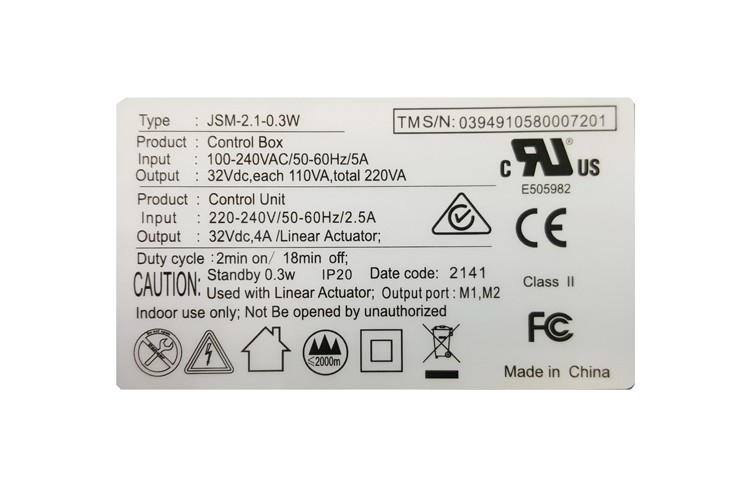

China control box label.jpg

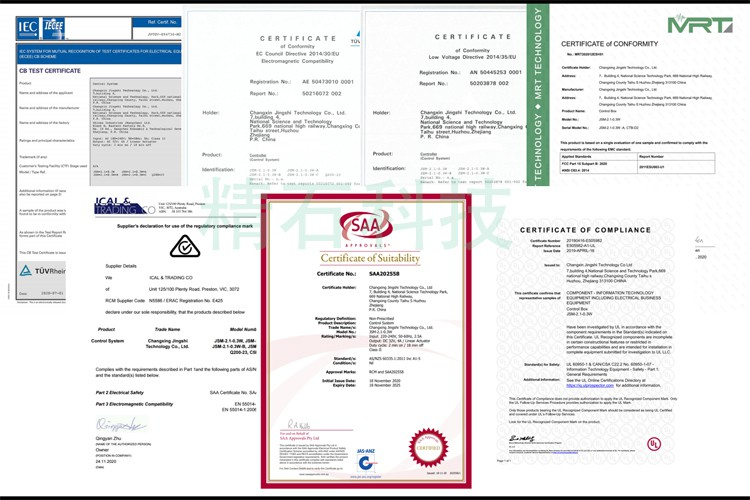

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

China standing desk controller certificates.jpg

control box manufacturers certificates.jpg

Comparison of three generations of control boxes made by JS Technology

products

1st generation

2nd generation

3rd generation

Drive way

Mos+ Relay

Mos

Mos

Battery interface

Have

No

Have

modify parameters on PC

Support

Support

Support

Desktop auto balance

No

Have

Have

protection functions of control boxes made by Jingshi Technology

protection functions automatically start when standing desk encounter cases of

motor open circuit, Hall fault,

motor short circuit, low voltage,

illegal power-off, illegal plugging and unplugging,

desktop tilt angle being too large,

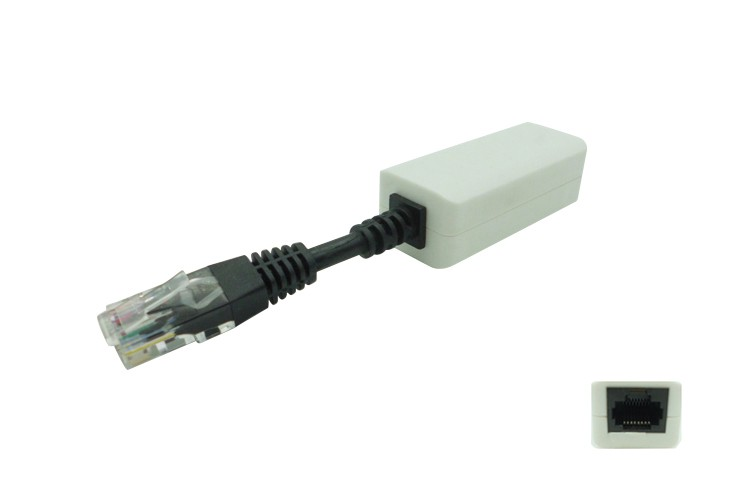

top and bottom anti-pinchcheap standing desk Bluetooth.jpg

This is external Bluetooth. Scan corresponding QR code to download the APP, after connecting the device, the lifting table can be controlled by the mobile phone.

Linear drive, new tools and new inspiration for designers to innovate

The design of smart lift tables, or smart adjustable furniture, is developed based on "linear drive". In layman's terms: "Linear drive can make the traditional products around us move." Linear drive is also called electric push rod or lifting column, plus control box and hand controller, it is a complete set of linear drive products.


Types of standing desk control box we produce:

wholesale standing desk control boxes.jpg

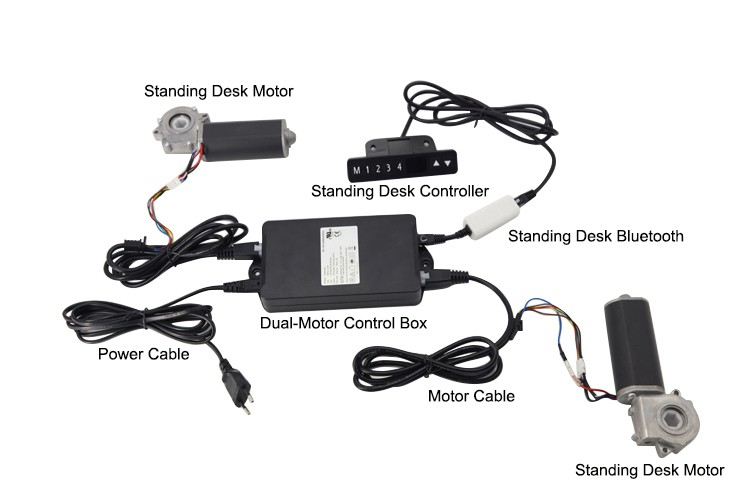

wholesale sit stand desk control.jpg

Applications of Control Box


 applications of standing desk control box.jpg

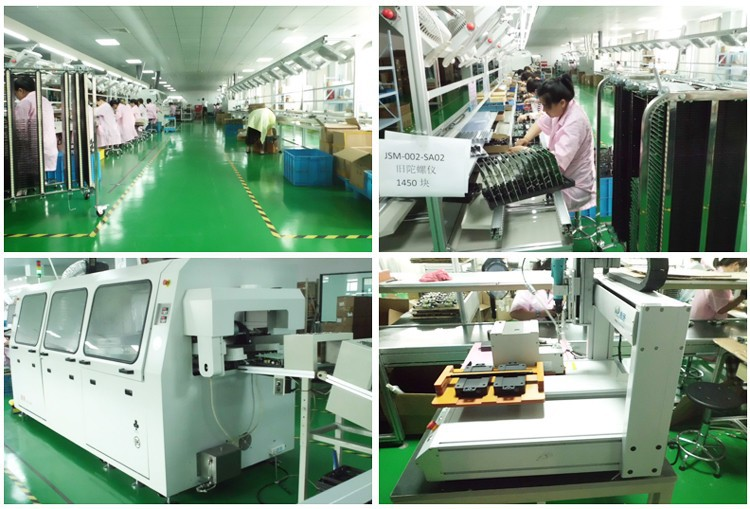

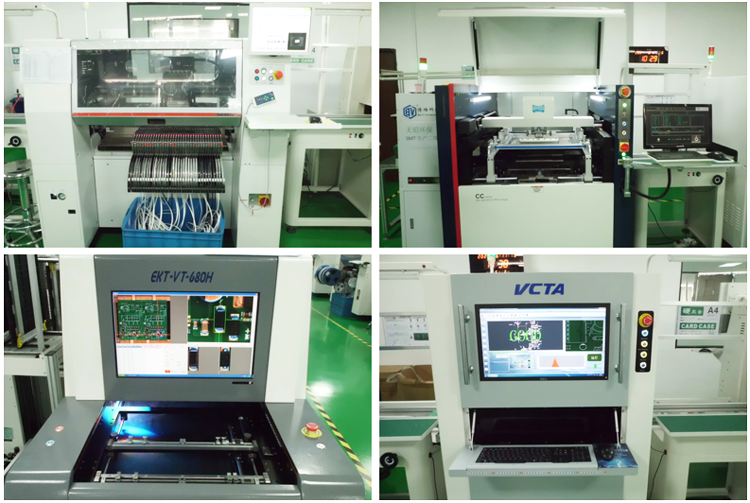

Photos of factory:

sit stand desk control box manufacturers.png

standing desk control box suppliers.png

electric desk control box factory.jpg


FAQ

Writing sequence

1, Sequence can be downloaded only once, except advanced software

2, Downloaded sequence is automatically emptied

3, Parameters are directly inputted

4, All serial numbers record the writing time

5, Scan the serial number then download it directly

If you have any questions about Stand Up And Sit Down Desk Control Box, don’t hesitate to contact us.


Previous:
Next:

Related Products

Model JSM-2.1-0.3W
Input 100-240V 50/60Hz, 5A
Output 32Vdc, each 110VA, total 220VA
Maximum power 350W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL, UKCA, SAA, KC
0
0
Model JSM-4.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 32Vdc, each 110VA, total 220VA
Maximum power 600W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-1.1-0.3W
Input 100-240V 50/60Hz, 2.5A
Output 24Vdc, each 100VA
Maximum power 150W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Model JSM-3.1-0.3W
Input 100-240V 50/60Hz, 8A
Output 24Vdc, each 110VA, total 330VA
Maximum power 450W
Standby <0.3W
Operating mode 2min ON/18min OFF
Product Solution MOS conductor
Global approvals CE FC UL
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Angular design, with 1.5m connection cable
0
0
Touch screen design
Lifting function,3 memory positions can be selected
Optional USB charging
Compact and flexible design, with 1.5m connection cable
0
0
Piano key design with background light
Lifting function,3 memory positions can be selected
Optional USB charging
Strong design technology, with 1.5m connection cable
0
0
Bluetooth support
OLEO display, rich menu
With two memory buttons
Smart appearance, RGB light effect
Up and down operation mode is flexible and fast
The startup Logo is displayed. Can customize the logo
0
0
Bluetooth support
With two memory buttons
Smart appearance, RGB light effect
Slim touch keys with background light
Supports max 18W Type-c fast charging
OLEO display, rich menu, Can customize the logo
0
0
OLEO display, rich menu
The knob can be pressed as a key
Knob comes with RGB light effect
The knob automatically rotates with the table
The startup Logo is displayed. Can customize the logo
Knob using BLOC motor, through the FOC control can simulate a variety of feel
0
0
We have invested in the field of intelligent office, motor drive, electric wheelchair and so on, and the intelligent office field has done very outstandingly.
