product description of Standing Desk Control System with USB
· JSM-2.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption
Features
Number of control columns: 1-2
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Overload protection: avoid overload operation by limiting the current to a specific value
Product parameters
Input voltage | 100-240V |
Maximum power | 350W |
Standby power consumption | 0.3W |
size | 166×95×32mm |
weight | 0.42kg |
Product solutions | MOS scheme |
Instructions
Duty cycle: continuous work for up to 2 minutes within 20 minutes
Use environment: indoor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

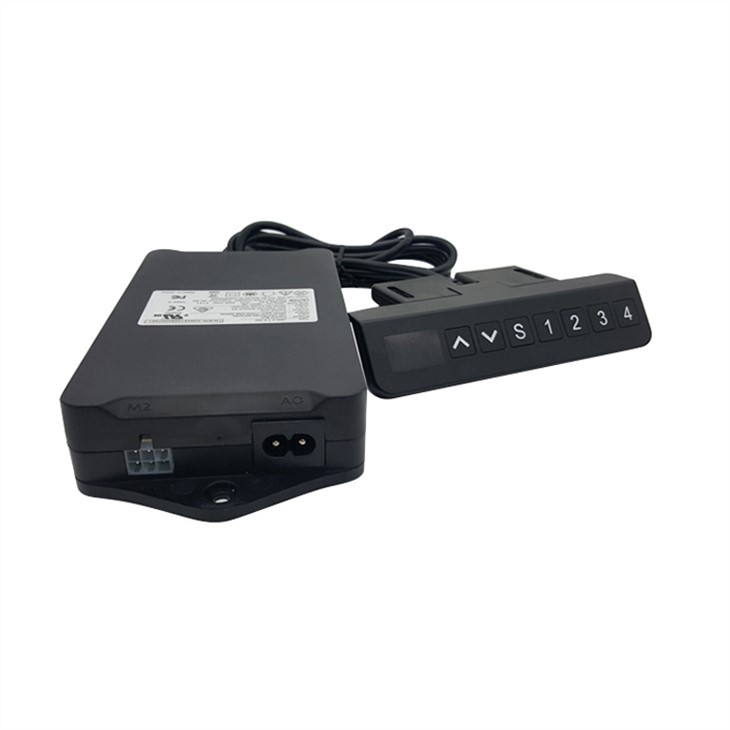

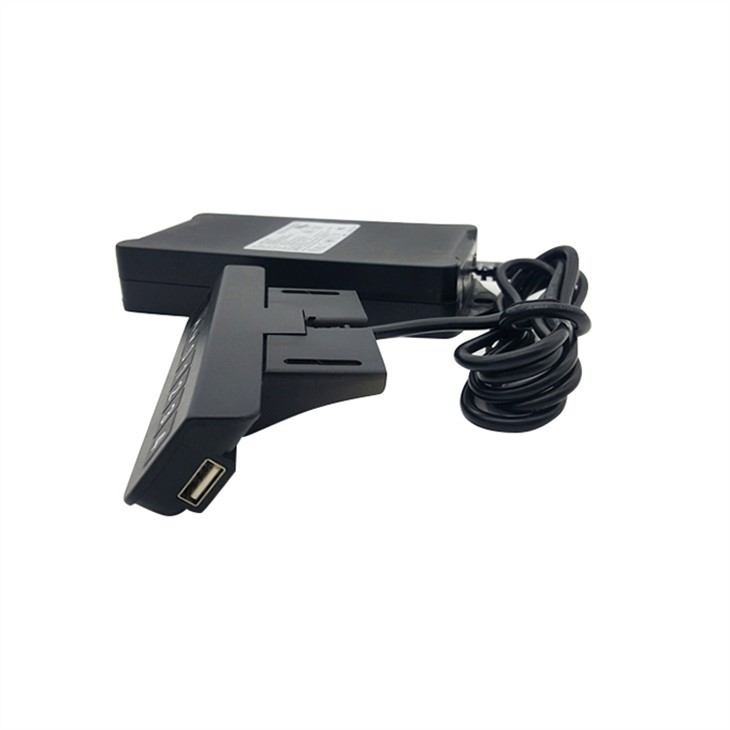

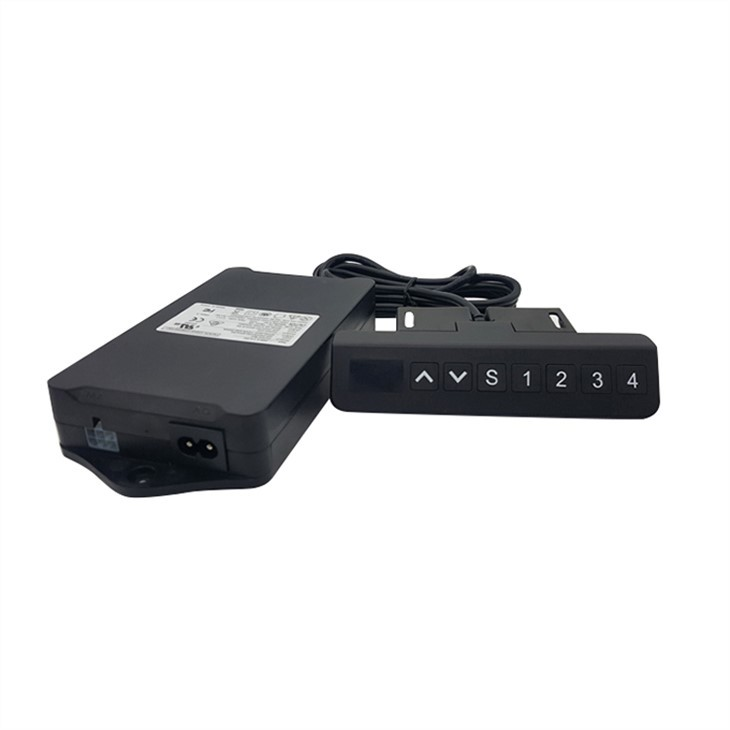

The Standing Desk Hand Control panel holds an advantage of 7 buttons, able to set 4 different heights in memory. There is a USB interface on the side enabling users to charge cellphones.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Photos of Changxing Jingshi Technology
Company related introduction: In 2014, Jingshi Technology began to cater to customers and tailor the development of the lifting table control system, serving customers in a point-to-point manner.
In 2017, Hangzhou Jingshi Technology Co., Ltd. was founded.
In 2018, Changxing Jingshi Technology Co., Ltd. was founded.
Based on 6 years of technical experience accumulation, Jingshi Technology has developed generation1, 2, 3 control systems which feature small size, full voltage and high power. The product performance and stability have been consistently praised by customers. In the future, we will continue to invest a large amount of fund in the research and development of new products in the field of lifting tables.
