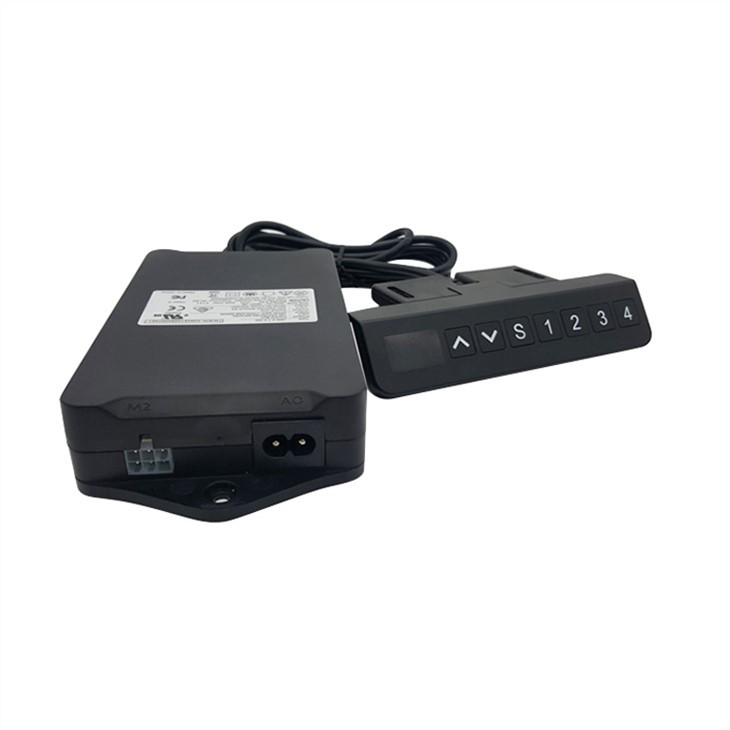

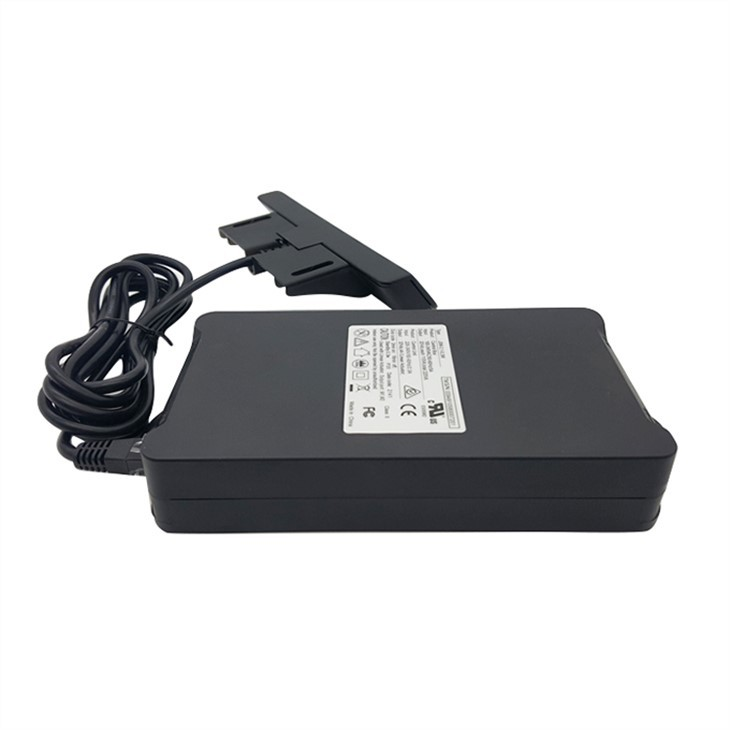

Standing Desk Controller with USB Charger belongs to 2-motor control box with internal power supply. It features small size, full voltage and high power. The keypad is able to memorize 4 different positions and it can charge cellphones with a charging pot on right side.
Basic property
Maximum power: 350W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 400KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection

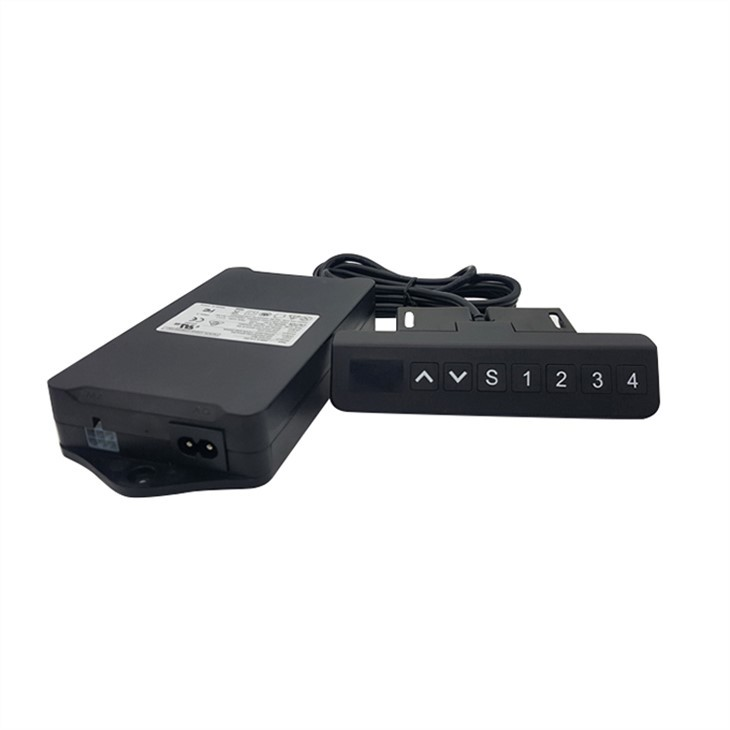

Button Type Standing Desk Hand Controller holds an advantage of 7 buttons, able to memorize 4 different heights. So it's extremely convenient to adjust the desk to meet your various needs. Pressing upward or downward button, you can get your desk up or down at your will. Button Type Standing Desk Hand Controller is delicate and light, hand-size with nearly 2m long wire, easily installed.
Types of standing desk control box we produce:
Applications
Product testing
Jingshi has developed the fully automatic test system independently, which can be used to do product testing of Standing Desk Controller with USB Charger. It can evaluate the power supply and control parts of the control board comprehensively. The following contents can be detected:
1. If the output of the power supply is standard.
2. If there is anything wrong with the main power supply, such as with load, overload, over temperature, and short circuit
3. If the hardware sensors of each part of the control board are standard.
4. The control board can initialize desk legs, adjusting the desk upward and downward, etc.The system can quickly alarm through the buzzer, upon it detects any anomaly in the process of the automatic test.
Standing Desk Controllers with USB Charger are manufactured by Jingshi factory. Contact us for more information about it.
