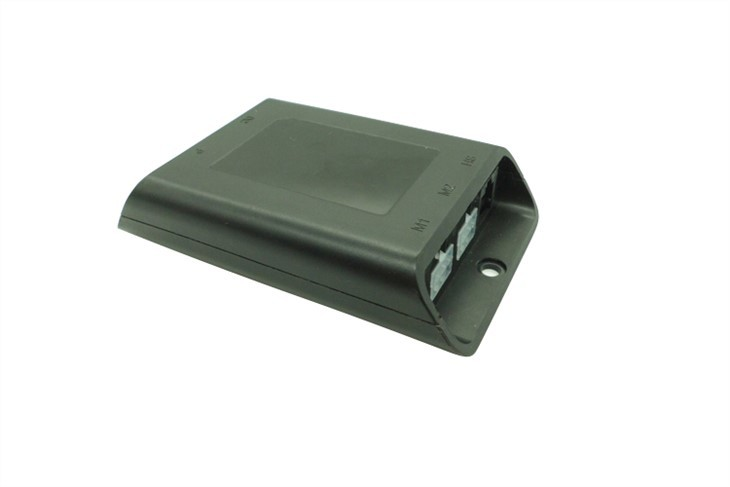

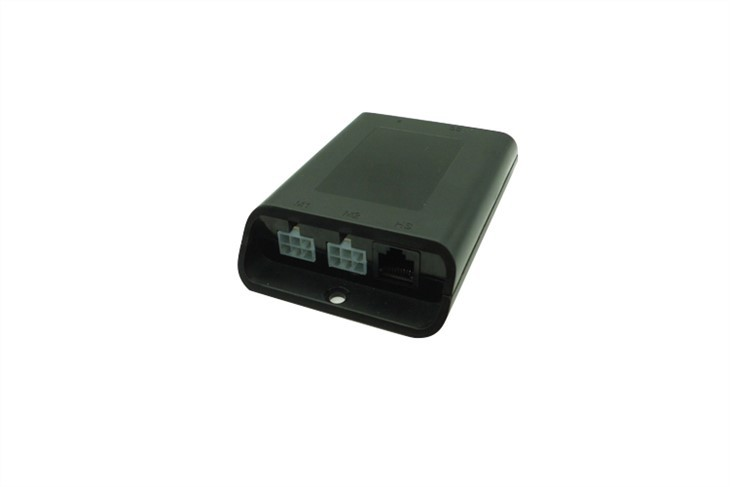

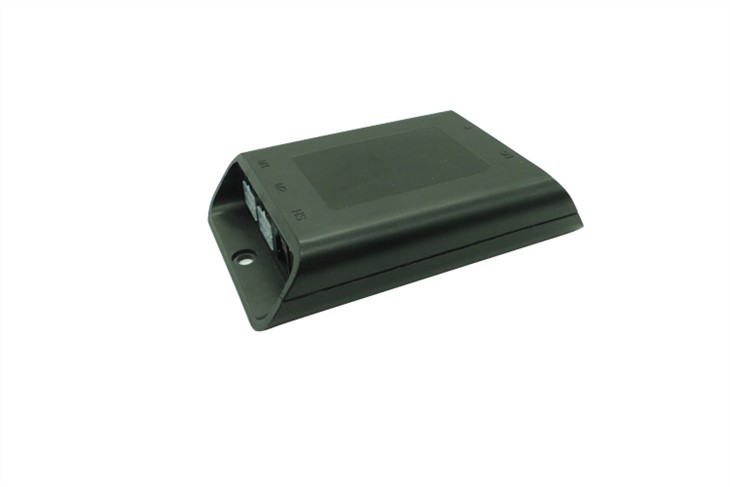

Standing Office Control Box belongs to 2-motor control box with external power supply. It needs to work with an adapter to connect mains and it features small size, full voltage and high power.
Basic property
Input: 24-36V
Output:12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Types of standing desk control box we produce:
Quality management concept of Standing Office Control Box
1. Quality is the starting point of value and respect, and is the lifeblood of a company's survival.
2. All raw materials are inspected randomly, and the whole batch must be inspected in case of defects. Where incidence of defects exceeds 0.2%, the materials will be returned to the supplier and rectification is required.
3. 100% of released products get through 2-hour aging test. We by no means allow any products that fail ageing test to flow into the market.
4. 100% of defective products returned from all markets are disassembled and analyzed. We by no means allow any products that need to be fixed to flow into the market.
Applications
Photos of factory:
Focus on wholesale and customization of electric lifting desk control box
free design/origin factory/ODM/OEM/
FAQ
1. Are you a trading company or manufacturer?
Jingshi Technology is a manufacturer with its own factory. Jingshi owns two companies, Hangzhou Jingshi Technology and Changxing Jingshi Technology.
2. Can the products be tailored? Can you do OEM and ODM?
Sure. All products can be customized according to users’ needs, and we support both OEM and ODM.
3. How many agents or wholesalers does the company currently have overseas?
Some areas can be opened, welcome to join us.
4. What’s your after-sale service?
If there is any quality problem of our products, after customers provide relevant information, Jingshi will replenish the goods free of charge.
Contact us for more information about Standing Office Control Box.
