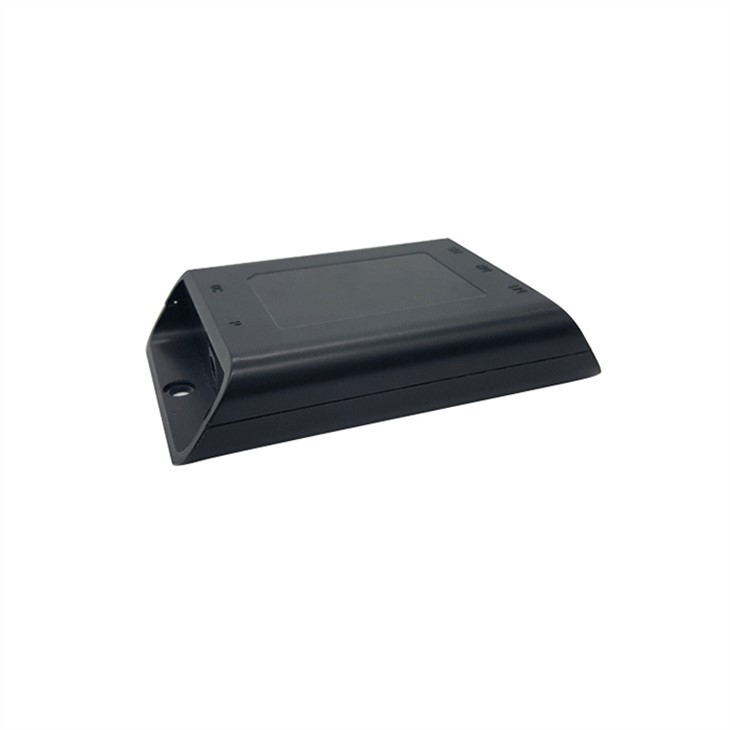

product description of TV lift control box
· This control box belongs to 1-motor control box with external power. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
Functions of Control box
1. It supports Bluetooth and can be controlled by apps and wireless computers
2. System parameters can be modified by PC software
3. To update the program, it’s not necessary to disassemble the shell, or turn on power
4. Quite convenient to check system problems with 30 error codes
5. 100% simultaneity, 10,000 operations, 0 error on 2 columns
Product parameters of TV lift control box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 123×75×25mm |
Product solutions | MOS scheme |

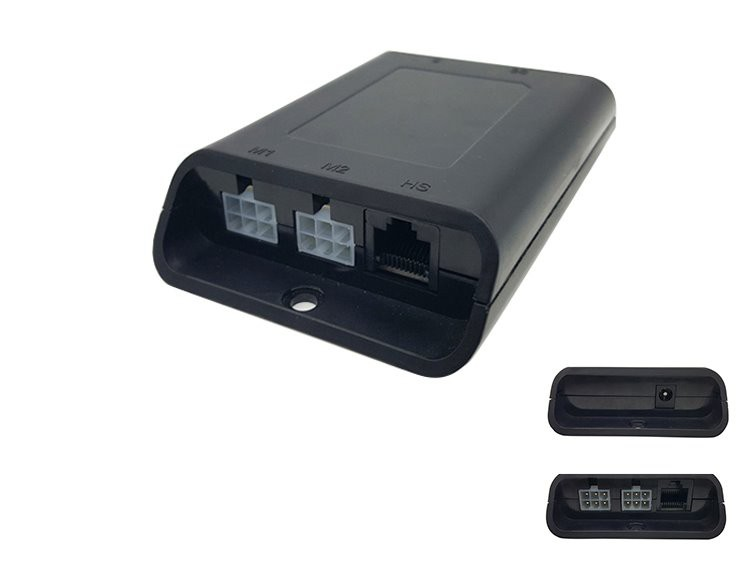

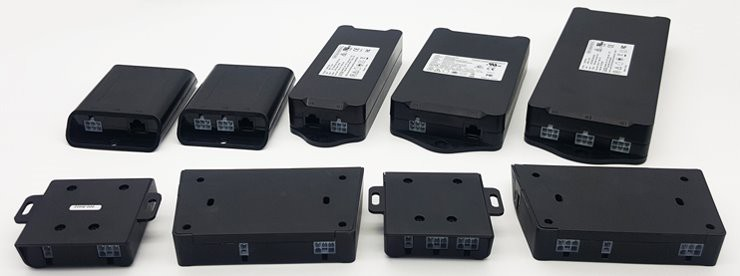

Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |

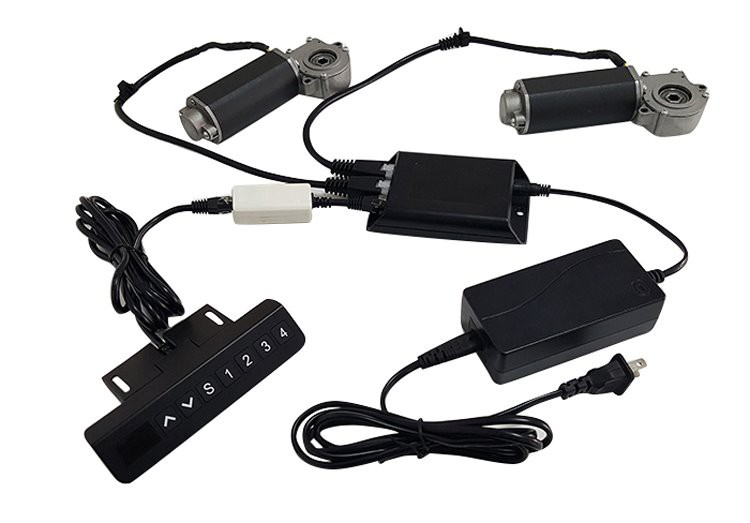

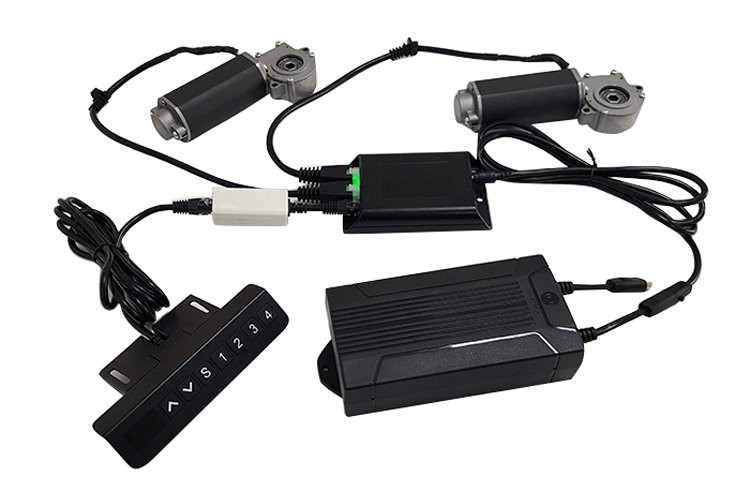

Using adaptor VS using battery bank
Applications:
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.
Unknown application areas:
The linear drive system can be customized and developed according to customer requirements.

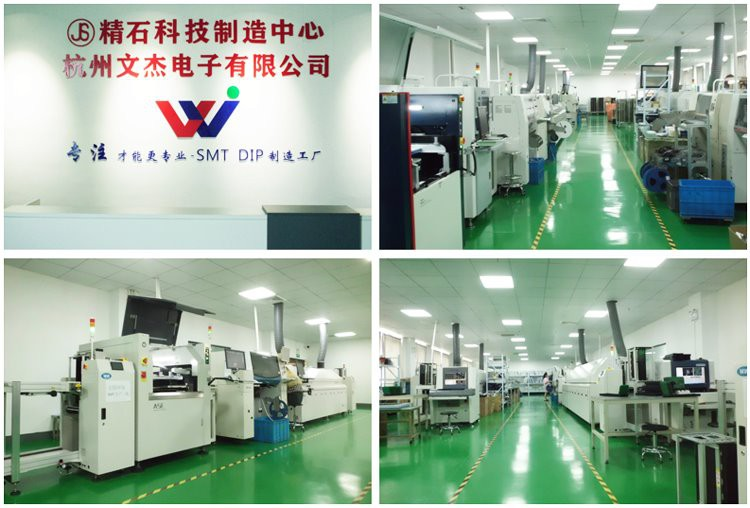

Company related introduction:
Jingshi Technology has two companies, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. While Hangzhou Jingshi Technology focuses on product development and innovation, Changxing Jingshi Technology focuses on raw material purchase, product production and shipment.
If you have any questions about TV lift control box, don’t hesitate to contact us.
