Basic property of Uplift Desk Control Box
Input: 24-36V
Output: 12-32V
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Functions
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 400KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it's not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
10. 100% simultaneity, 10,000 operations, 0 error on 2 columns

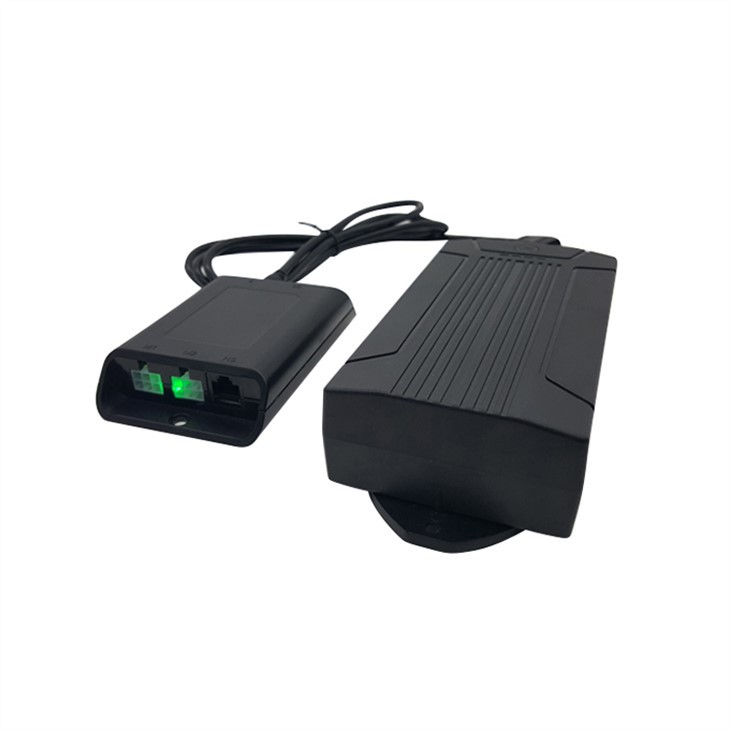

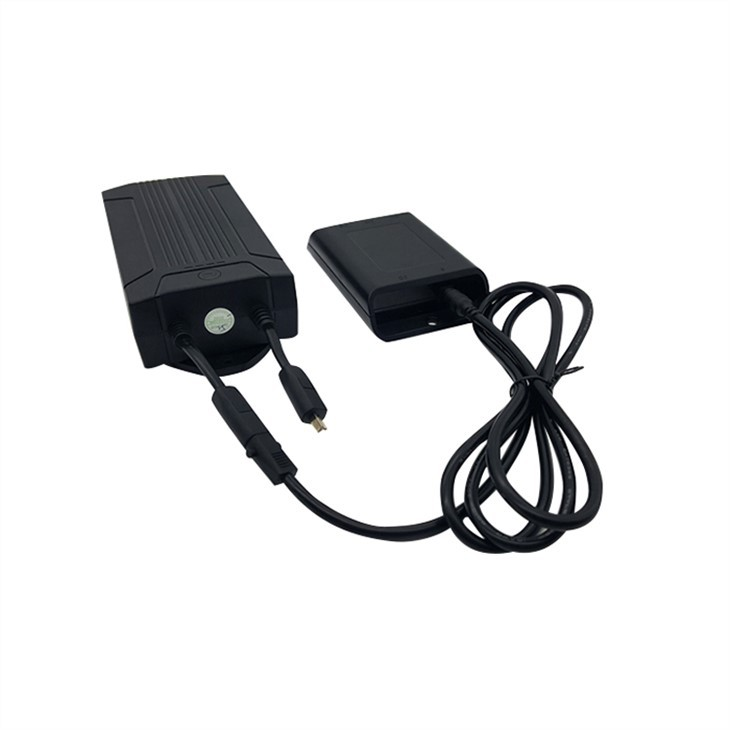

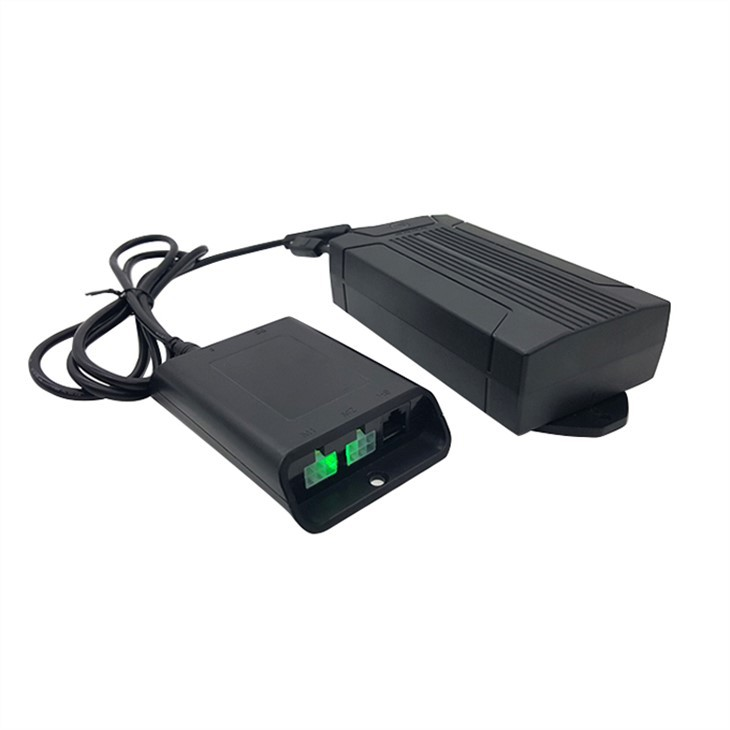

This cable is used to connect Uplift Desk Control Box with battery pack, so that the battery pack can supply power for the whole control system as a mobile power bank.
Battery pack Parameters:
1. Output parameters: 29V 2.2A
2. Maximum output parameter: 29V 5.5A
3. Enter the charging parameters: 29V 1.8A
4. Maximum charging parameters: 29V 0.5A
5. Battery capacity; 2200MAH
Battery pack adapter: When connected to the adapter, the battery pack can be charged. It can be fully charged in about 5 hours. When in use, connect the battery pack and the control box (external power) with a wire so that the battery pack works as a mobile power source to supply power to the control box. Currently, battery packs are mainly used for control boxes (external power).
Tag of battery pack adapter:
Types of standing desk control box we produce:
Jingshi company makes 1-motor control box, 2-motor control box, 3-motor control box. Up to date, we have innovated 3 generations of control system. We also make hand controllers which can be roughly divided into touch screen controllers and type controllers. Moreover, accessories of control system, such as motors, rechargeable battery packs, Bluetooth, adapters and cables, are all available. Our products can be tailored and support ODM and OEM.
Quality management concept
1. Quality embodies the value of companies and win respect of clients. It's vital for the survival and development of enterprises.
2. We examine all raw materials randomly. Whenever defects happen, the entire batch must be examined. If incidence of defects surpasses 0.2%, the materials will be returned to suppliers and correction is required.
3. All products can not be released before finishing 2-hour aging test. We definitely don't allow any products that fail ageing test to enter the market.
4. We disassemble and analyze all the defective products once they are returned from markets. We definitely don't allow any products that need repair to enter the market.
Contact us for more information about Uplift Desk Control Box.
