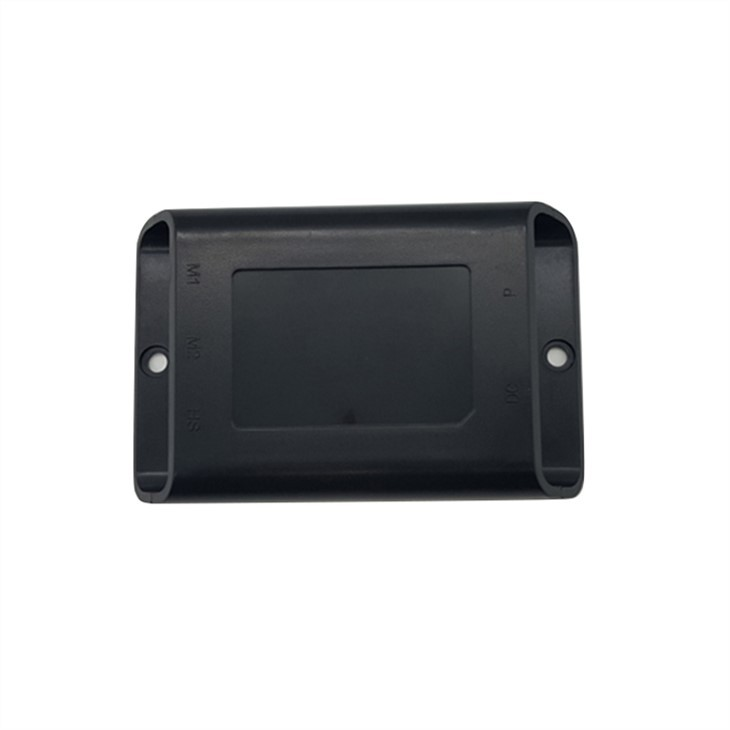

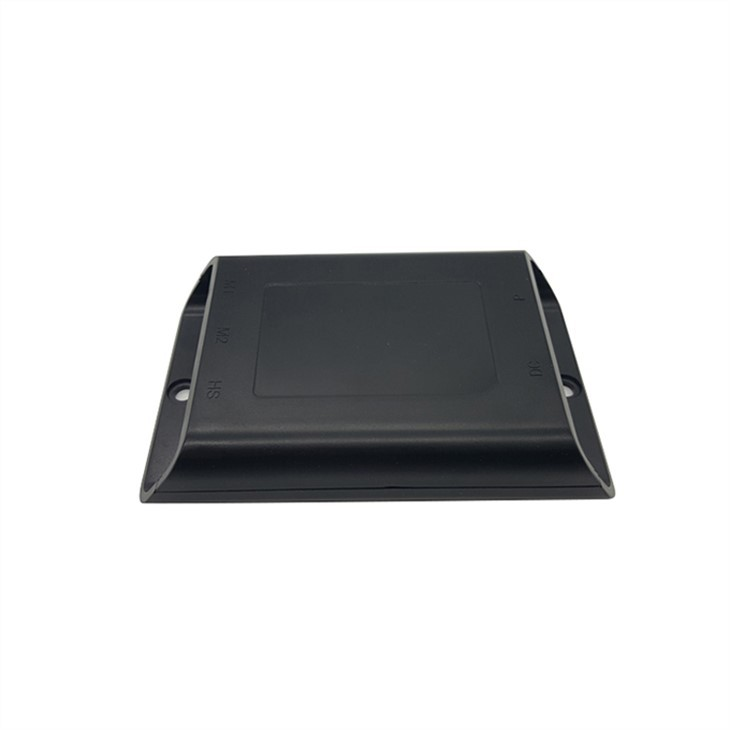

product description of Electric desk leg control box
· This control box belongs to 1-motor control box with external power. It features small size, full voltage and high power. It needs to work with an adapter to connect to mains.
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
Functions of Control box
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 150KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
Product parameters of Electric desk leg control box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 123×75×25mm |
Product solutions | MOS scheme |
Using adaptor VS using battery bank
Product testing of Electric desk leg control box
The test adopts the fully automatic test system independently developed by Jingshi, and the test tool can make a comprehensive evaluation of the power supply and control part of the control board. The test system can detect the following contents of the control board:
1. Whether each output of the power supply is normal
2. Whether there are any problems of the main power supply, with load, overload, over temperature, and short circuit
3. Whether the hardware sensors of each part of the control board are normal
4. The control board can be initialized with table legs, moving them up and down, etc.
When there is any anomaly during the automatic test, the system can promptly ring through the buzzer as quickly as possible.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Company related introduction:
Jingshi Technology owns two firms, Hangzhou Jingshi Technology and Changxing Jingshi Technology. The former was founded in 2017, and the later was founded in 2018. While Hangzhou Jingshi Technology is mainly responsible for product advancement and innovation, Changxing Jingshi Technology takes the responsibility of purchasing raw material , manufacturing products and delivering goods.
If you have any questions about Electric desk leg control box, don’t hesitate to contact us.
