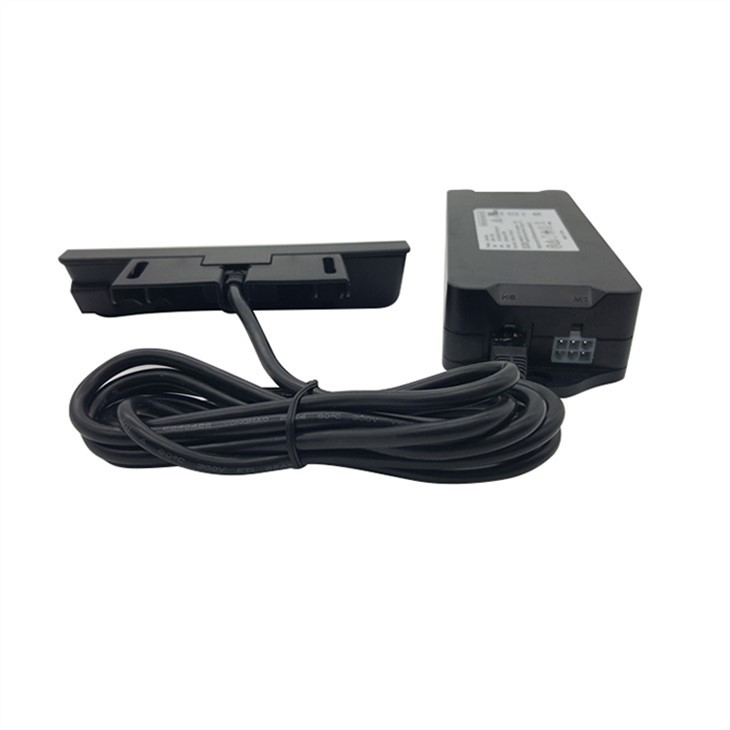

Electric Linear Actuator Control Box

5 0 Reviews
Product Description of Electric Linear Actuator Control Box

• JSM-1.1-0.3W is an energy-saving control box designed for electric lifting tables, equipped with a rebound function to ensure the safe operation of the lifting table.

• It features slow start and slow stop functions.

• With ultra-low 0.3W standby power consumption.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • JSM-000-SA02

Product Introduction


Product Description of Electric Linear Actuator Control Box


• JSM-1.1-0.3W is an energy-saving control box designed for electric lifting tables.


• Equipped with a rebound function to ensure the safe operation of the lifting table.


• Features slow start and slow stop functions.


• Ultra-low standby power consumption: 0.3W.

 批发升降桌控制箱


Product Parameters of Electric Linear Actuator Control Box

Input Voltage

100-240V

Maximum Power

150W

Standby Power Consumption

0.3W

Dimensions

166×66×33  mm

Weight

0.28 kg

Product Solution

MOS Solution

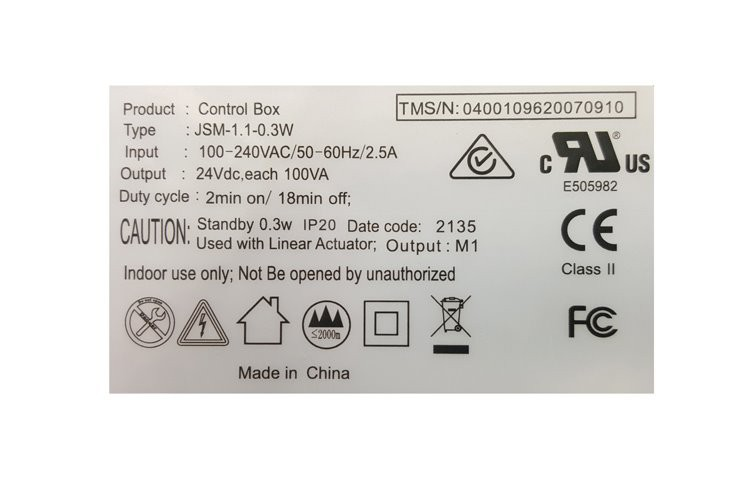

 控制箱标签


Our Advantages:


• Model: JSM-1.1-0.3W


• Input: 100-240V 50/60Hz, 2.5A


• Output: 24Vdc, 100VA each


• Maximum Power: 150W


• Standby Power: <0.3W


• Operating Mode: 2 minutes on / 18 minutes off


• Product Solution: MOS Conductor


• Global Certifications: CE, FC, UL



Instructions


Duty cycle: Continuous operation for up to 2 minutes within a 20 - minute period

Operating environment: Indoor

Certifications: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

中国站立式桌面控制箱证书 1

Functions of the Electric Linear Actuator Control Box


1. Adopts an MOS conductor solution with a gyroscope.


2. Features a reverse braking function; it won’t drop when the load is less than 150KG.


3. Offers 5KG high-precision anti-collision protection with no failures.


4. Maintains left-right horizontal alignment to prevent items on the table from falling.


5. Can run continuously for 20 minutes without protection when unloaded.


6. Supports Bluetooth and can be controlled via an app and wireless computer.


7. System parameters can be modified through PC software.


8. To update the program, there’s no need to disassemble the shell or turn on the power.


9. It’s very convenient to check system problems using 30 error codes.

批发开关面板 7 键 USB

The control panel has the advantage of 7 buttons, enabling the setting of 4 different heights in memory. The button-type standing desk controller is delicate and lightweight, palm-sized, with a 1.5m-long wire and USB port for easy installation. The screen automatically displays the real-time height, making it easier for you to adjust the desk to the appropriate height. There is a USB interface on the side for users to charge their mobile phones.


Types of standing desk control boxes we produce:

批发站立式办公桌控制箱

Comparison of Three Generations of Control Boxes Manufactured by JS Technology

Driving MethodNumber of Motors

Product

Generation 1

Generation 2

Generation 3

Mos + Relay

MOS

MOS


1,2,3

1,2,3

1,2


Manual Control Method

Digital Display / Double - Key / Touch

Digital Display / Double - Key / Touch

Digital Display / Double - Key

Protection

Motor open circuit /

Hall fault /

Motor short circuit /

Low voltage

Illegal power cut /

Illegal plugging and unplugging,

Anti-pinch


Motor open circuit, Hall fault,

Motor short circuit, low voltage,

Illegal shutdown, illegal plugging and unplugging,

Excessive desktop tilt angle,

Anti - pinch at the top and bottom


Motor open circuit, Hall fault,

Motor short circuit, low voltage,

Illegal shutdown, illegal plugging and unplugging,

Excessive desktop tilt angle,

Anti - pinch at the top and bottom


升降台控供应商

Contact us for more information about the electric linear actuator control box.
