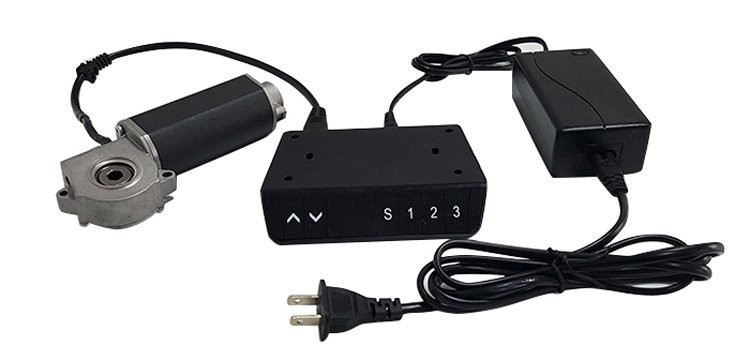

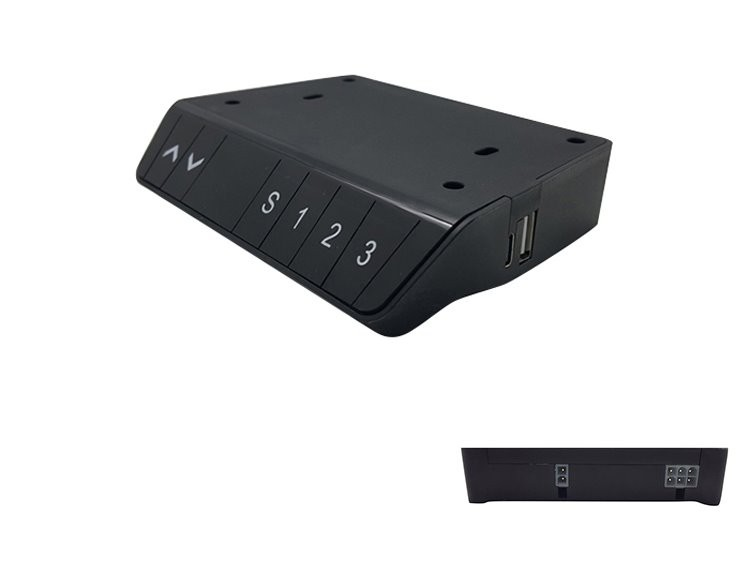

Electric table actuator control box integrates the functions of control box and hand control, belonging to 1-motor control box with external power. In the front of the Control Box, there are 2 keys that can control the desk rising or falling. At the back, It can directly connect to motors just as common control boxes do.
Features
Number of control columns: 1
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Overload protection: avoid overload operation by limiting the current to a specific value
Overheating protection, motor open circuit, Hall fault, motor short circuit, low voltage, illegal power failure, illegal plugging and unplugging, excessive desktop tilt angle, anti-pinch upward and downward
Product parameters
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 130×94×25mm |
Product solutions | MOS scheme |
Selling points
1. Infineon chips imported from Germany
2. The running distance is accurate to 1mm
3. 100% simultaneity, 10,000 operations, 0 error on 2 columns
4. Low standby power consumption, less than 0.3W
5. Electric table actuator control box adopts the cutting-edge MOS conductor scheme
6. Able to support the speed of 60mm per second
7. Low noise

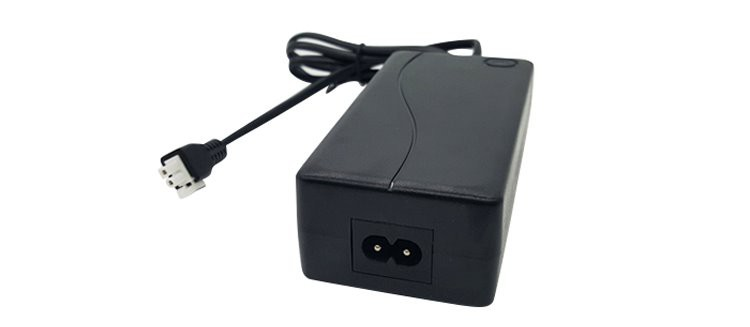

Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM

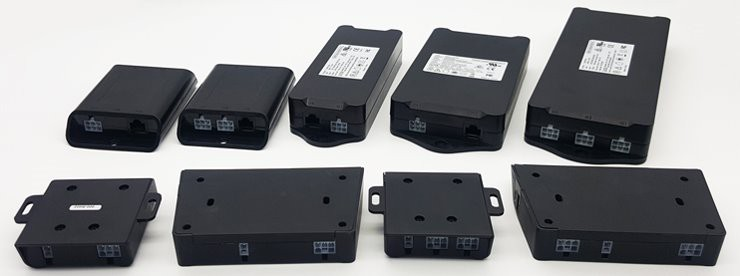

Types of standing desk control box we produce:
Jingshi company makes 1-motor control box, 2-motor control box, 3-motor control box. Up to date, we have innovated 3 generations of control system. We also make hand controllers which can be roughly divided into touch screen controllers and type controllers. Moreover, accessories of control system, such as motors, rechargeable battery packs, Bluetooth, adapters and cables, are all available. Our products can be tailored and support ODM and OEM.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Applications:
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition
Application situations:
Unknown application areas:
The linear drive system can be customized and developed according to customer requirements.
If you have any questions about Electric table actuator control box, don’t hesitate to contact us.
