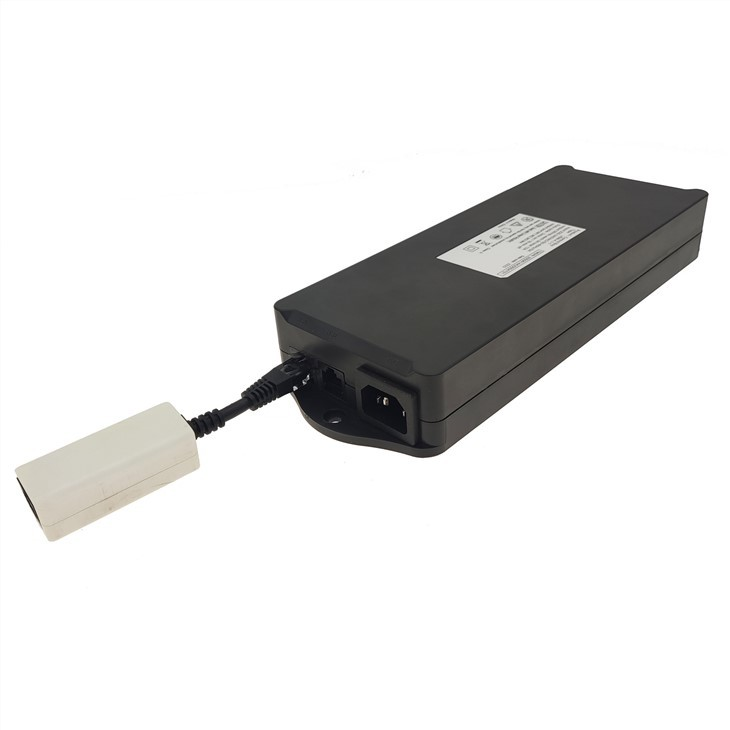

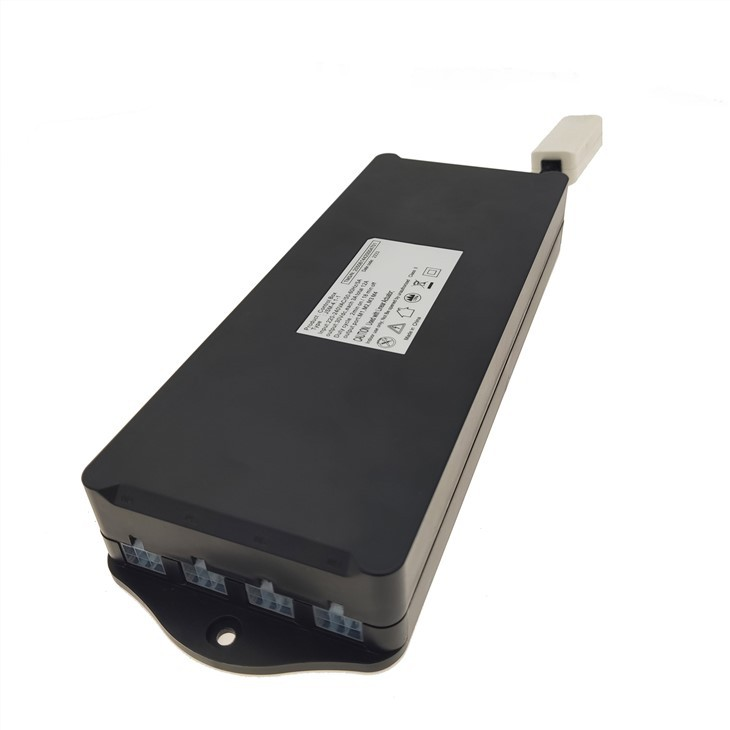

product description of Sit Stand Desk Control Box
· JSM-4.1-1 is an energy-saving control box, suitable for multi-seat lift tables
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption
Features of Control Box
Number of control columns: 1-4
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Overload protection: avoid overload operation by limiting the current to a specific value
Overheating protection, motor open circuit, Hall fault, motor short circuit, low voltage, illegal power failure, illegal plugging and unplugging, excessive desktop tilt angle, anti-pinch upward and downward
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions of Sit Stand Desk Control Box
1. Using MOS conductor scheme with gyroscope
2. Appliable for both low and high voltage
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
10. 100% simultaneity, 10,000 operations, 0 error on 2 columns
This is external Bluetooth. Scan corresponding QR code to download the APP, after connecting the device, the lifting table can be controlled by the mobile phone. The lift table can be controlled on mobile phone within 50m.
Types of standing desk control box we produce:
Applications of Control Box:
Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.
Company related introduction: Jingshi company emphasis technological innovation and improvement of purchase channels, and collaborate with partners to realize product stability. We hold independent intellectual property rights and patents and develop markets of over 10 countries around the world. Our products have obtained many global certificates, for example UL, CB, CE, etc. In 2018, Jingshi company was evaluated by clients as China's leading solution provider regarding lifting table control system.
Contact us for more information about Long Sit Stand Desk Control Box
