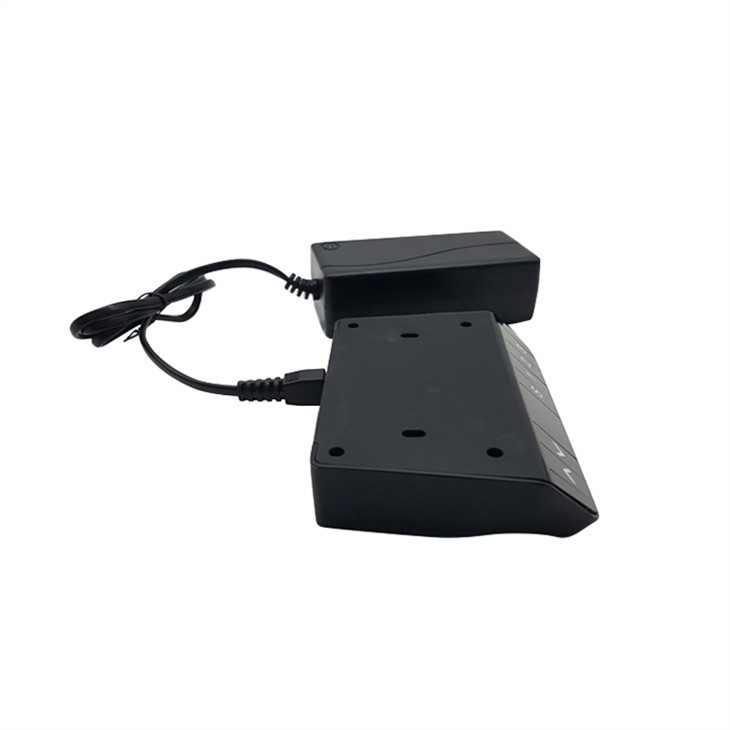

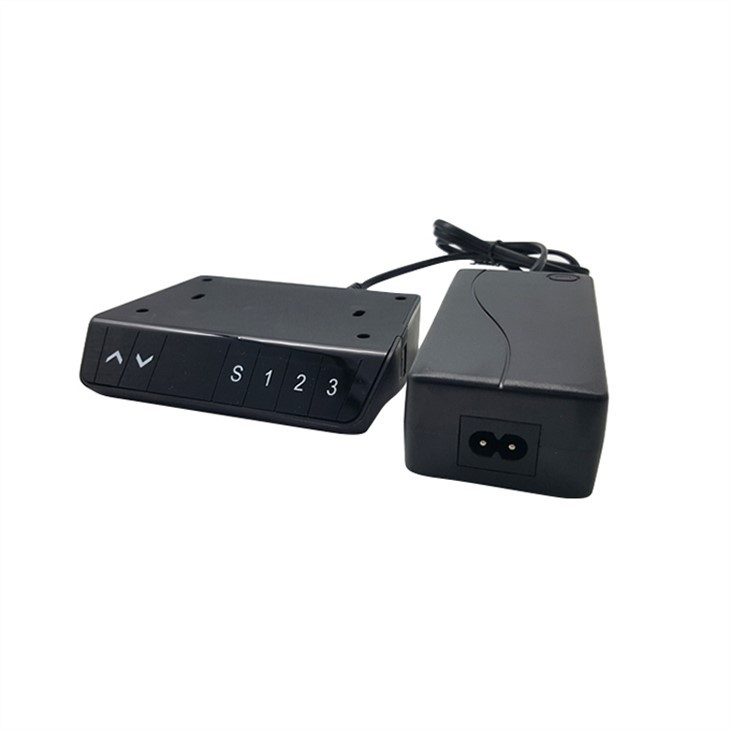

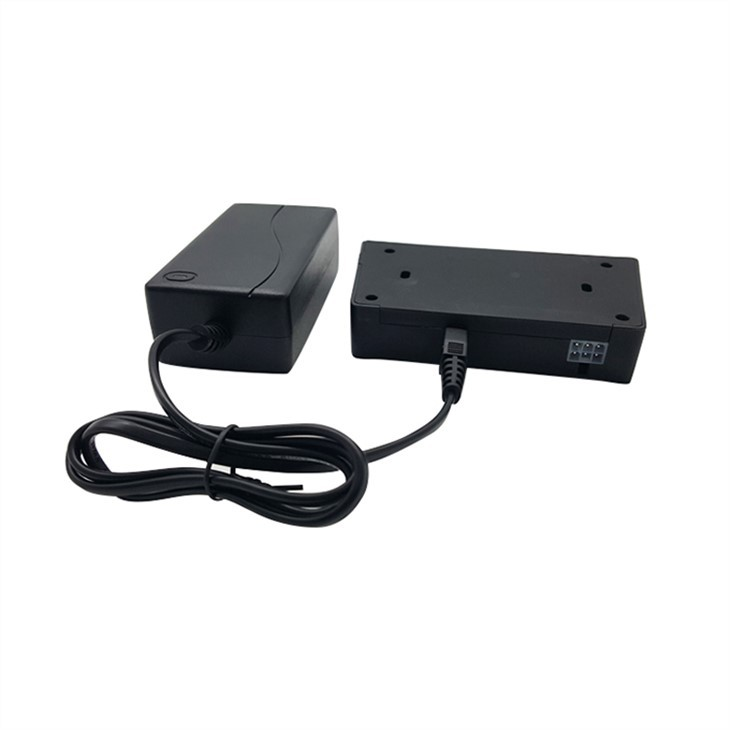

Height Adjustable Standing Desk Control System integrates the functions of control box and hand control, belonging to 1-motor control box with external power. In the front of the Control Box, there are 2 keys that can control the desk rising or falling. At the back, It can directly connect to motors just as common control boxes do. On the right, there is a USB end enabling users to charge up cellphones or something. Compared to other control boxes, obviously, it has an advantage of combining the functions both control boxes and hand control. And its size is quite small. This new product is creative and innovative.
Product parameters
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 130×94×25mm |
Product solutions | MOS scheme |
Description of Adapter: 1. Input parameters: 100-240VAC/50-60HzA
2. Output parameters: 29V1.8A
3. Maximum power: 150W
4. Working mode: 2 Min: 18Min/ ON: OFF
5. Working environment temperature: 0-40
6. Input interface: C8
7. Output interface: 01
8. Safety certificates: UL/GS/CE/KC/PSE/SAA/RCM
Types of standing desk control box we produce:
Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. The dual-motor controller can also be divided into two kinds: dual-motor controller with 2 sockets on single side and dual-motor controller with 2 sockets on two sides. Products can also be customized according to users’ needs.
Besides, Jingshi company produces matching hand controls and accessories, including motors, rechargeable battery packs, Bluetooth, adapters and cables.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Company related introduction: Jingshi Technology has two companies, Hangzhou Jingshi Technology Co., Ltd. and Changxing Jingshi Technology Co., Ltd. Hangzhou Jingshi Technology Co., Ltd. was founded in 2017, and Changxing Jingshi Technology Co., Ltd. was founded in 2018. While Hangzhou Jingshi Technology focuses on product development and innovation, Changxing Jingshi Technology focuses on raw material purchase, product production and shipment. If you have any questions about Height Adjustable Standing Desk Control System, don’t hesitate to contact us.
