Adjustable Desk Control System

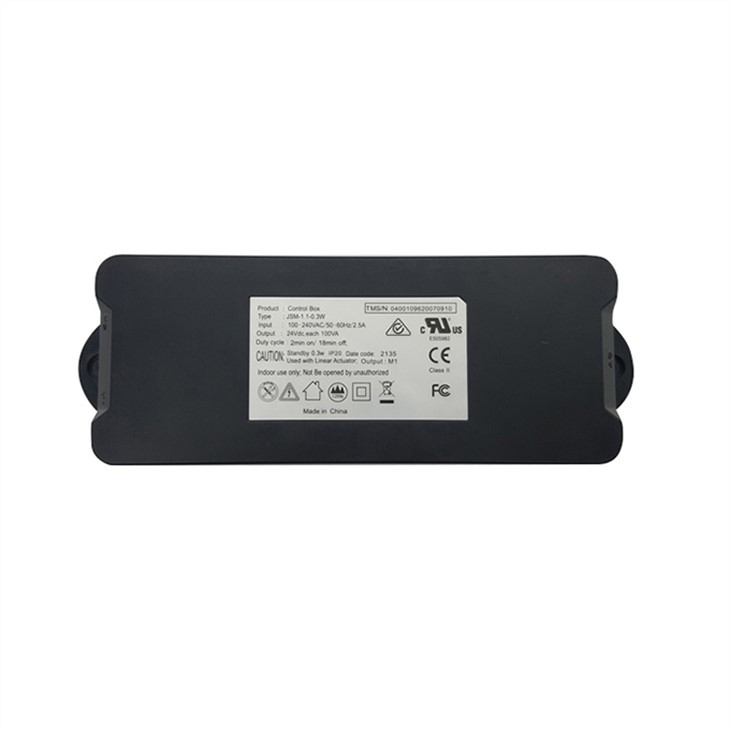

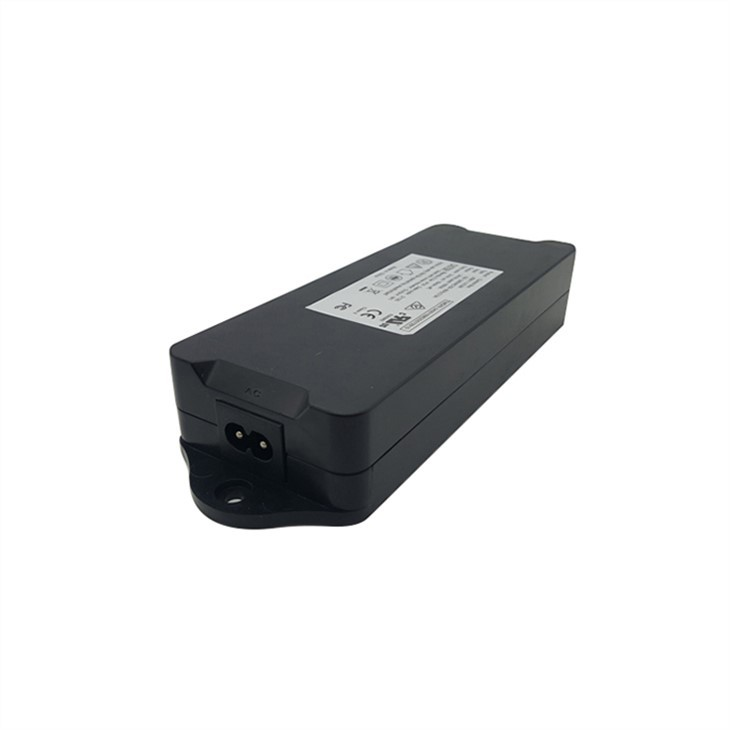

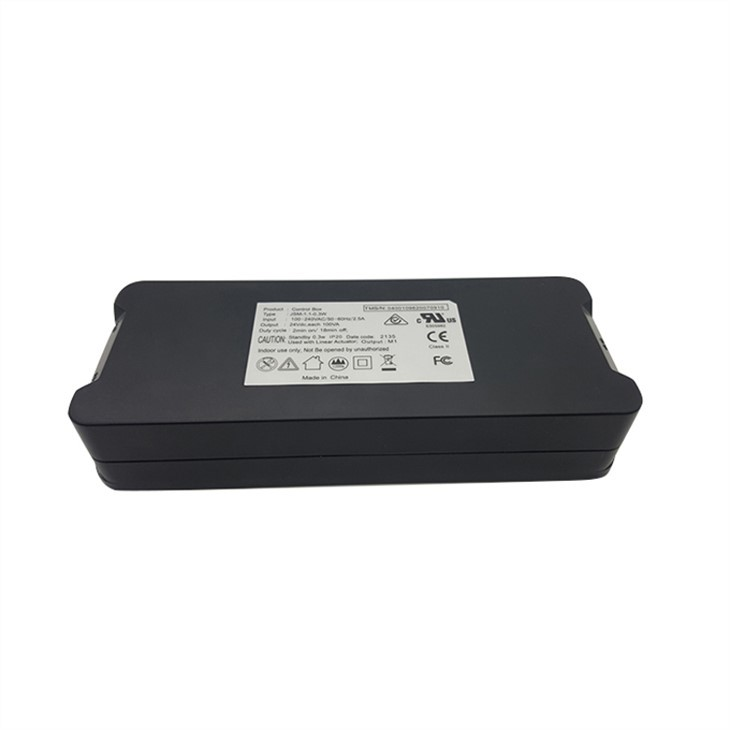

1-motor control box description
· JSM-1.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption
Features of Adjustable Desk Control System
Number of control columns: 1-2
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Product parameters
Input voltage | 100-240V |
Maximum power | 150W |
Standby power consumption | 0.3W |
size | 166×66×33mm |
weight | 0.28kg |
Product solutions | MOS scheme |
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Contact us for more information about Adjustable Desk Control System.
