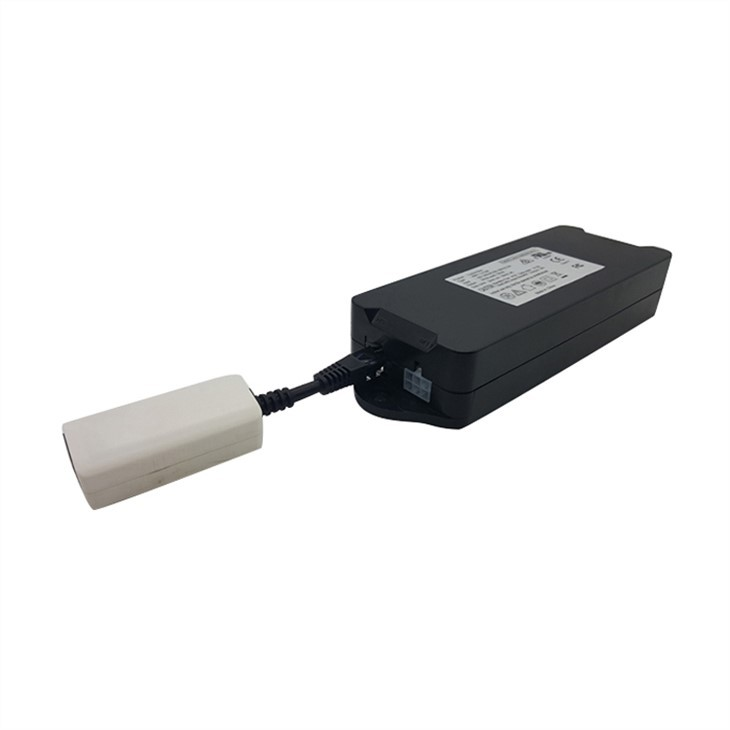

product description of Adjustable medical bed control box
· JSM-1.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables
· Equipped with a bounce back function to ensure the safe operation of the lift table
· With slow start and slow stop functions
· 0.3W ultra-low standby power consumption
Features
Number of control columns: 1-2
Colour: Black
Shell: ABS material
Installation method: can be fixed on the desktop board by screws
Overload protection: avoid overload operation by limiting the current to a specific value
Overheating protection, motor open circuit, Hall fault, motor short circuit, low voltage, illegal power failure, illegal plugging and unplugging, excessive desktop tilt angle, anti-pinch upward and downward
Product parameters
Input voltage | 100-240V |
Maximum power | 150W |
Standby power consumption | 0.3W |
size | 166×66×33mm |
weight | 0.28kg |
Product solutions | MOS scheme |
Instructions
Duty cycle: continuous work for up to 2 minutes within 20 minutes
Use environment: indoor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
The Bluetooth is external Bluetooth. For Android phones, scan the QR code to download the APP. For Apple phones, search for Electric lift table in the app store to download the APP. After connecting the device, the lifting table can be controlled by the mobile phone. The lift table can be controlled on mobile phone within 50m. According to requirements, Bluetooth can also be installed inside the controller box.
Types of standing desk control box we produce:
Adjustable medical bed control box is designed and manufactured by Jingshi Technology. Our company produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. The dual-motor controller can also be divided into two kinds: dual-motor controller with 2 sockets on single side and dual-motor controller with 2 sockets on two sides. Products can also be customized according to users’ needs.
Besides, Jingshi company produces matching hand controls and accessories, including motors, rechargeable battery packs, Bluetooth, adapters and cables.
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
Number of motors | 1,2,3 | 1,2,3 | 1,2 |
Hand control method | Digital display / two keys / touch | Digital display / two keys / touch | Digital display / two keys |
Anti-pinch method | Current/torsion sensor | Current + patented sensor | Current + patented sensor |
Anti-pinch detection accuracy | 15Kg | 5Kg | 5Kg |
Bluetooth | Support | Support | Support |
Height memory | Two keys 0/digital display 4 groups | Two keys 1/digital display 3 groups | Two keys 1/digital display 3 groups |
Multi-machine parallel | not support | Support up to 16 | not support |
Standby power consumption | 0.2W | 0.1W | 0W |
Contact us for more information about Adjustable medical bed control box.
