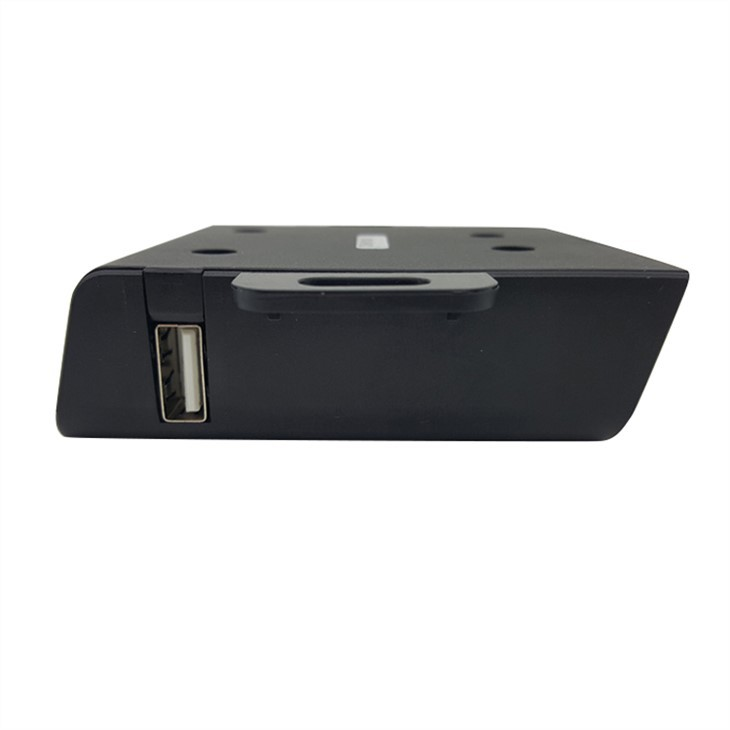

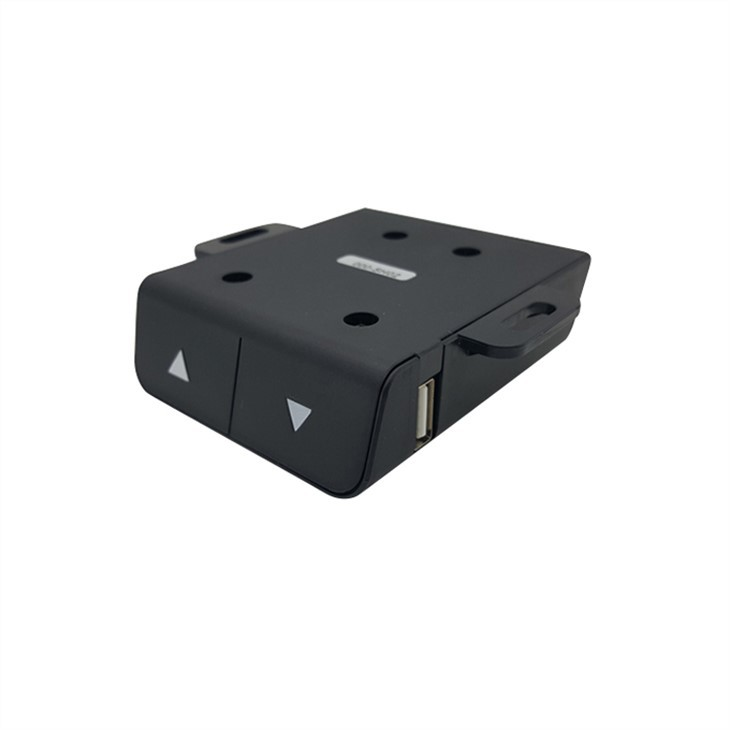

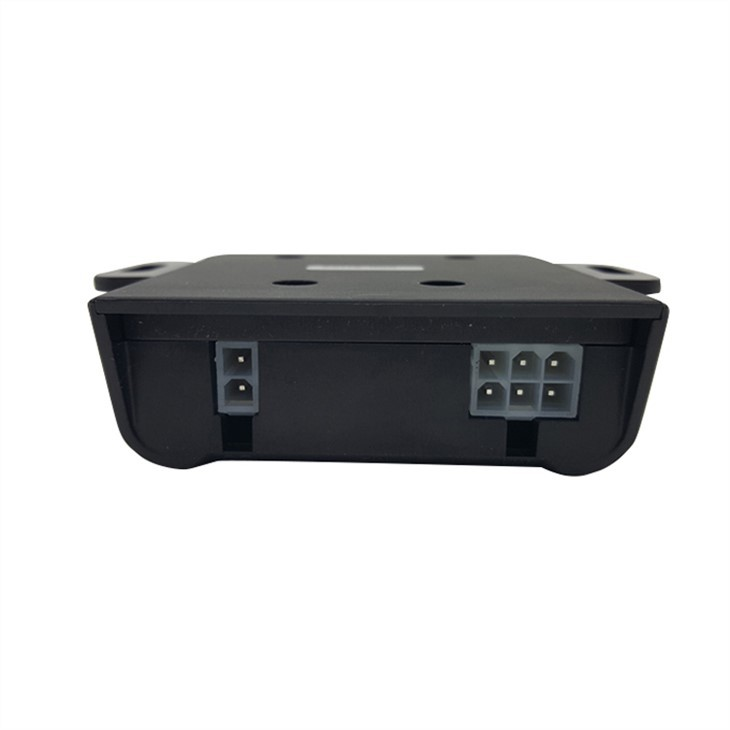

Adjustable Stand Up Desk Control System integrates the functions of control box and hand control, belonging to 1-motor control box with external power. In the front of the Control Box, there are 2 keys that can control the desk rising or falling. At the back, It can directly connect to motors just as common control boxes do. On the right, there is a USB end enabling users to charge up cellphones or something.
Compared to other control boxes, obviously, it has an advantage of combining the functions both control boxes and hand control. And its size is quite small. This new product is creative and innovative.
Product parameters of Height Adjustable Desk Control Box
Input voltage | 24-36V |
Output voltage | 12-32V |
size | 69×82×25mm |
Product solutions | MOS scheme |
Adjustable Desk Controller function
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 200KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes
Types of standing desk control box we produce:
Comparison of three generations of control boxes made by JS Technology
products | 1st generation | 2nd generation | 3rd generation |
Drive way | Mos+ Relay | Mos | Mos |
EMC | Pass | Pass | Pass |
Battery interface | Have | No | Have |
modify parameters on PC | Support | Support | Support |
Desktop auto balance | No | Have | Have |
protection | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch | Motor open circuit, Hall fault, motor short circuit, low voltage, illegal power-off, illegal plugging and unplugging, desktop tilt angle being too large, top and bottom anti-pinch |
Product testing
Jingshi has developed the fully automatic test system independently, which can be used to do product testing. It can evaluate the power supply and control parts of the control board comprehensively. The following contents can be detected:
1. If the output of the power supply is standard.
2. If there is anything wrong with the main power supply, such as with load, overload, over temperature, and short circuit
3. If the hardware sensors of each part of the control board are standard.
4. The control board can initialize desk legs, adjusting the desk upward and downward, etc.The system can quickly alarm through the buzzer, upon it detects any anomaly in the process of the automatic test.
If you have any questions about Adjustable Stand Up Desk Control System, don’t hesitate to contact us.
