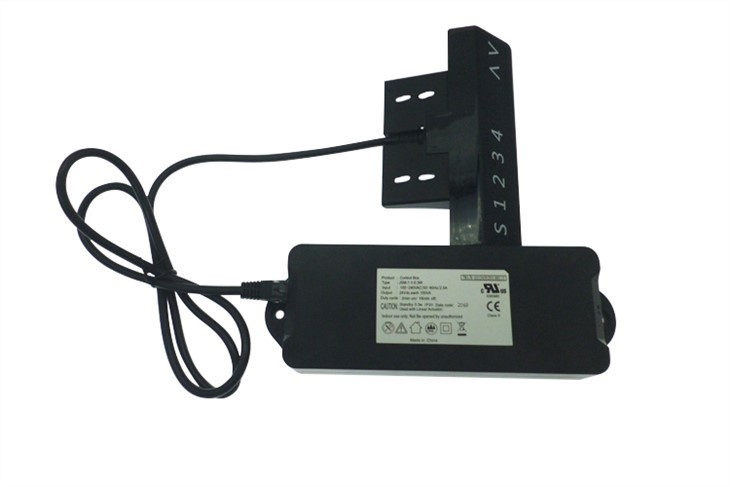

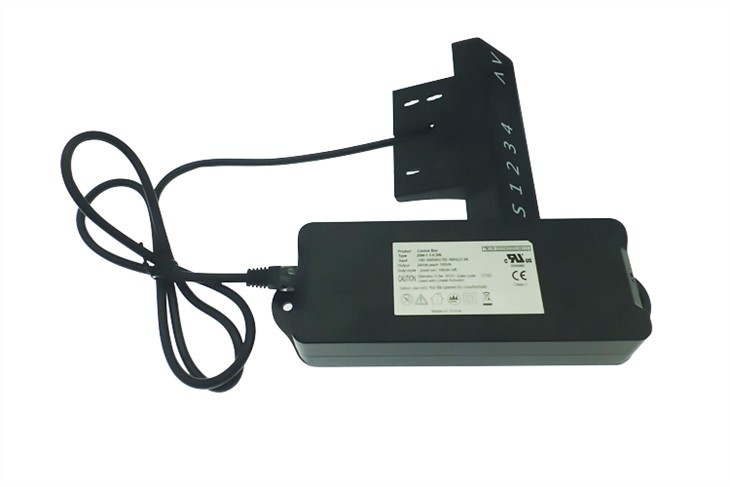

Basic property of Autonomous Lift Desk Control Box
Maximum power: 150W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Functions
1. Using MOS conductor scheme with gyroscope
2. With reverse brake function, it does not drop under the weight of 150KG
3. 5KG high-precision collision protection, no malfunction
4. Protection to keep left and right level, preventing things on desk from falling
5. When No-load, it can run continuously for 20 minutes without protection
6. It supports Bluetooth and can be controlled by apps and wireless computers
7. System parameters can be modified by PC software
8. To update the program, it’s not necessary to disassemble the shell, or turn on power
9. Quite convenient to check system problems with 30 error codes

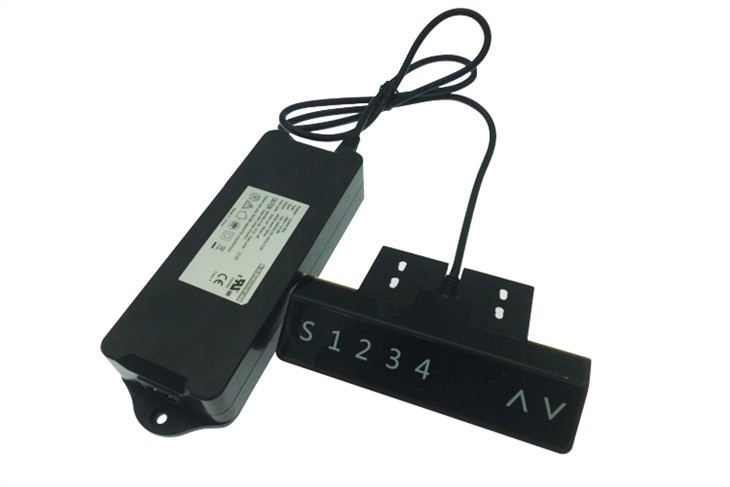

This Hand Control belongs to touch type hand control, holding an advantage of 7 buttons, able to memorize 4 different heights. So it's convenient to adjust the desk to meet your various needs. Pressing upward or downward button, you can get your desk up or down at your will. Pressing button S then button No.1, button No.1 will memorize the present height, so pressing No.1, the desk will return to the height you saved. Buttons of No.2,3 ,4 are the same. Whenever pressing button S and a button marked number, the memory will be refreshed.
Types of standing desk control box:
Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. The dual-motor controller can also be divided into two kinds: dual-motor controller with 2 sockets on single side and dual-motor controller with 2 sockets on two sides . Products can also be customized according to users’ needs.
Besides, Jingshi company produces matching hand controls and accessories, including motors, rechargeable battery packs, bluetooth, adapters and cables.
Company related introduction:
Changxing Jingshi Technology manufactures Autonomous Lift Desk Control Box.
In the year of 2014, Jingshi Technology started to provide our clients with tailored control system of adjustable desks, serving clients in a point-to-point way.
The year of 2017 saw Hangzhou Jingshi Technology was established, and the year of 2018 witnessed Changxing Jingshi Technology was established. On the basis of 6-year technical expertise, we have successfully innovated 3 generations of control systems that feature small size, full voltage and high power. The excellent functions and stability have earned solid reputation for Jingshi Technology. In the years to come, our company will proceed to work on the R&D and break through the current industry bottleneck.
