Bluetooth Smart Desk Control System

5 0 Reviews
1-motor control box product description of Bluetooth Smart Desk Control System · JSM-1.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables · Equipped with a bounce back function to ensure the safe operation of the lift table · With slow start and slow stop functions ·...
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Product Introduction

1-motor control box

product description of Bluetooth Smart Desk Control System

· JSM-1.1-0.3W is an energy-saving control box, suitable for multi-seat lift tables

· Equipped with a bounce back function to ensure the safe operation of the lift table

· With slow start and slow stop functions

· 0.3W ultra-low standby power consumption

 wholesale lifting desk control box

Features

Number of control columns: 1-2

Colour: Black

Shell: ABS material

Installation method: can be fixed on the desktop board by screws

Product parameters

Input voltage

100-240V

Maximum power

150W

Standby power consumption

0.3W

size

166×66×33mm

weight

0.28kg

Product solutions

MOS scheme

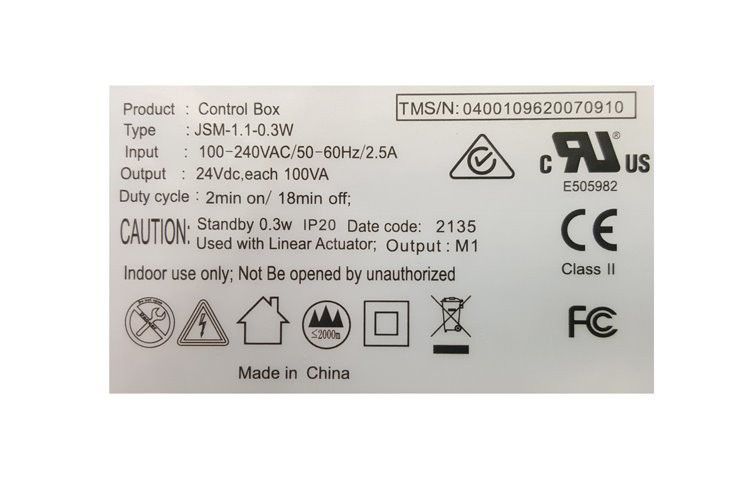

control box label

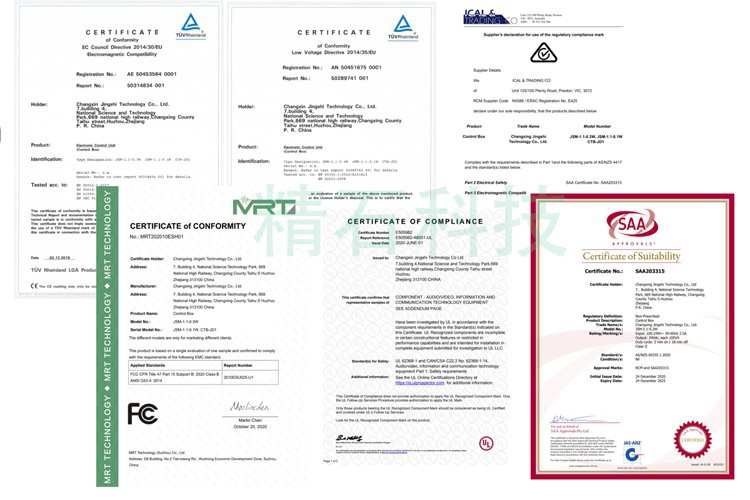

Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.

China standing desk control box certificates 1

Selling points of Bluetooth Smart Desk Control System

1. Infineon chips imported from Germany

2. The running distance is accurate to 1mm

3. 100% simultaneity, 10,000 operations, 0 error on 2 columns

4. Low standby power consumption, less than 0.3W

5. Adopt the cutting-edge MOS conductor scheme

6. Able to support the speed of 60mm per second

7. Low noise

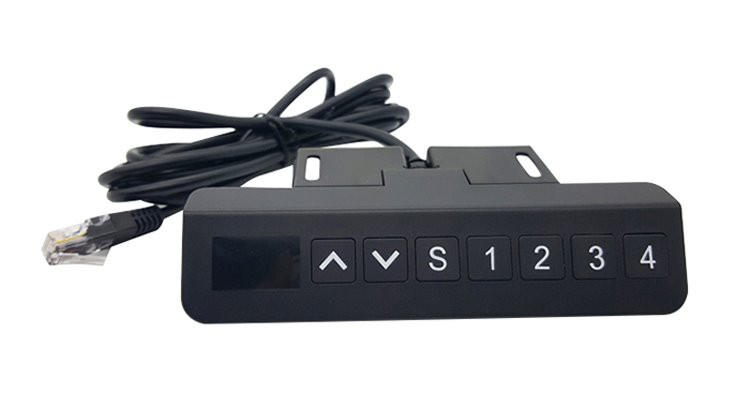

wholesale switch panel 7-key USB

The Standing Desk Hand Control panel holds an advantage of 7 buttons, able to set 4 different heights in memory. The screen will automatically show you real-time height, making it much easier to adjust your desk to suitable height.

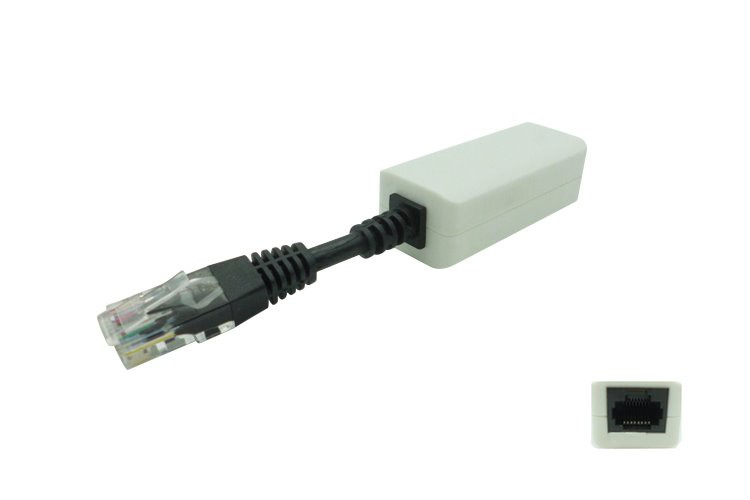

cheap standing desk Bluetooth

The Bluetooth is external Bluetooth. For Android phones, scan the QR code to download the APP. For Apple phones, search for Electric lift table in the app store to download the APP. After connecting the device, the lifting table can be controlled by the mobile phone. The lift table can be controlled on mobile phone within 50m. According to requirements, Bluetooth can also be installed inside the controller box.

QR code of external Bluetooth

Types of standing desk control box:

wholesale standing desk control boxes

Jingshi produces single-motor controllers, dual-motor controllers, three-motor controllers and four-motor controllers. The dual-motor controller can also be divided into two kinds: dual-motor controller with 2 sockets on single side and dual-motor controller with 2 sockets on two sides. Products can also be customized according to users’ needs.

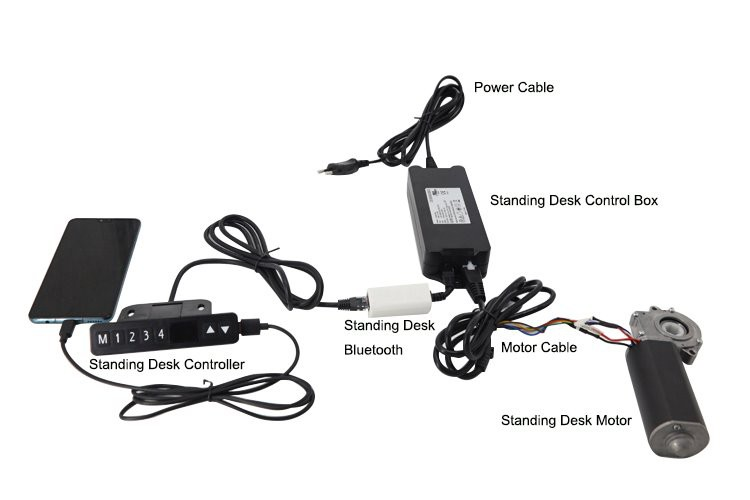

lifting desk control supplier

Applications:

Lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.

China control box application

Comparison of three generations of control boxes made by JS Technology

products

1st generation

2nd generation

3rd generation

Drive way

Mos+ Relay

Mos

Mos

EMC

Pass

Pass

Pass

Battery interface

Have

No

Have

modify parameters on PC

Support

Support

Support

Desktop auto balance

No

Have

Have

protection

Motor open circuit,

 Hall fault,

motor short circuit,

low voltage,

illegal power-off,

illegal plugging and unplugging,

anti-pinch

Motor open circuit, Hall fault,

motor short circuit, low voltage,

illegal power-off, illegal plugging and unplugging,

desktop tilt angle being too large,

top and bottom anti-pinch

Motor open circuit, Hall fault,

motor short circuit, low voltage,

illegal power-off, illegal plugging and unplugging,

desktop tilt angle being too large,

top and bottom anti-pinch
