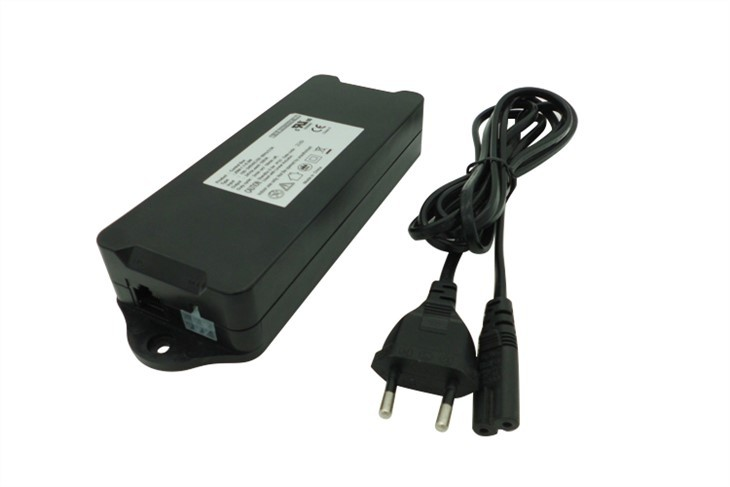

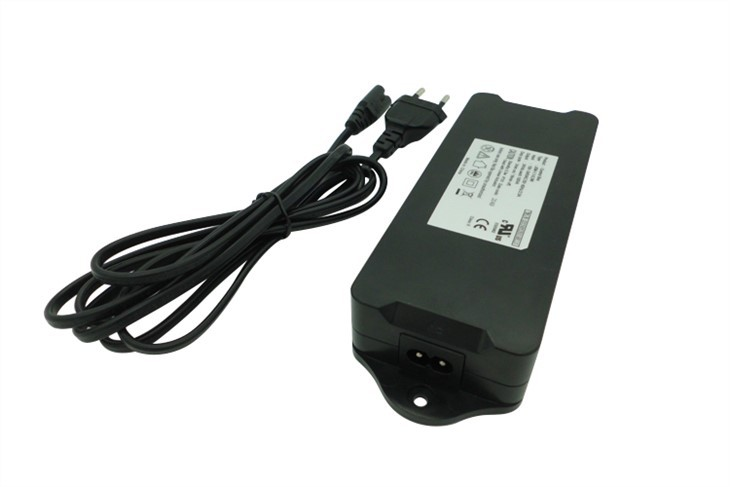

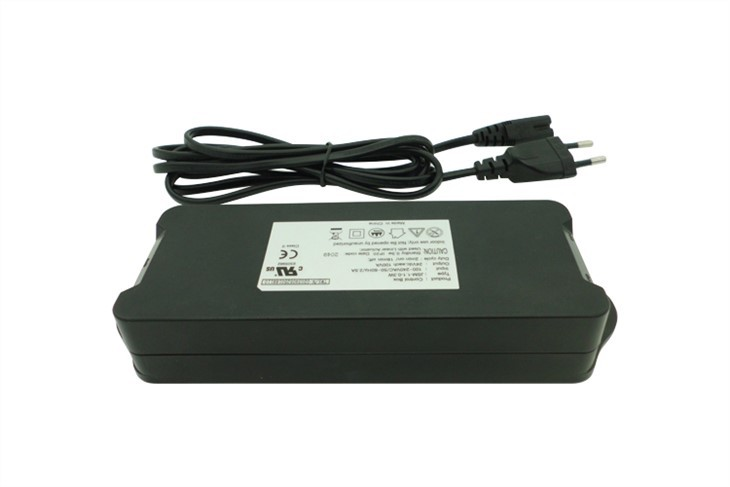

Basic description of Control Box for Electric Standing Desk
Maximum power: 150W
Standby power consumption: <0.3W
Duty cycle: 2min ON/18min OFF
Product scheme: MOS conductor
Certificates: CE-EMC, CE-LVD, UL, FCC, SAA, RCM, etc.
Selling points of Control Box of Desks That Lift Up and Down
1. Infineon chips imported from Germany
2. The running distance is accurate to 1mm
3. 100% simultaneity, 10,000 operations, 0 error on 2 columns
4. Low standby power consumption, less than 0.3W
5. Adopt the cutting-edge MOS conductor scheme
6. Control Box of Desks That Lift Up and Down is able to support the speed of 60mm per second
7. Low noise
Parameters of Europe Power Cable
1. Rated voltage: 250VAC
2. Rated current: 2.5A
3. Plug type: VDE
4. Connector type: IEC C7
5. Wire core size: 2*0.75mm
6. Material used: H03VVH02-F
7. Wire temperature resistance: 105
Advantages of Europe Power Cable:
1. Products are secure and environment friendly
2. It can resist high temperature with no leakage
3. Made of pure copper wires, it does not generate heat
4. Quality is always ensured
Types of standing desk control box we produce:
Applications:
Control Box of Desks That Lift Up and Down is applicable to lifting table, massage chair, massage sofa, electric medical bed, electric leisure bed, smart home, voice recognition.
Unknown application areas:
The linear drive system can be customized and developed according to customer requirements.
